Toyota Camry (Jpp/Sed)

Production Aug 1993 - Aug 1996

Engine 5SFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

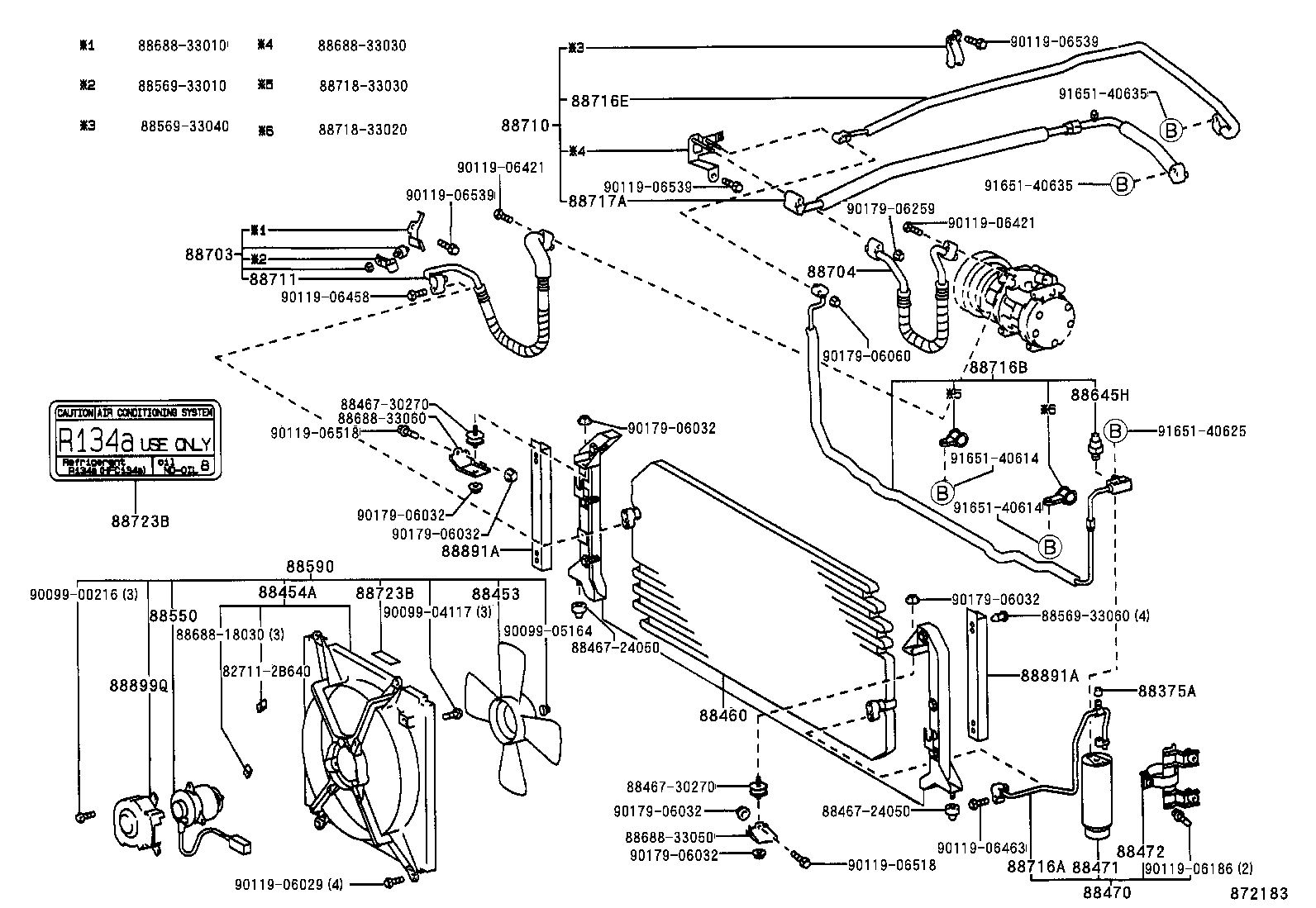

ILLUST NO. 1 OF 2(9208-9408)SXV10..JPP..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-20010	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88453 - FAN, COOLING (FOR CONDENSER)
88453-33010	SXV1#..JPP	08/1992 - 12/2999	1
88454A - SHROUD, FAN
88454-33010	SXV1#..JPP	08/1992 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-33010	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-33010	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-50010	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-33010	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88473-33030	SXV1#,VCV10..JPP	08/1993 - 08/1994	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-33010	SXV1#..JPP	08/1992 - 12/2999	1
88590 - BLOWER ASSY, W/SHROUD
88590-33011	SXV1#..JPP	08/1993 - 12/2999	1
88590-33010	SXV1#..JPP	08/1992 - 08/1993	1
88645H - SWITCH, PRESSURE NO.1
88645-20040	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-33080	SXV10..JPP..LHD	08/1993 - 08/1996	1
88704 - HOSE SUB-ASSY, SUCTION
88704-33090	SXV10..JPP..LHD	08/1993 - 08/1996	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-33060	SXV10,VCV10..JPP..LHD	08/1993 - 08/1996	1
88710-33040	SXV10,VCV10..JPP..LHD	08/1992 - 08/1993	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-33050	SXV10..JPP..LHD	08/1993 - 08/1996	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-33040	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-33030	SXV10,VCV10..JPP..LHD	08/1992 - 08/1993	1
88716-33110	SXV10,VCV10..JPP..LHD	08/1993 - 08/1996	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-33100	SXV10,VCV10..JPP..LHD	08/1993 - 08/1996	1
88716-33020	SXV10,VCV10..JPP..LHD	08/1992 - 08/1993	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-33020	SXV10,VCV10..JPP..LHD	08/1992 - 08/1993	1
88717-33080	SXV10,VCV10..JPP..LHD	08/1993 - 08/1996	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-14010	SXV1#,VCV10..JPP E/G HOOD	08/1993 - 08/1994	1
88723-12100	SXV1#..JPP SHROUD FAN	08/1993 - 08/1994	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-14010	SXV1#,VCV10..JPP E/G HOOD	08/1993 - 08/1994	1
88723-12100	SXV1#..JPP SHROUD FAN	08/1993 - 08/1994	1
88899Q - PLATE, COVER
88899-33020	SXV1#..JPP	04/1996 - 12/2999	1
Common parts
82711-2B640
88467-24050
88467-30270
88569-33010
88569-33040
88569-33060
88688-18030
88688-33010
88688-33030
88688-33050
88688-33060
88718-33020
88718-33030
90099-00216
90099-04117
90099-05164
90119-06029
90119-06186
90119-06421
90119-06458
90119-06463
90119-06518
90119-06539
90179-06032
90179-06060
90179-06259
91651-40614
91651-40625
91651-40635

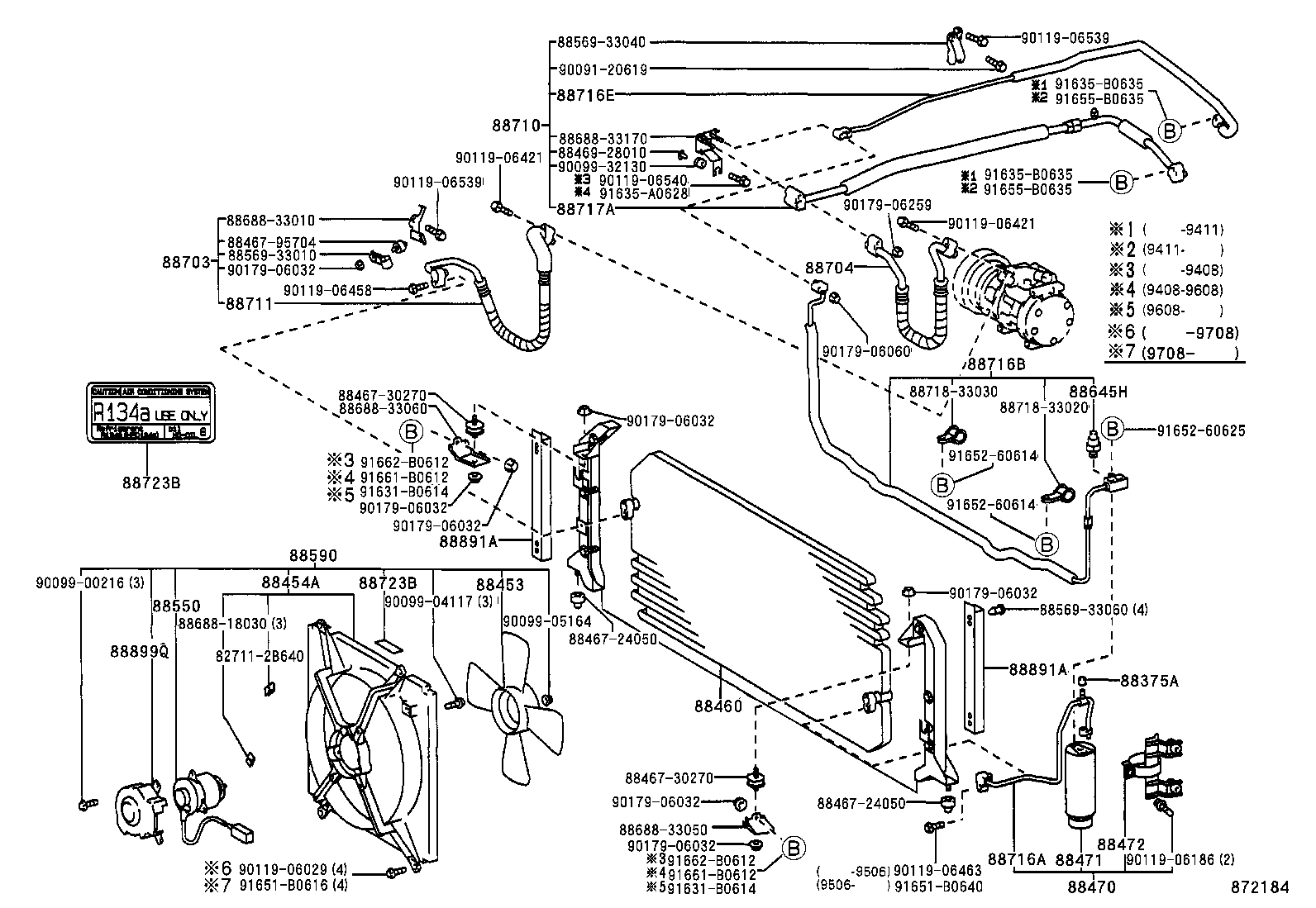

ILLUST NO. 1 OF 2(9408- )SXV10..JPP..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-20010	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88453 - FAN, COOLING (FOR CONDENSER)
88453-33010	SXV1#..JPP	08/1992 - 12/2999	1
88454A - SHROUD, FAN
88454-33010	SXV1#..JPP	08/1992 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-33010	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-33010	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-50010	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-33010	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88473-33030	SXV1#,VCV10..JPP	08/1993 - 08/1994	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-33010	SXV1#..JPP	08/1992 - 12/2999	1
88590 - BLOWER ASSY, W/SHROUD
88590-33011	SXV1#..JPP	08/1993 - 12/2999	1
88590-33010	SXV1#..JPP	08/1992 - 08/1993	1
88645H - SWITCH, PRESSURE NO.1
88645-20040	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-33080	SXV10..JPP..LHD	08/1993 - 08/1996	1
88704 - HOSE SUB-ASSY, SUCTION
88704-33090	SXV10..JPP..LHD	08/1993 - 08/1996	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-33060	SXV10,VCV10..JPP..LHD	08/1993 - 08/1996	1
88710-33040	SXV10,VCV10..JPP..LHD	08/1992 - 08/1993	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-33050	SXV10..JPP..LHD	08/1993 - 08/1996	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-33040	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-33030	SXV10,VCV10..JPP..LHD	08/1992 - 08/1993	1
88716-33110	SXV10,VCV10..JPP..LHD	08/1993 - 08/1996	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-33100	SXV10,VCV10..JPP..LHD	08/1993 - 08/1996	1
88716-33020	SXV10,VCV10..JPP..LHD	08/1992 - 08/1993	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-33020	SXV10,VCV10..JPP..LHD	08/1992 - 08/1993	1
88717-33080	SXV10,VCV10..JPP..LHD	08/1993 - 08/1996	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-14010	SXV1#,VCV10..JPP E/G HOOD	08/1993 - 08/1994	1
88723-12100	SXV1#..JPP SHROUD FAN	08/1993 - 08/1994	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-14010	SXV1#,VCV10..JPP E/G HOOD	08/1993 - 08/1994	1
88723-12100	SXV1#..JPP SHROUD FAN	08/1993 - 08/1994	1
88899Q - PLATE, COVER
88899-33020	SXV1#..JPP	04/1996 - 12/2999	1
Common parts
82711-2B640
88467-24050
88467-30270
88467-95704
88469-28010
88569-33010
88569-33040
88569-33060
88688-18030
88688-33010
88688-33050
88688-33060
88688-33170
88718-33020
88718-33030
90091-20619
90099-00216
90099-04117
90099-05164
90099-32130
90119-06029
90119-06186
90119-06421
90119-06458
90119-06463
90119-06539
90119-06540
90179-06032
90179-06060
90179-06259
91631-B0614
91635-A0628
91635-B0635
91651-B0616
91651-B0640
91652-60614
91652-60625
91655-B0635
91661-B0612
91662-B0612

SXV10L-AEPDKV (1993)

ILLUST NO. 1 OF 2(9208-9408)SXV10..JPP..LHD

ILLUST NO. 1 OF 2(9408- )SXV10..JPP..LHD
