AHV41L-JEXGBC (2010)

Toyota Camry (China)

Production Mar 2010 - Dec 2011
Engine 3AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

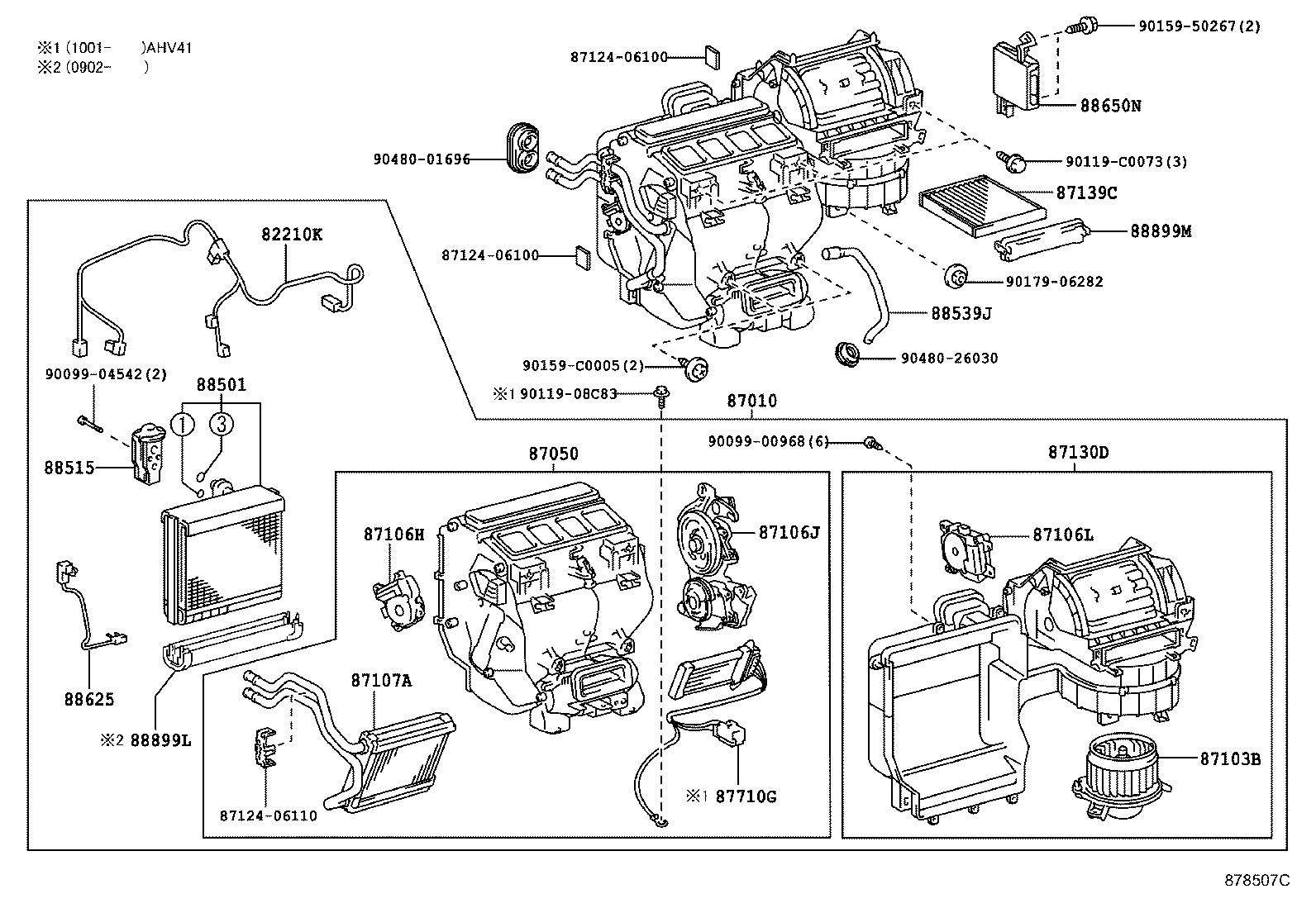

ILLUST NO. 1 OF 2(0605- )

Click highlighted areas on diagram

diagram 82210K 87010 87050 87103B 87106H 87106J 87106L 87107A 8712406100 8712406100 8712406110 87130D 87139C 87710G 88501 88515 88539J 88625 88650N 88899L 88899M 9009900968 9009904542 9011908C83 90119C0073 9015950267 90159C0005 9017906282 9048001696 9048026030
Part # Description Qty Price
87010 - UNIT ASSY, AIR CONDITIONER
87010-06610

AHV41

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-06550

AHV41

 1
87710G - QUICK HEATER ASSY
87710-06020

AHV41

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-06360

AHV41

 1
88501-06121

AHV41

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-06410

AHV41

240V

 1
88650-06460

AHV41

 1
Common parts
87124-06100
87124-06110
90099-00968
90099-04542
90119-08C83
90119-C0073
90159-50267
90159-C0005
90179-06282
90480-01696
90480-26030

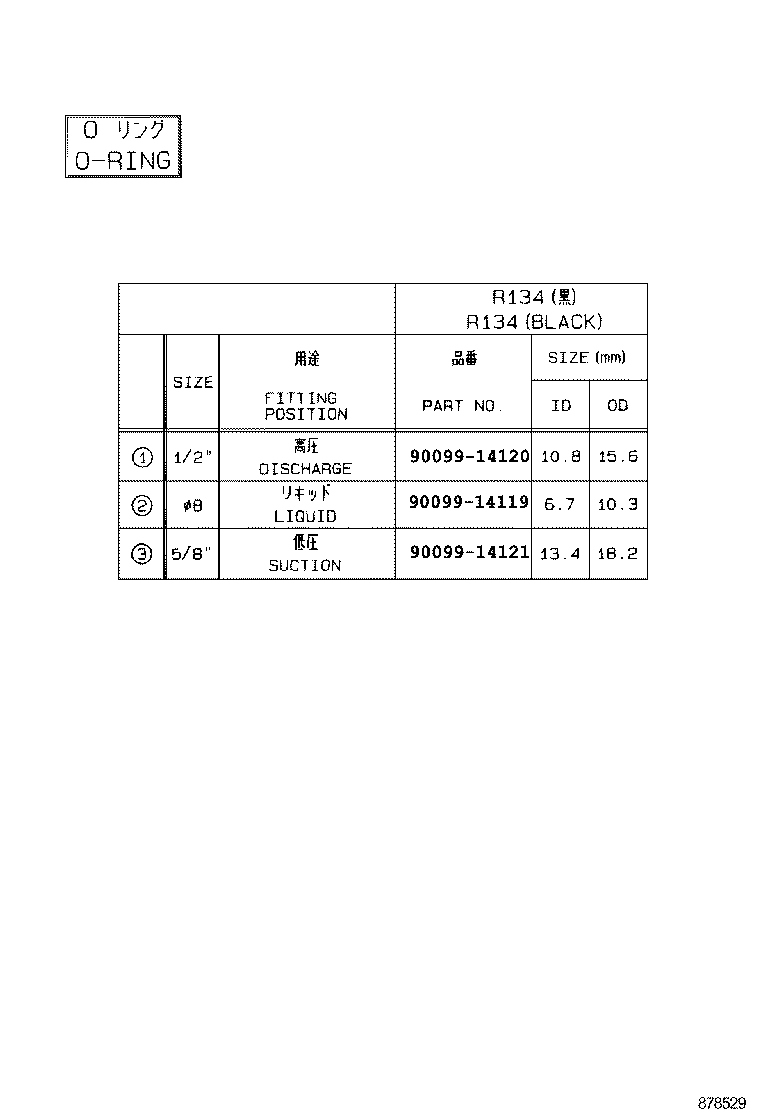

ILLUST NO. 2 OF 2(0605- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
