AHV41L-JEXGBC (2010)

Toyota Camry (China)

Production Mar 2010 - Dec 2011
Engine 3AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0605- )

Click highlighted areas on diagram

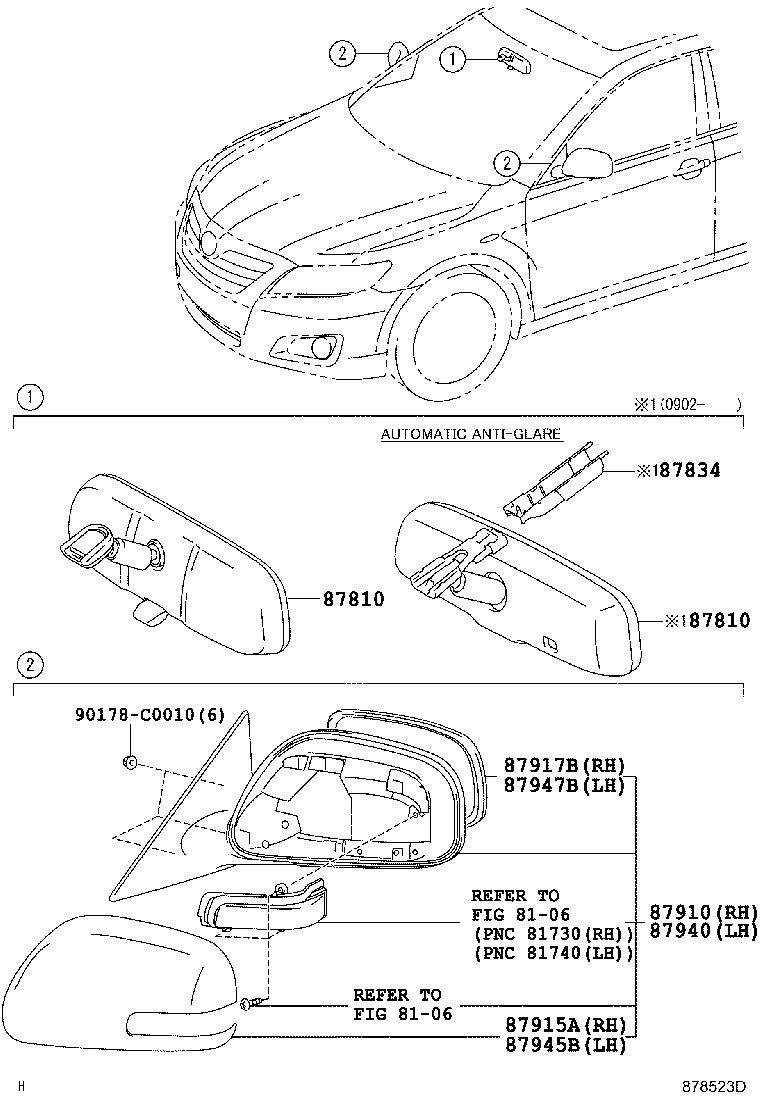

diagram 8106 8106 87810 87810 87834 87910 87915A 87917B 87940 87945B 87947B 90178C0010
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-06071

AHV41

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-06071

AHV41

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87818-33010

AHV41

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-06390B0

AHV41

240V,SILVER ME.,1D4

 1
87910-06390C0

AHV41

240V,BLACK,202

 1
87910-06390E0

AHV41

240V,BEIGE ME.,4T8

 1
87910-06390B1

AHV41

240V,GRAY ME.,1G3

 1
87910-06390J1

AHV41

240V,LIGHT BLUE MICA METALLIC,8U8

 1
87910-06390A0

AHV41

240V,WHITE PEARL CS.,070

 1
87910-06322J2

AHV41

LIGHT BLUE MICA METALLIC,8U8

 1
87910-06390J0

AHV41

240V,DK.BLUE MC.,8S6

 1
87917B - MIRROR, OUTER REAR VIEW, RH
87931-06390

AHV41

240V

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-06390C0

AHV41

240V,BLACK,202

 1
87940-06390A0

AHV41

240V,WHITE PEARL CS.,070

 1
87940-06390B1

AHV41

240V,GRAY ME.,1G3

 1
87940-06390J1

AHV41

240V,LIGHT BLUE MICA METALLIC,8U8

 1
87940-06322J2

AHV41

LIGHT BLUE MICA METALLIC,8U8

 1
87940-06390E0

AHV41

240V,BEIGE ME.,4T8

 1
87940-06390B0

AHV41

240V,SILVER ME.,1D4

 1
87940-06390J0

AHV41

240V,DK.BLUE MC.,8S6

 1
87947B - MIRROR, OUTER REAR VIEW, LH
87961-06390

AHV41

240V

 1
Common parts
90178-C0010
Linked diagrams
8106
