AHV41L-JEXGBC (2010)

Toyota Camry (China)

Production Mar 2010 - Dec 2011
Engine 3AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0605- )200E,240G,HBD

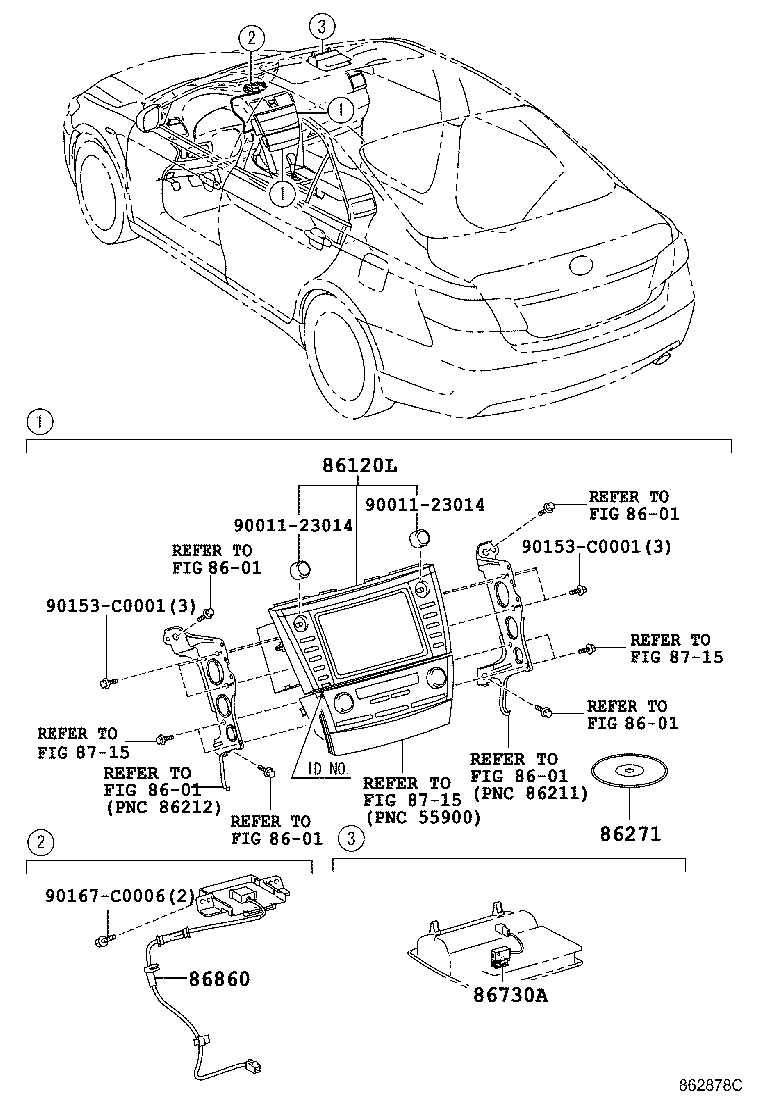

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 8601 8601 86120L 86271 86730A 86860 8715 8715 8715 9001123014 9001123014 90153C0001 90153C0001 90167C0006
Part # Description Qty Price
86120L - RECEIVER ASSY, NAVIGATION
86100-YY021

AHV41

DENSO,ID=E8015,240V&NAVI PACKAGE&G-BOOK-WITH

 1
86100-YY024

AHV41

DENSO,240V&NAVI PACKAGE&G-BOOK-WITH

 1
86100-YY022

AHV41

DENSO,ID=E8015,240V&NAVI PACKAGE&G-BOOK-WITH

 1
86100-YY023

AHV41

DENSO,ID=E8015,240V&NAVI PACKAGE&G-BOOK-WITH

 1
86100-YY025

AHV41

DENSO,240V&NAVI PACKAGE&G-BOOK-WITH

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-33080

AHV41

240V&NAVI PACKAGE&G-BOOK-WITH

 1
86860 - ANTENNA ASSY, NAVIGATION
86870-YY010

AHV41

240V&NAVI PACKAGE&G-BOOK-WITH

 1
Common parts
90011-23014
90153-C0001
90167-C0006
Linked diagrams
8601
8715
