AHV41L-JEXGBC (2010)

Toyota Camry (China)

Production Mar 2010 - Dec 2011
Engine 3AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0605- )

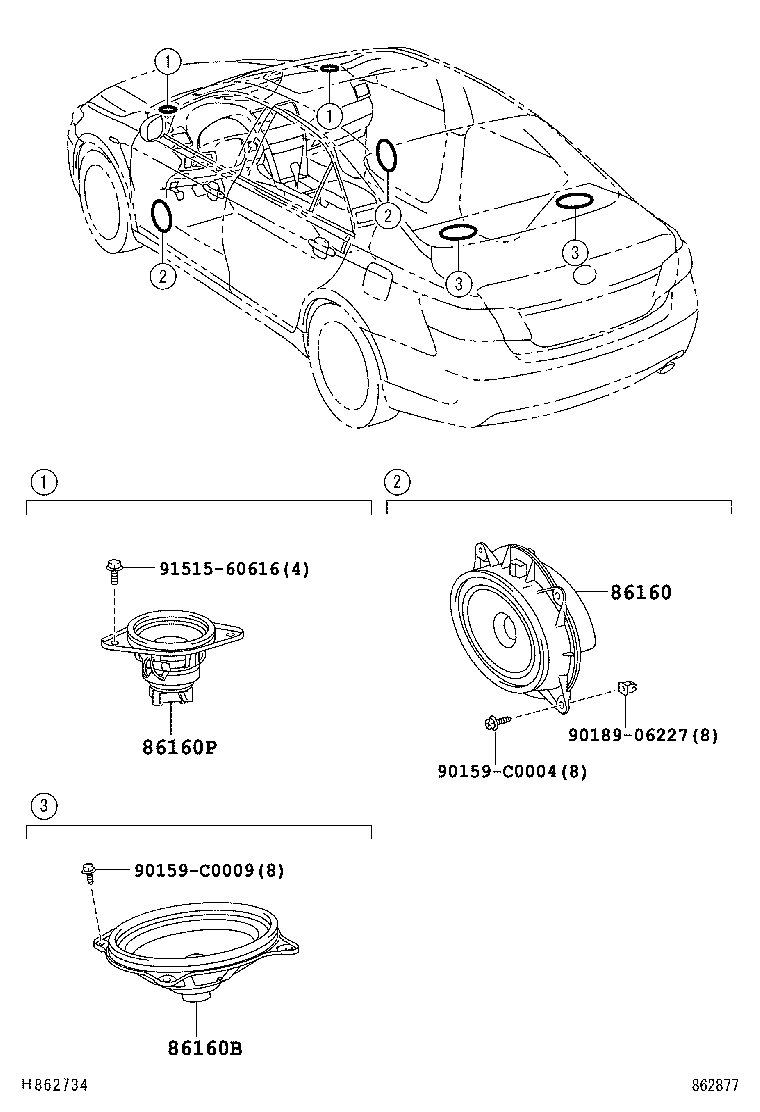

Click highlighted areas on diagram

diagram 86160 86160B 86160P 90159C0004 90159C0009 9018906227 9151560616
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-06640

AHV41

240V&NAVI PACKAGE&G-BOOK-WITH

 2
86160B - SPEAKER ASSY, REAR
86160-06650

AHV41

240V&NAVI PACKAGE&G-BOOK-WITH

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-06630

AHV41

240V&NAVI PACKAGE&G-BOOK-WITH

 2
Common parts
90159-C0004
90159-C0009
90189-06227
91515-60616
