AHV41L-JEXGBC (2010)
Toyota Camry (China)
Production
Mar 2010
-
Dec 2011
Engine
3AZFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1003- )AHV41

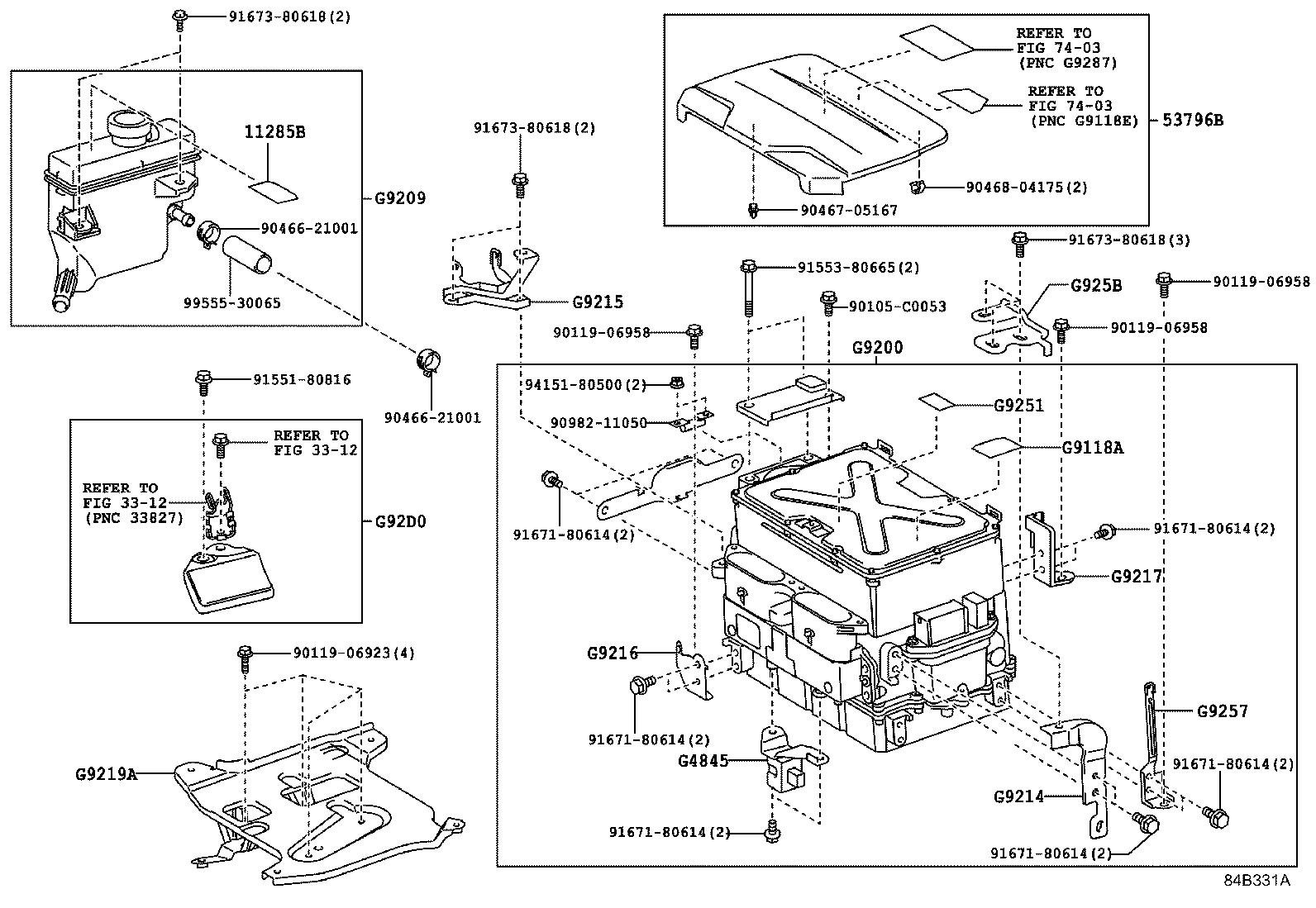

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11285B - LABEL, COOLANT SYSTEM NOTICE | ||||
| 11285-31010 |
3AZFXE..AHV41 |
1 | ||
| 53796B - COVER, ENGINE ROOM SIDE, LH NO.2 | ||||
| 51470-33020 |
AHV41 |
1 | ||
| G4845 - SENSOR, CIRCUIT BREAKER, NO.1 | ||||
| G4845-33010 |
AHV41 |
1 | ||
| G9118A - LABEL, HV MOTOR CONTROL INVERTER CAUTION | ||||
| G9118-30020 |
AHV41 |
1 | ||
| G9200 - INVERTER ASSY, W/CONVERTER | ||||
| G9200-33100 |
AHV41 |
1 | ||
| G9209 - TANK SUB-ASSY, INVERTER RESERVE | ||||
| G9209-33010 |
AHV41 |
1 | ||
| G9214 - BRACKET, INVERTER, NO.1 | ||||
| G9214-33010 |
AHV41 |
1 | ||
| G9215 - BRACKET, INVERTER, NO.2 | ||||
| G9215-33010 |
AHV41 |
1 | ||
| G9216 - BRACKET, INVERTER, NO.3 | ||||
| G9216-33010 |
AHV41 |
1 | ||
| G9217 - BRACKET, INVERTER, NO.4 | ||||
| G9217-33010 |
AHV41 |
1 | ||
| G9219A - BRACKET, INVERTER TRAY | ||||
| G9219-33020 |
AHV41 |
1 | ||
| G9251 - SEAT, INVERTER NAME | ||||
| G9251-47010 |
AHV41 |
1 | ||
| G9257 - BRACKET, INVERTER, NO.5 | ||||
| G9257-33011 |
AHV41 |
1 | ||
| G925B - BRACKET, INVERTER, NO.6 | ||||
| G925B-33020 |
AHV41 |
1 | ||
| G92D0 - PROTECTOR ASSY, HYBRID INVERTER | ||||
| G92D0-33010 |
AHV41 |
1 | ||
| Common parts | ||||
| 90105-C0053 | ||||
| 90119-06923 | ||||
| 90119-06958 | ||||
| 90466-21001 | ||||
| 90467-05167 | ||||
| 90468-04175 | ||||
| 90982-11050 | ||||
| 91551-80816 | ||||
| 91553-80665 | ||||
| 91671-80614 | ||||
| 91673-80618 | ||||
| 94151-80500 | ||||
| 99555-30065 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 7403 | ||||
