AHV41L-JEXGBC (2010)
Toyota Camry (China)
Production
Mar 2010
-
Dec 2011
Engine
3AZFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0605- )

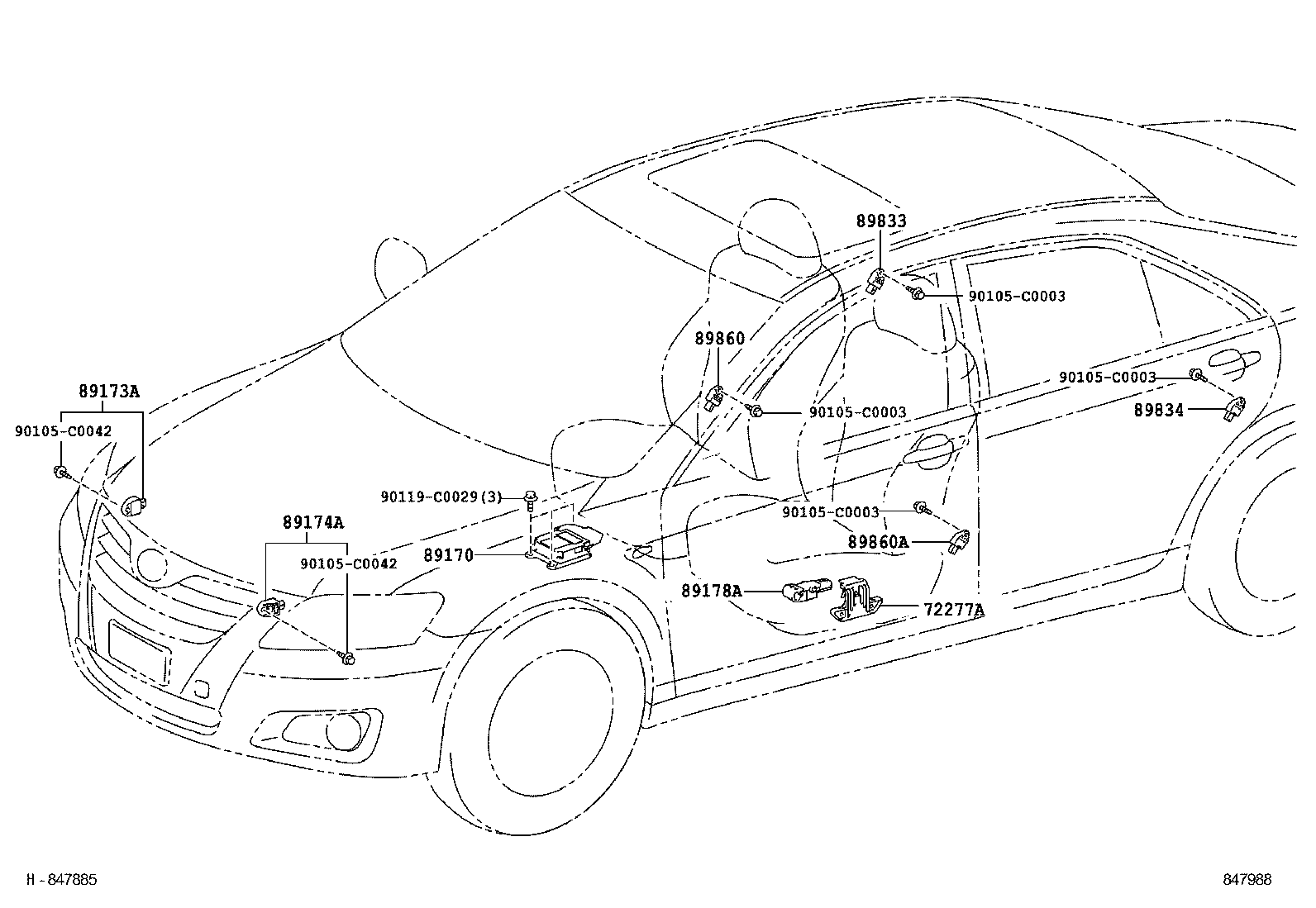

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89170 - SENSOR ASSY, AIR BAG | ||||
| 89170-06370 |
AHV41 |
1 | ||
| 89173A - SENSOR, AIR BAG, FRONT RH | ||||
| 89173-39365 |
AHV41 |
1 | ||
| 89173-09800 |
AHV41 |
1 | ||
| 89174A - SENSOR, AIR BAG, FRONT LH | ||||
| 89173-39365 |
AHV41 |
1 | ||
| 89173-09800 |
AHV41 |
1 | ||
| 89833 - SENSOR, AIR BAG, REAR RH | ||||
| 89831-33030 |
AHV41 |
1 | ||
| 89831-0R060 |
AHV41 |
1 | ||
| 89834 - SENSOR, AIR BAG, REAR LH | ||||
| 89831-0R060 |
AHV41 |
1 | ||
| 89831-33030 |
AHV41 |
1 | ||
| 89860 - SENSOR ASSY, SIDE AIR BAG, RH | ||||
| 89831-28020 |
AHV41 |
1 | ||
| 89831-0R050 |
AHV41 |
1 | ||
| 89860A - SENSOR ASSY, SIDE AIR BAG, LH | ||||
| 89831-28020 |
AHV41 |
1 | ||
| 89831-0R050 |
AHV41 |
1 | ||
| Common parts | ||||
| 90105-C0003 | ||||
| 90105-C0042 | ||||
| 90119-C0029 | ||||
