AHV41L-JEXGBC (2010)
Toyota Camry (China)
Production
Mar 2010
-
Dec 2011
Engine
3AZFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0605- )240G,HBD

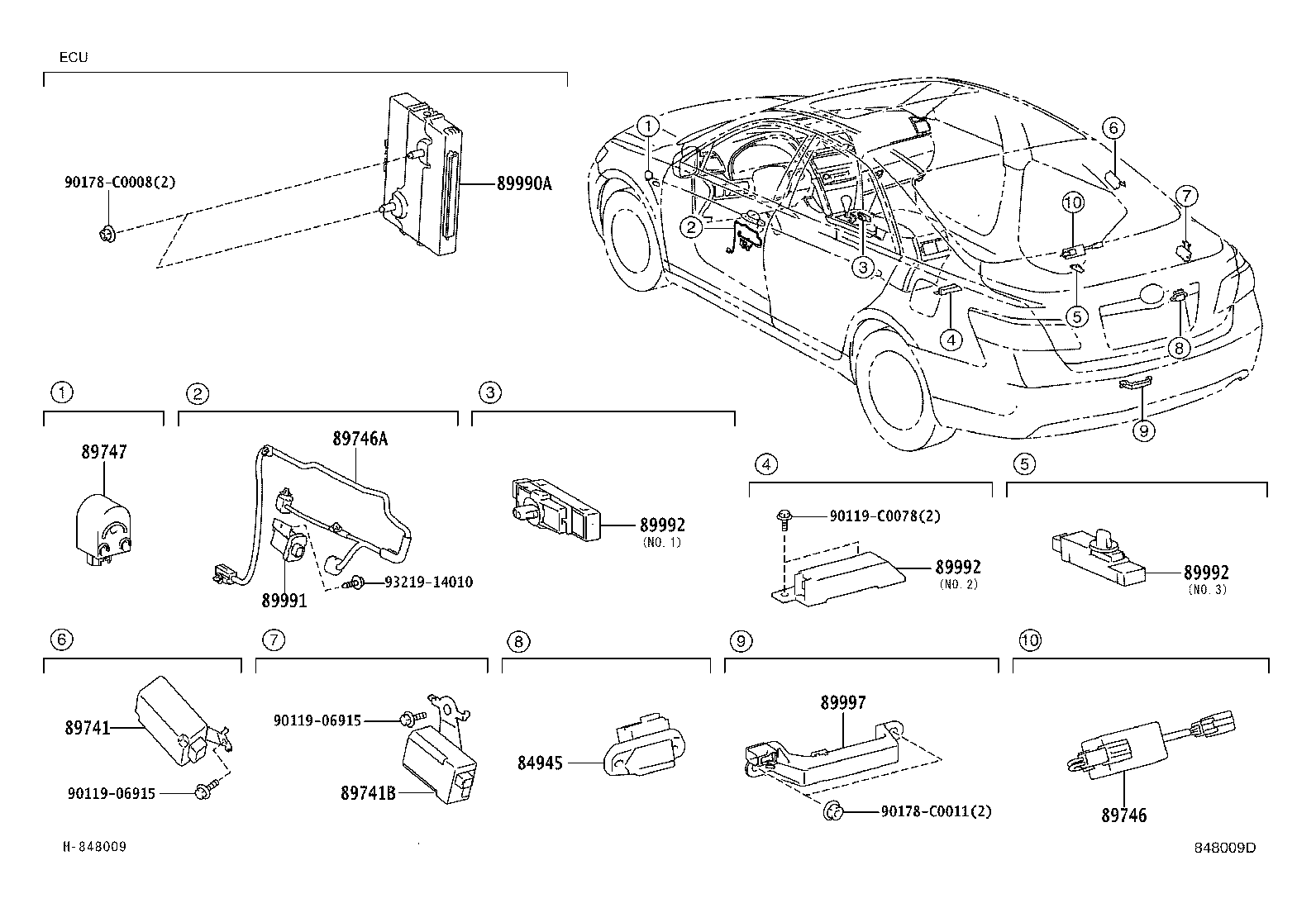

Click highlighted areas on diagram
W(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84945 - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84945-33010 |
AHV41 |
2 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89740-06011 |
AHV41 |
1 | ||
| 89746 - FILTER, WIRELESS DOOR LOCK | ||||
| 89746-33090 |
AHV41 |
2 | ||
| 89746A - HARNESS, ELECTRICAL KEY WIRE | ||||
| 89746-06040 |
AHV41 |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-48020 |
AHV41 |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-06061 |
ACV40,AHV41..240G,HBD |
1 | ||
| 89990-06060 |
AHV41 |
1 | ||
| 89991 - OSCILLATOR, DOOR ELECTRICAL KEY | ||||
| 89991-30040 |
AHV41 |
2 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-06070 |
AHV41 NO.3 |
1 | ||
| 89992-06060 |
AHV41 NO.2 |
1 | ||
| 89992-06050 |
AHV41 NO.1 |
1 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-06070 |
AHV41 NO.3 |
1 | ||
| 89992-06060 |
AHV41 NO.2 |
1 | ||
| 89992-06050 |
AHV41 NO.1 |
1 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-06070 |
AHV41 NO.3 |
1 | ||
| 89992-06060 |
AHV41 NO.2 |
1 | ||
| 89992-06050 |
AHV41 NO.1 |
1 | ||
| 89997 - ANTENNA, ELECTRICAL KEY | ||||
| 89997-41010 |
AHV41 |
1 | ||
| 89997-30070 |
ACV40,AHV41..240G,HBD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-C0078 | ||||
| 90178-C0008 | ||||
| 90178-C0011 | ||||
| 93219-14010 | ||||
