AHV41L-JEXGBC (2010)

Toyota Camry (China)

Production Mar 2010 - Dec 2011
Engine 3AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0605- )200E,240G,HBD

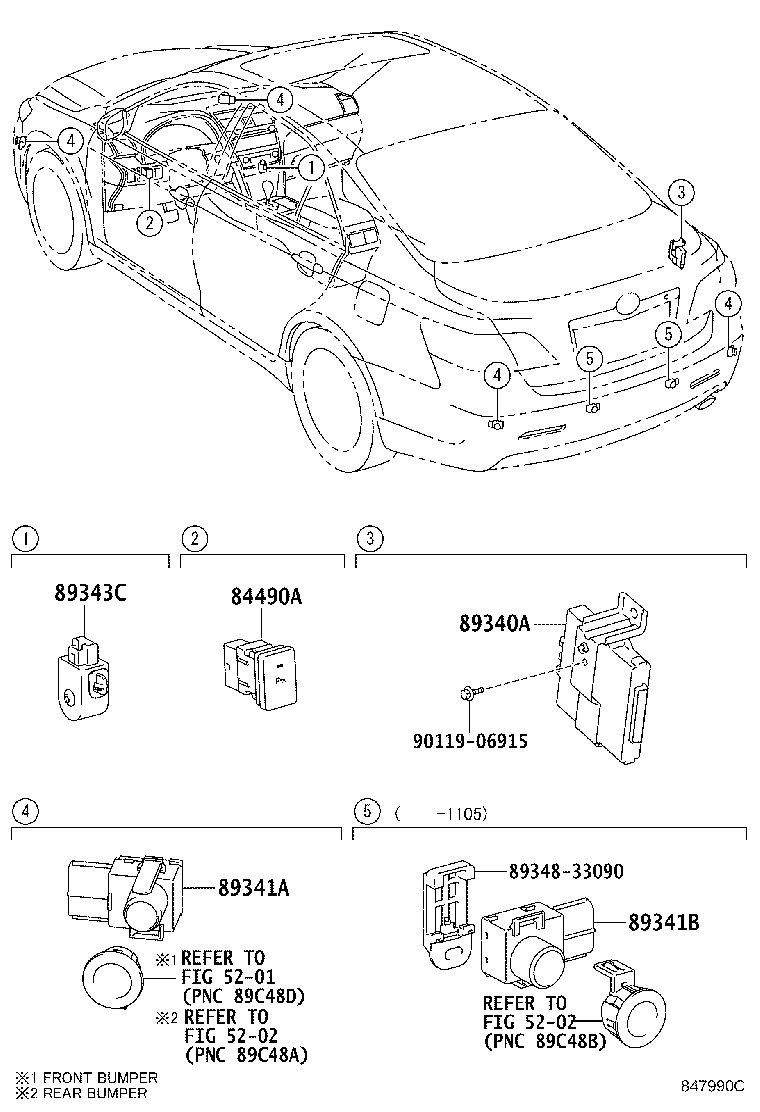

Click highlighted areas on diagram

diagram 5201 5202 5202 84490A 89340A 89341A 89341B 89343C 8934833090 9011906915
Part # Description Qty Price
89340A - COMPUTER ASSY, CLEARANCE WARNING
89340-06020

AHV41

 1
89341A - SENSOR, ULTRASONIC, NO.1
89341-06020B0

AHV41

SILVER ME.,1D4 ,4T8 ,8U8

 4
Common parts
89348-33090
90119-06915
Linked diagrams
5201
5202
