AHV41L-JEXGBC (2010)

Toyota Camry (China)

Production Mar 2010 - Dec 2011
Engine 3AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 6 OF 8(0605- )

Click highlighted areas on diagram

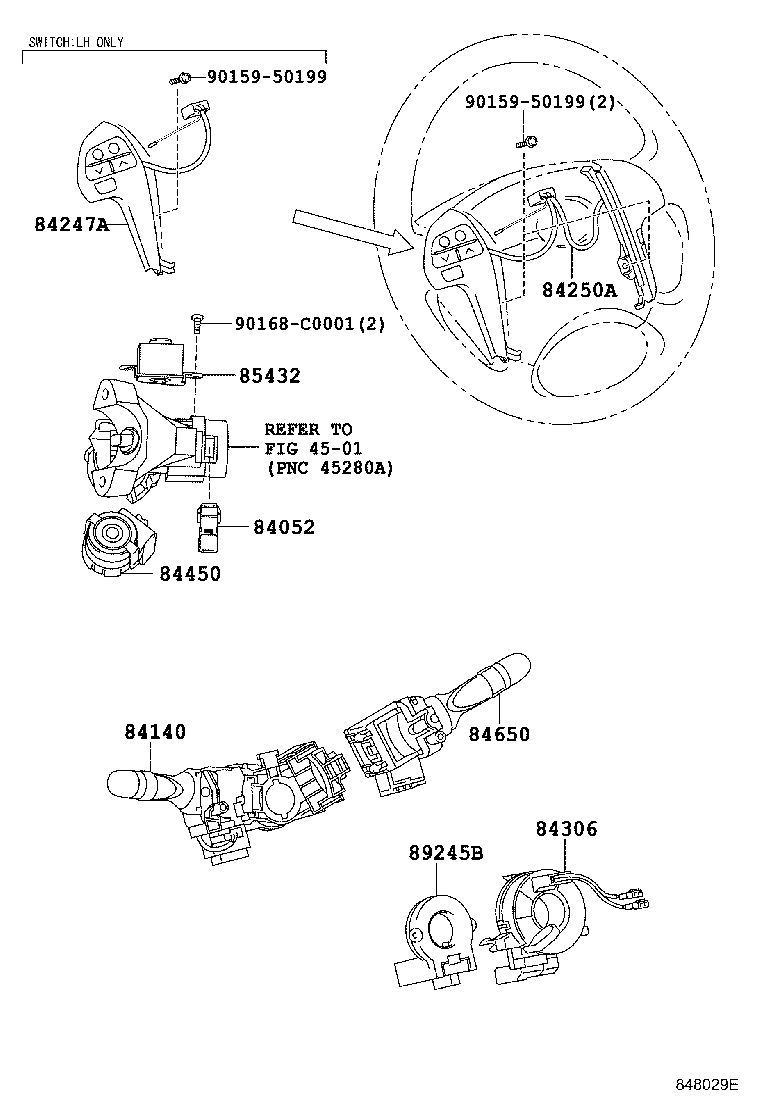

STEERING

diagram 4501 84052 84140 84247A 84250A 84306 84450 84650 85432 89245B 9015950199 9015950199 90168C0001
Part # Description Qty Price
84250A - SWITCH ASSY, STEERING PAD
84250-06180

AHV41

240V&NAVI PACKAGE&G-BOOK-WITH

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-06181

AHV41

 1
Common parts
90159-50199
90168-C0001
Linked diagrams
4501

ILLUST NO. 7 OF 8(0605- )

Click highlighted areas on diagram

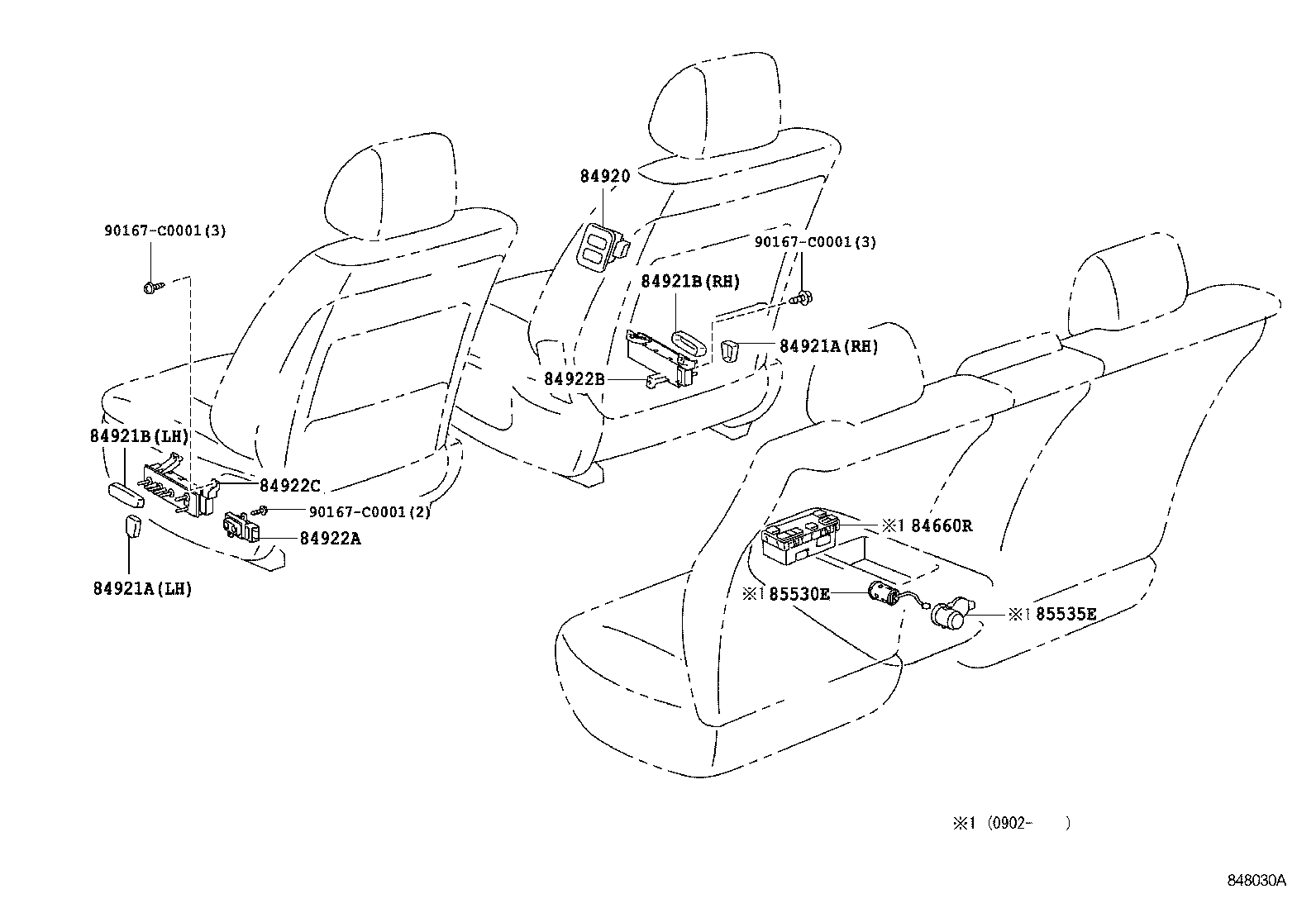

SEAT

diagram 84660R 84920 84921A 84921A 84921B 84921B 84922A 84922B 84922C 85530E 85535E 90167C0001 90167C0001 90167C0001
Part # Description Qty Price
84922C - SWITCH, FRONT POWER SEAT, LH
84070-33030

AHV41

240V

 1
Common parts
90167-C0001

ILLUST NO. 8 OF 8(0605- )

Click highlighted areas on diagram

DOOR,ROOF,FLOOR & LUGGAGE

diagram 82620D 83320 84233 84233 84234 84234 84810 84810D 84810D 84820 85911D 89407 9016440103 90178C0005 90178C0009 9090148003 9090148003 9090148003 9090148003 9418560600
Part # Description Qty Price
82620D - BLOCK ASSY, FUSIBLE LINK
82620-33040

AHV41

 1
83320 - GAGE ASSY, FUEL SENDER
83320-33130

AHV41

 1
Common parts
90164-40103
90178-C0005
90178-C0009
90901-48003
94185-60600

ILLUST NO. 1 OF 8(1003- )AHV41

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 82715 83530 8761642020 89465 89467B 89615 9012608039 9017908153
Part # Description Qty Price
82715 - BRACKET,WIRING HARNESS CLAMP
82715-33C20

AHV41

 1
89467B - SENSOR, AIR FUEL RATIO
89467-06090

AHV41

 1
Common parts
87616-42020
90126-08039
90179-08153

ILLUST NO. 2 OF 8(1003- )AHV41

Click highlighted areas on diagram

ENGINE ROOM

diagram 85942 89650 89658 9011906915 90119C0075 9017906288
Part # Description Qty Price
85942 - RELAY, HEADLAMP CLEANER CONTROL
85942-58010

ACV40,AHV41..240G,HBD

 1
89650 - COMPUTER ASSY, POWER STEERING
89650-33100

AHV41

 1
89658 - BRACKET, POWER STEERING COMPUTER
89658-33010

AHV41

 1
Common parts
90119-06915
90119-C0075
90179-06288

ILLUST NO. 3 OF 8(1003- )AHV41

Click highlighted areas on diagram

ENGINE ROOM RELAY BLOCK

diagram 16100P 28371C 81550T 82600F 82600F 82600F 82616 82620A 82620B 82660F 82660G 82661 82662A 82662B 82663 82663A 8271533A20 82720 82740 82743 82824L 82824L 8414 8414 8433 85912 85916L 85927 85927A 85927B 87130F 87346K 9011906915 9011906915 90119C0073 90119C0073
Part # Description Qty Price
16100P - RELAY, WATER PUMP
90987-02028

3AZFXE..AHV41

 1
81550T - RELAY, BACK UP LAMP
90987-T2005

AHV41

 1
82600F - FUSE, FUSE BLOCK
90982-09020

AHV41

7.5A,MINI FUSE,BROWN,240V,TYPE A:REFER ILLUST.

 1
90982-09025

AHV41

30A,MINI FUSE,GRN,240V,TYPE A:REFER ILLUST.

 1
90982-09022

AHV41

15A,MINI FUSE,BLUE,240V,TYPE A:REFER ILLUST.

 1
90982-09023

AHV41

20A,MINI FUSE,YELLOW,240V,TYPE A:REFER ILLUST.

 1
90982-09024

AHV41

25A,MINI FUSE,240V,TYPE A:REFER ILLUST.

 1
90982-09021

AHV41

10A,MINI FUSE,RED,240V,TYPE A:REFER ILLUST.

 1
82600F - FUSE, FUSE BLOCK
90982-09020

AHV41

7.5A,MINI FUSE,BROWN,240V,TYPE A:REFER ILLUST.

 1
90982-09025

AHV41

30A,MINI FUSE,GRN,240V,TYPE A:REFER ILLUST.

 1
90982-09022

AHV41

15A,MINI FUSE,BLUE,240V,TYPE A:REFER ILLUST.

 1
90982-09023

AHV41

20A,MINI FUSE,YELLOW,240V,TYPE A:REFER ILLUST.

 1
90982-09024

AHV41

25A,MINI FUSE,240V,TYPE A:REFER ILLUST.

 1
90982-09021

AHV41

10A,MINI FUSE,RED,240V,TYPE A:REFER ILLUST.

 1
82600F - FUSE, FUSE BLOCK
90982-09020

AHV41

7.5A,MINI FUSE,BROWN,240V,TYPE A:REFER ILLUST.

 1
90982-09025

AHV41

30A,MINI FUSE,GRN,240V,TYPE A:REFER ILLUST.

 1
90982-09022

AHV41

15A,MINI FUSE,BLUE,240V,TYPE A:REFER ILLUST.

 1
90982-09023

AHV41

20A,MINI FUSE,YELLOW,240V,TYPE A:REFER ILLUST.

 1
90982-09024

AHV41

25A,MINI FUSE,240V,TYPE A:REFER ILLUST.

 1
90982-09021

AHV41

10A,MINI FUSE,RED,240V,TYPE A:REFER ILLUST.

 1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-06120

AHV41

 1
82662B - COVER, RELAY BLOCK, UPPER, NO.2
82662-06130

AHV41

 1
82663A - COVER, RELAY BLOCK, LOWER, NO.2
82663-33090

AHV41

 1
82740 - BLOCK ASSY, ENGINE ROOM RELAY
82740-33010

AHV41

 1
82743 - BLOCK, ENGINE ROOM RELAY, NO.3
82743-33030

AHV41

 1
87130F - RELAY, BATTERY BLOWER, NO.1
90987-T2005

AHV41

 1
87346K - RELAY, PTC HEATER
90987-T2004

AHV41

 2
Common parts
82715-33A20
90119-06915
90119-C0073
Linked diagrams
8414
8433
