AHV41L-JEXGBC (2010)

Toyota Camry (China)

Production Mar 2010 - Dec 2011
Engine 3AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0605- )

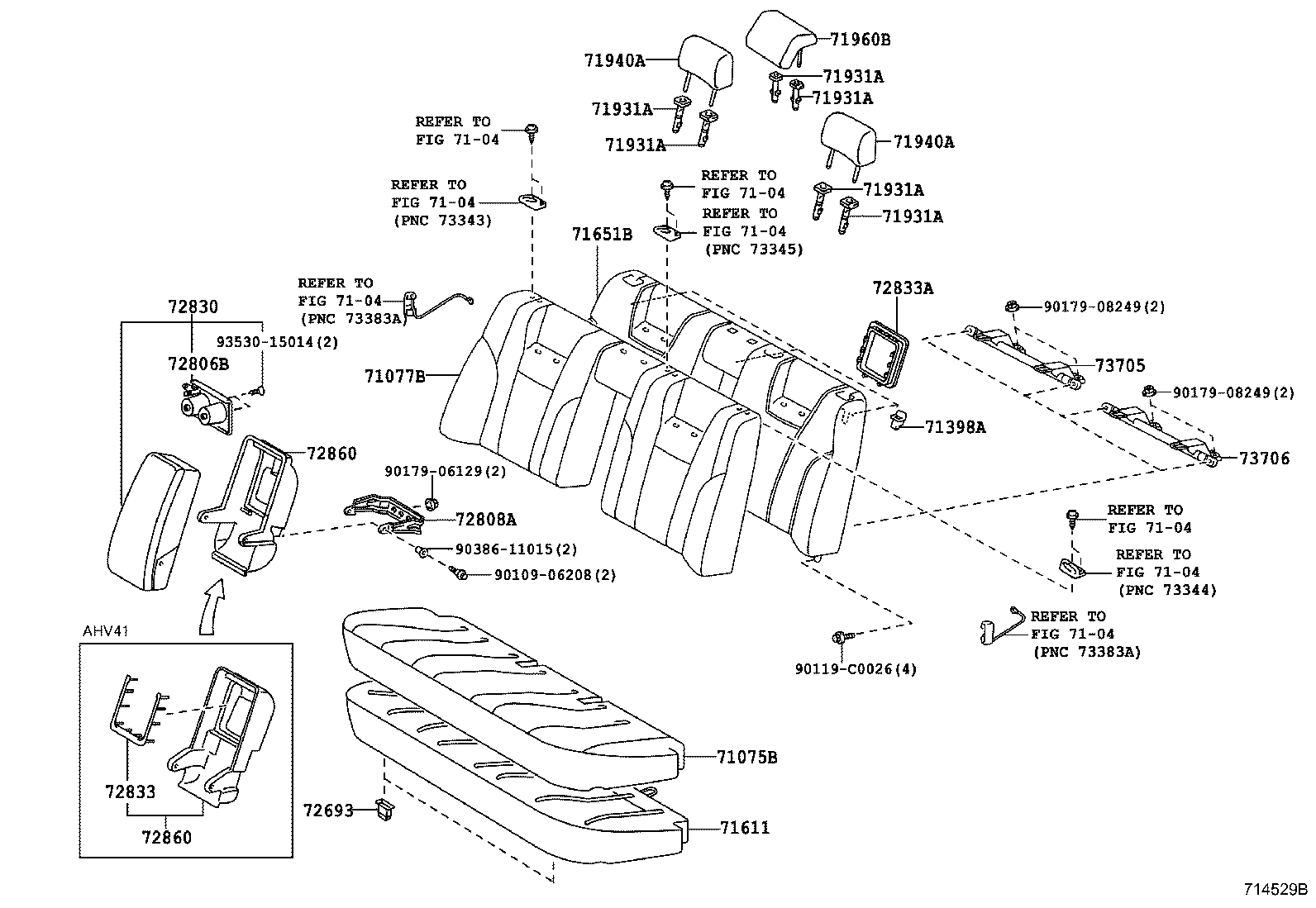

Click highlighted areas on diagram

diagram 7104 7104 7104 7104 7104 7104 7104 7104 71075B 71077B 71398A 71611 71651B 71931A 71931A 71931A 71931A 71931A 71931A 71940A 71940A 71960B 72693 72806B 72808A 72830 72833 72833A 72860 72860 73705 73706 9010906208 90119C0026 9017906129 9017908249 9017908249 9038611015 9353015014
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-06811E0

AHV41

GREGE,TRIM4#

 1
71075-06810E0

AHV41

GREGE,TRIM4#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-06A20E0

AHV41

GREGE,TRIM4#

 1
71611 - PAD, REAR SEAT CUSHION
71503-06200

AHV41

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-06240

AHV41

 1
72808A - BRACKET SUB-ASSY, SEAT CENTER ARMREST
72883-06070

AHV41

 1
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-06620E1

AHV41

GREGE,TRIM4#

 1
72833 - PLATE, SEAT CENTER ARMREST, INNER RH
72831-06080E0

AHV41

GREGE,TRIM4#

 1
72860 - BOX ASSY, REAR SEAT CENTER ARMREST
72860-06090E0

AHV41

GREGE,TRIM4#

 1
72860 - BOX ASSY, REAR SEAT CENTER ARMREST
72860-06090E0

AHV41

GREGE,TRIM4#

 1
Common parts
90109-06208
90119-C0026
90179-06129
90179-08249
90386-11015
93530-15014
Linked diagrams
7104
