AHV41L-JEXGBC (2010)

Toyota Camry (China)

Production Mar 2010 - Dec 2011
Engine 3AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0605- )

Click highlighted areas on diagram

W(SRS SIDE AIR BAG),LH POWER SEAT

diagram 7104 7104 71072S 71074S 71440S 71512S 71620S 71706 71707B 71812D 71862 71868A 71873 71874 71875G 71875H 71876C 71876G 71910A 71931 71931 72124 72128A 72138 72158 72760D 8202 8202 8401 8401 8401 8401 8401 8401 8421 8421 85820Z 85820Z 85820Z 85820Z 9011005013 90119C0038 90119C0038 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740048 9038910041 91622B1018 9353054010 9356054012 9356855016
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-06C11E0

ACV40,AHV41..240G,HBD

GREGE,TRIM4#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-06L61E0

ACV40,AHV41..240G,HBD

GREGE,TRIM4#

 1
71074-06L60E0

ACV40,AHV41..240G,HBD

GREGE,TRIM4#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-06781E0

AHV41

GREGE,TRIM4#

 1
71440-06781E0

AHV41

240V,GREGE,TRIM4#

 1
71440-06782E0

AHV41

GREGE,TRIM4#

 1
71440-06783E0

ACV40,AHV41..240G,HBD

GREGE,TRIM4#

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-06240

AHV41

 1
Common parts
90110-05013
90119-C0038
90167-40044
90167-40048
90389-10041
91622-B1018
93530-54010
93560-54012
93568-55016
Linked diagrams
7104
8202
8401
8421

(0605- )

Click highlighted areas on diagram

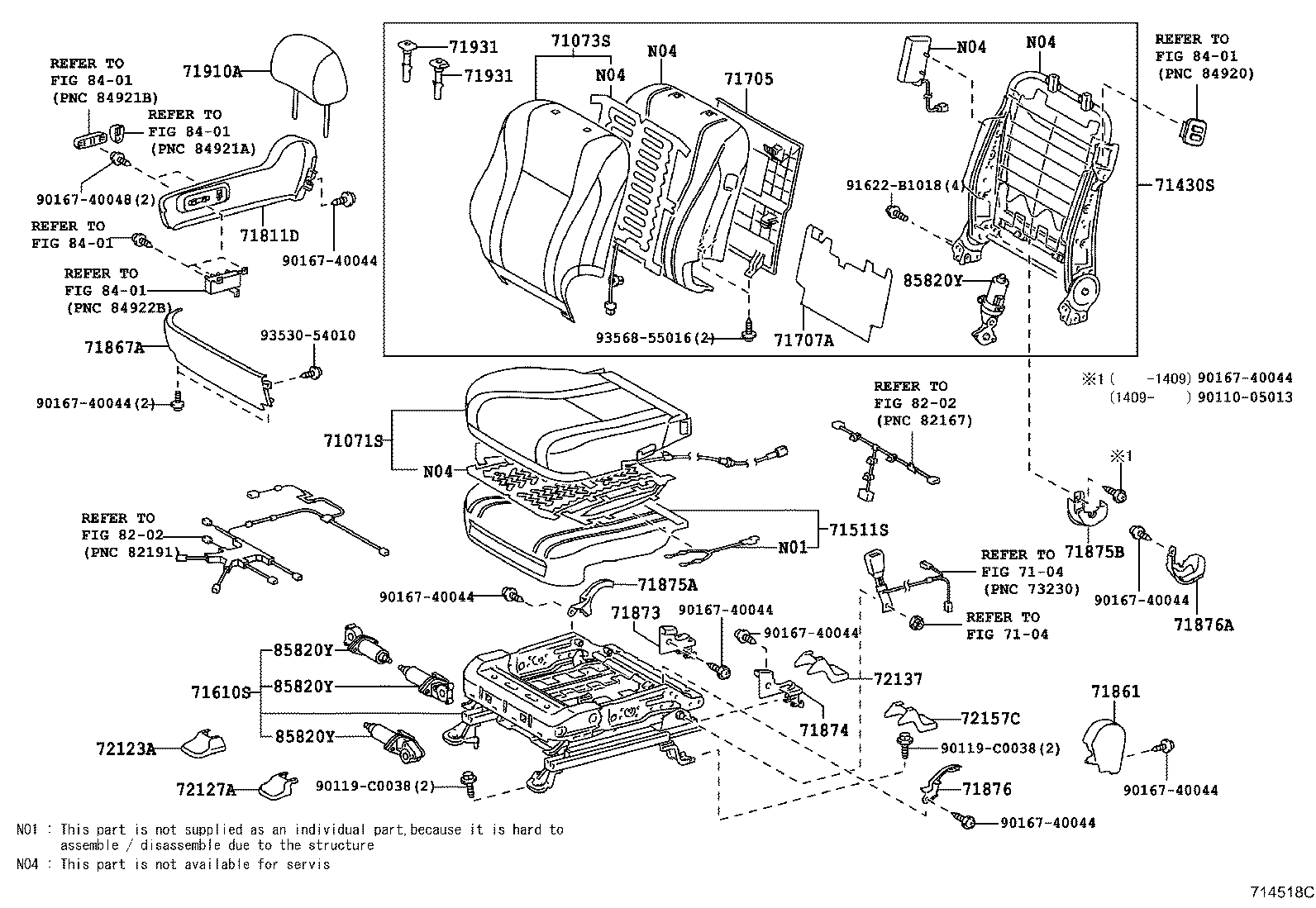

W(SRS SIDE AIR BAG),RH POWER SEAT

diagram 7104 7104 71071S 71073S 71430S 71511S 71610S 71705 71707A 71811D 71861 71867A 71873 71874 71875A 71875B 71876 71876A 71910A 71931 71931 72123A 72127A 72137 72157C 8202 8202 8401 8401 8401 8401 8401 85820Y 85820Y 85820Y 85820Y 9011005013 90119C0038 90119C0038 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740048 91622B1018 9353054010 9356855016
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-06C21E0

ACV40,AHV41..240G,HBD

GREGE,TRIM4#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-06M81E0

ACV40,AHV41..240G,HBD

GREGE,TRIM4#

 1
71073-06M80E0

ACV40,AHV41..240G,HBD

GREGE,TRIM4#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-06841E0

AHV41

GREGE,TRIM4#

 1
71430-06843E0

ACV40,AHV41..240G,HBD

GREGE,TRIM4#

 1
71430-06842E0

AHV41

GREGE,TRIM4#

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-06210

AHV41

 1
Common parts
90110-05013
90119-C0038
90167-40044
90167-40048
91622-B1018
93530-54010
93568-55016
Linked diagrams
7104
8202
8401
