AHV41L-JEXGBC (2010)

Toyota Camry (China)

Production Mar 2010 - Dec 2011
Engine 3AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0605- )

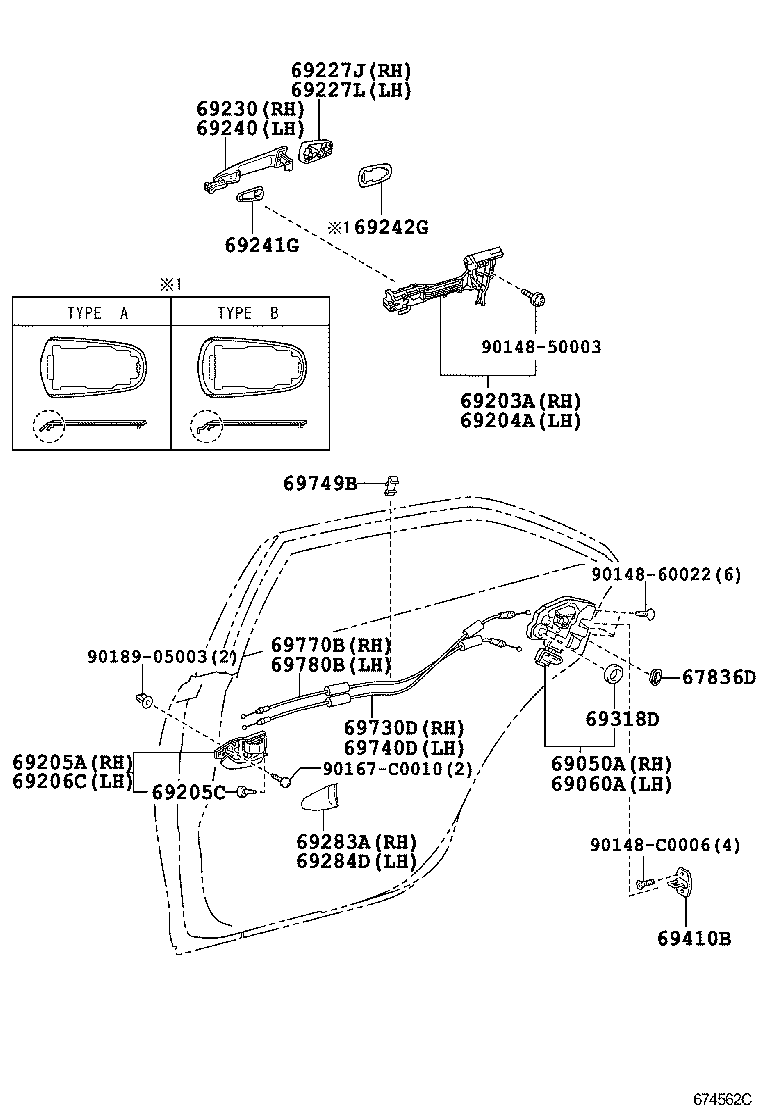

Click highlighted areas on diagram

diagram 67836D 69050A 69060A 69203A 69204A 69205A 69205C 69206C 69227J 69227L 69230 69240 69241G 69242G 69283A 69284D 69318D 69410B 69730D 69740D 69749B 69770B 69780B 9014850003 9014860022 90148C0006 90167C0010 9018905003
Part # Description Qty Price
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69207-0N010J2

AHV41

LIGHT BLUE MICA METALLIC,8U8

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69207-0N010J2

AHV41

LIGHT BLUE MICA METALLIC,8U8

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69210-0P010J2

AHV41

LIGHT BLUE MICA METALLIC,8U8

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69210-0P010J2

AHV41

LIGHT BLUE MICA METALLIC,8U8

 1
Common parts
90148-50003
90148-60022
90148-C0006
90167-C0010
90189-05003
