AHV41L-JEXGBC (2010)

Toyota Camry (China)

Production Mar 2010 - Dec 2011
Engine 3AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0605- )

Click highlighted areas on diagram

DOOR TRIM

diagram 65907E 65908D 65923E 67603 67603B 67604 67673A 67674A 6792333050 6792333050 68173B 68174A 7401 7401 8401 9016440105 9016460018 9018906030
Part # Description Qty Price
65907E - CURTAIN SUB-ASSY, REAR RH
65907-06020E0

AHV41

240V,ASH BROWN,TRIM4#

 1
65908D - CURTAIN SUB-ASSY, REAR LH
65908-06020E0

AHV41

240V,ASH BROWN,TRIM4#

 1
65923E - HOOK, CURTAIN
65923-33020

AHV41

240V

 4
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-06A30E0

AHV41

240V,GREGE,TRIM4#

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-06A30E0

AHV41

240V,GREGE,TRIM4#

 1
Common parts
67923-33050
90164-40105
90164-60018
90189-06030
Linked diagrams
7401
8401

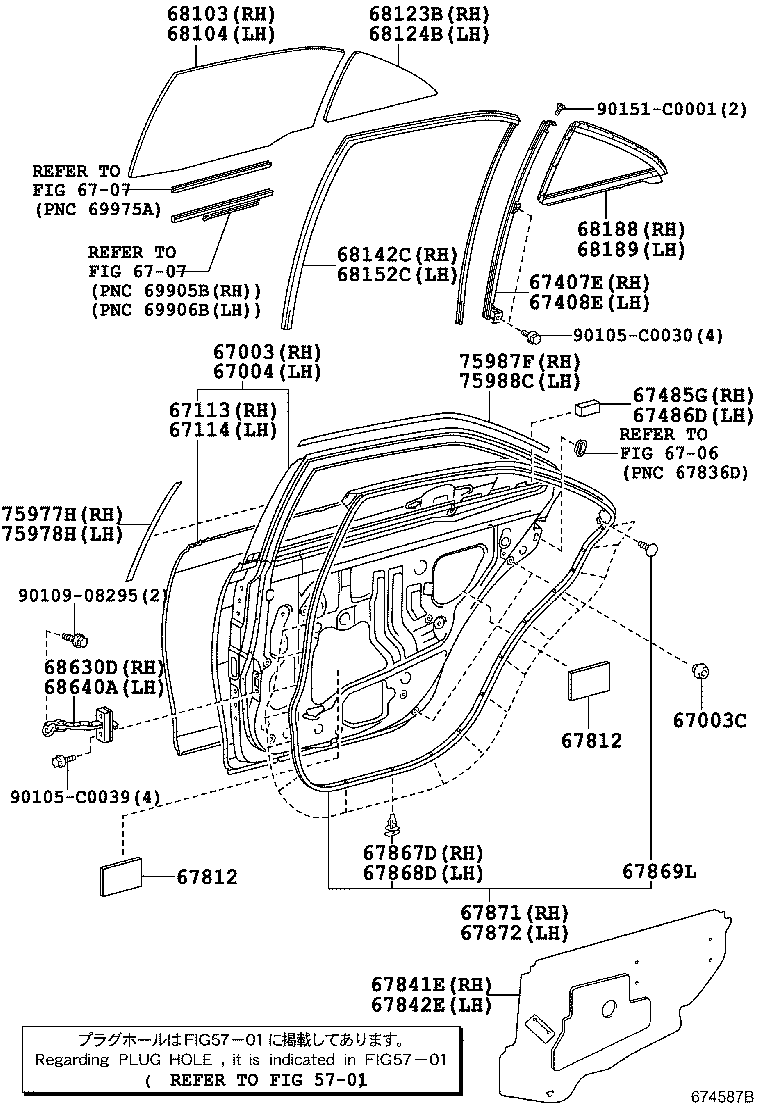

ILLUST NO. 1 OF 2(0605- )

Click highlighted areas on diagram

DOOR PANEL

diagram 5701 67003 67003C 67004 6706 6707 6707 67113 67114 67407E 67408E 67485G 67486D 67812 67812 67841E 67842E 67867D 67868D 67869L 67871 67872 68103 68104 68123B 68124B 68142C 68152C 68188 68189 68630D 68640A 75977H 75978H 75987F 75988C 90105C0030 90105C0039 9010908295 90151C0001
Part # Description Qty Price
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-06180

AHV41

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-06180

AHV41

 1
Common parts
90105-C0030
90105-C0039
90109-08295
90151-C0001
Linked diagrams
5701
6706
6707
