AHV41L-JEXGBC (2010)

Toyota Camry (China)

Production Mar 2010 - Dec 2011
Engine 3AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0605- )

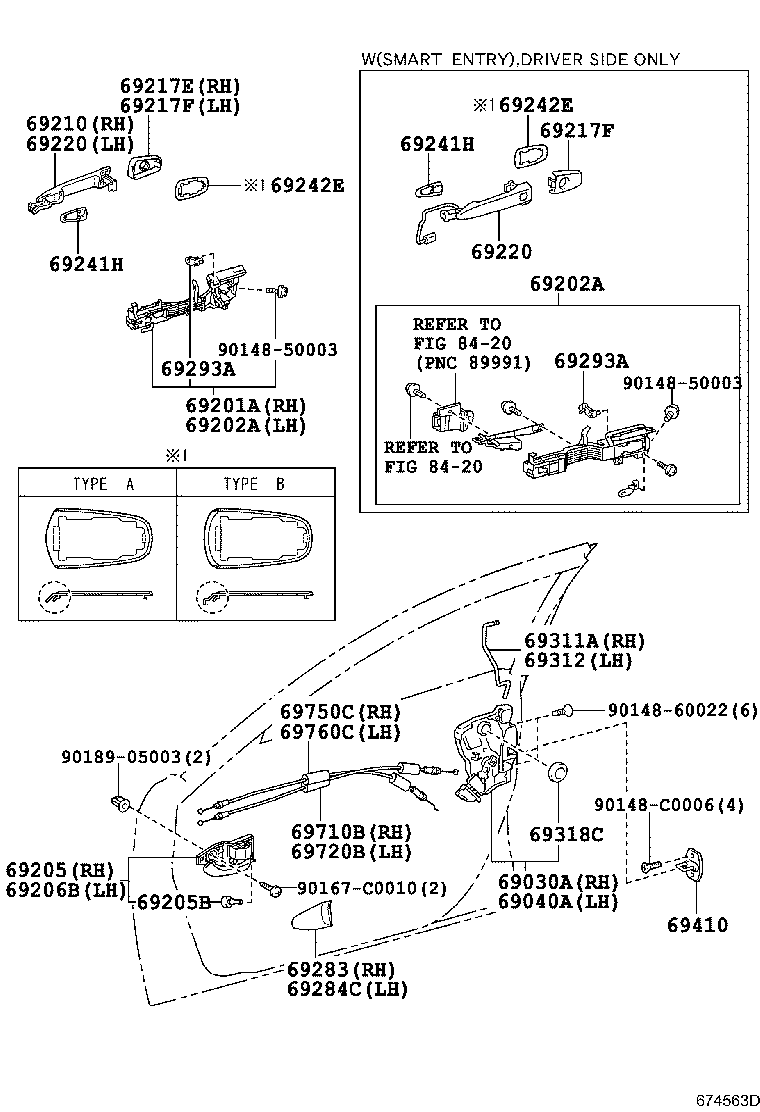

Click highlighted areas on diagram

diagram 69030A 69040A 69201A 69202A 69202A 69205 69205B 69206B 69210 69217E 69217F 69217F 69220 69220 69241H 69241H 69242E 69242E 69283 69284C 69293A 69293A 69311A 69312 69318C 69410 69710B 69720B 69750C 69760C 8420 8420 9014850003 9014850003 9014860022 90148C0006 90167C0010 9018905003
Part # Description Qty Price
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-0P010J2

AHV41

LIGHT BLUE MICA METALLIC,8U8

 1
69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH
69250-0N020J2

AHV41

LIGHT BLUE MICA METALLIC,8U8

 1
69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH
69250-0N010J2

AHV41

LIGHT BLUE MICA METALLIC,8U8

 1
69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH
69250-0N010J2

AHV41

LIGHT BLUE MICA METALLIC,8U8

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69210-06090J2

AHV41

LIGHT BLUE MICA METALLIC,8U8

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69210-06090J2

AHV41

LIGHT BLUE MICA METALLIC,8U8

 1
Common parts
90148-50003
90148-60022
90148-C0006
90167-C0010
90189-05003
Linked diagrams
8420
