AHV41L-JEXGBC (2010)

Toyota Camry (China)

Production Mar 2010 - Dec 2011
Engine 3AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0605- )

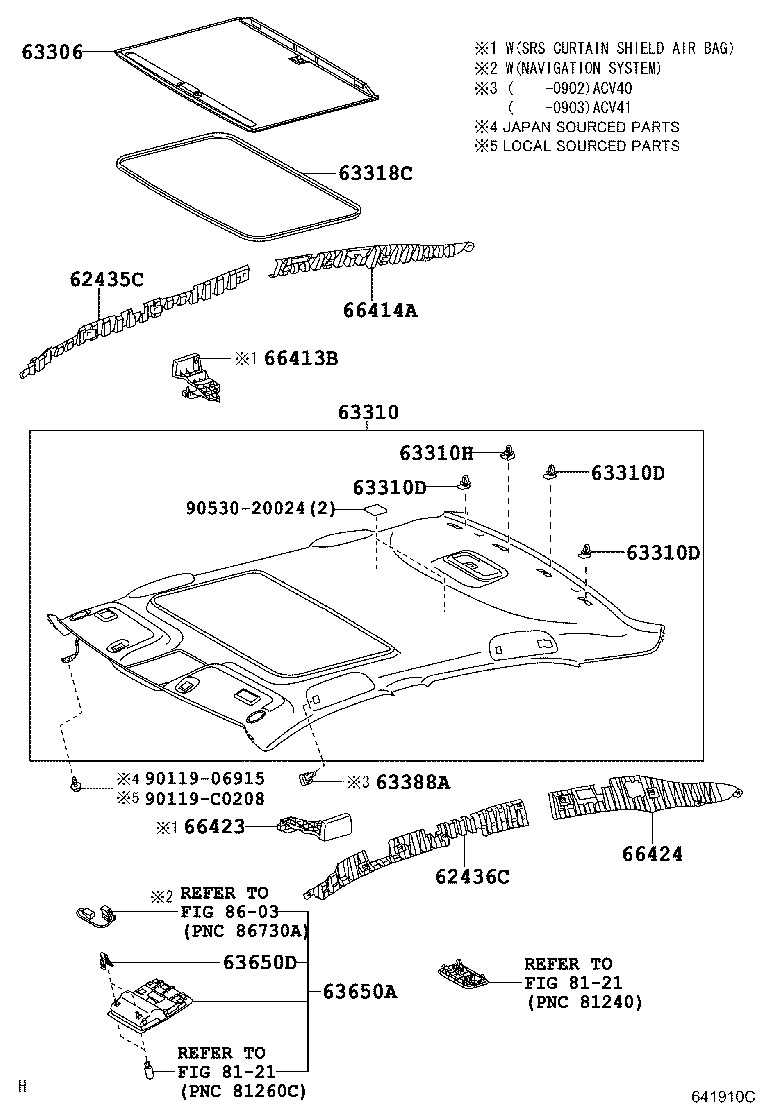

Click highlighted areas on diagram

W(MOON ROOF)

diagram 62435C 62436C 63306 63310 63310D 63310D 63310D 63310H 63318C 63388A 63650A 63650D 66413B 66414A 66423 66424 8121 8121 8603 9011906915 90119C0208 9053020024
Part # Description Qty Price
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-06070E0

AHV41

L=2375,240V&NAVI PACKAGE,GREGE,TRIM4#

 1
63650A - BOX ASSY, ROOF CONSOLE
63650-06350E0

AHV41

240V&NAVI PACKAGE&G-BOOK-WITH,GREGE,TRIM4#

 1
Common parts
90119-06915
90119-C0208
90530-20024
Linked diagrams
8121
8603
