AHV41L-JEXGBC (2010)
Toyota Camry (China)
Production
Mar 2010
-
Dec 2011
Engine
3AZFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(0605- )
Click highlighted areas on diagram

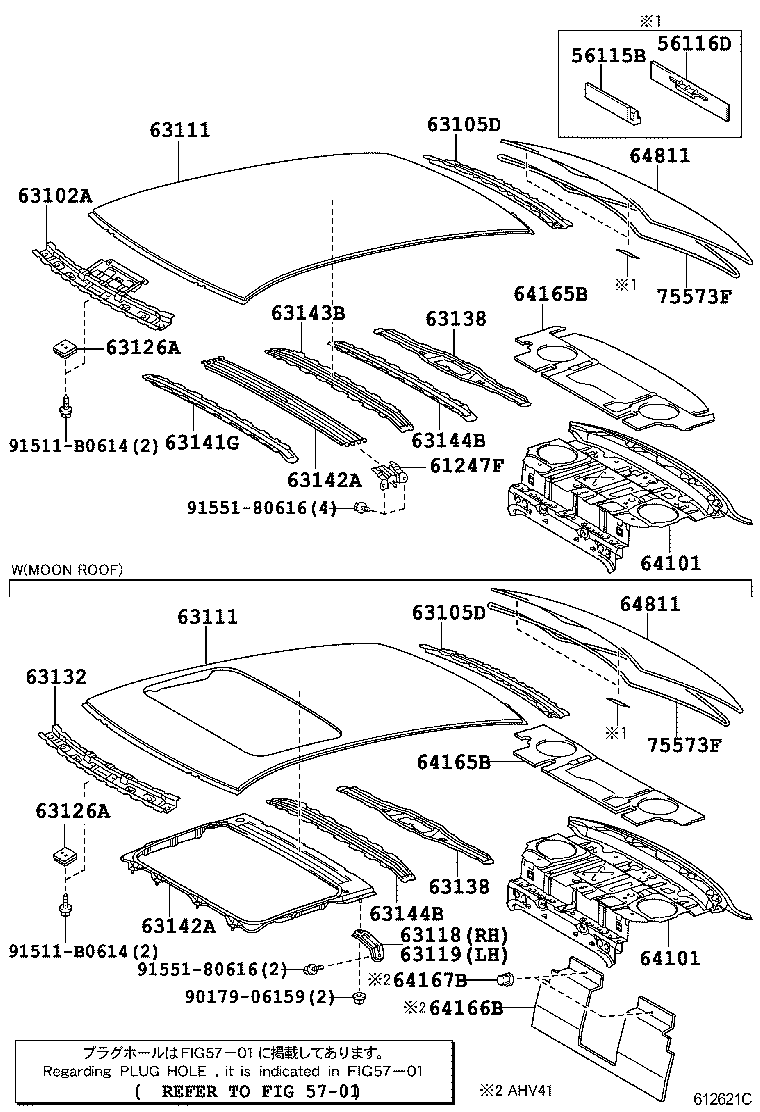

ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-06220 |
AHV41 |
1 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-06220 |
AHV41 |
1 | ||
| 64166B - COVER, UPPER BACK PANEL HOLE, NO.2 | ||||
| 64166-06020 |
AHV41 |
1 | ||
| 64167B - COVER, UPPER BACK PANEL HOLE, NO.3 | ||||
| 64328-06020 |
AHV41 |
2 | ||
| Common parts | ||||
| 90179-06159 | ||||
| 91511-B0614 | ||||
| 91551-80616 | ||||
| Linked diagrams | ||||
| 5701 | ||||
ILLUST NO. 2 OF 2(0605- )
Click highlighted areas on diagram

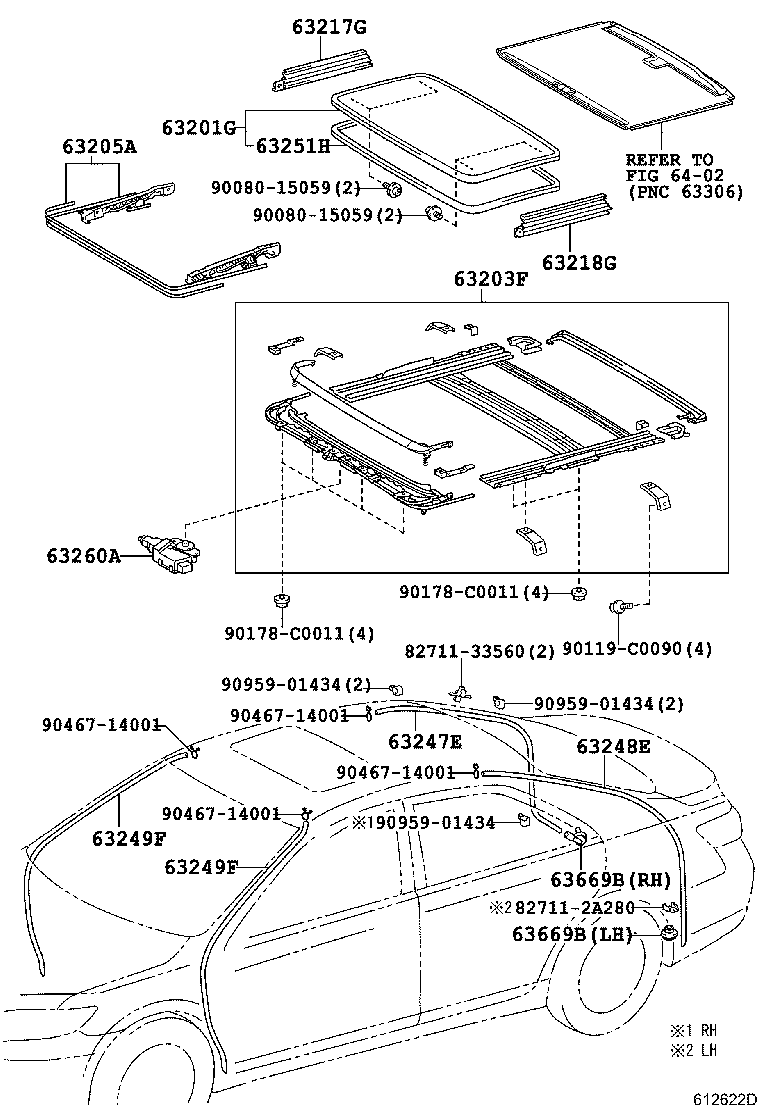

MOON ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-06053 |
ACV40,AHV41..240G,HBD |
1 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 90480-30035 |
ACV40,AHV41..240G,HBD (J),LH |
1 | ||
| 63669-50010 |
ACV40,AHV41..240G,HBD (J),RH |
1 | ||
| 63669-06050 |
ACV40,AHV41..240G,HBD (L),RH |
1 | ||
| 90480-C0002 |
ACV40,AHV41..240G,HBD (L),LH |
1 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 90480-30035 |
ACV40,AHV41..240G,HBD (J),LH |
1 | ||
| 63669-50010 |
ACV40,AHV41..240G,HBD (J),RH |
1 | ||
| 63669-06050 |
ACV40,AHV41..240G,HBD (L),RH |
1 | ||
| 90480-C0002 |
ACV40,AHV41..240G,HBD (L),LH |
1 | ||
| Common parts | ||||
| 82711-2A280 | ||||
| 82711-33560 | ||||
| 90080-15059 | ||||
| 90119-C0090 | ||||
| 90178-C0011 | ||||
| 90467-14001 | ||||
| 90959-01434 | ||||
| Linked diagrams | ||||
| 6402 | ||||
