AHV41L-JEXGBC (2010)

Toyota Camry (China)

Production Mar 2010 - Dec 2011
Engine 3AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0605- )

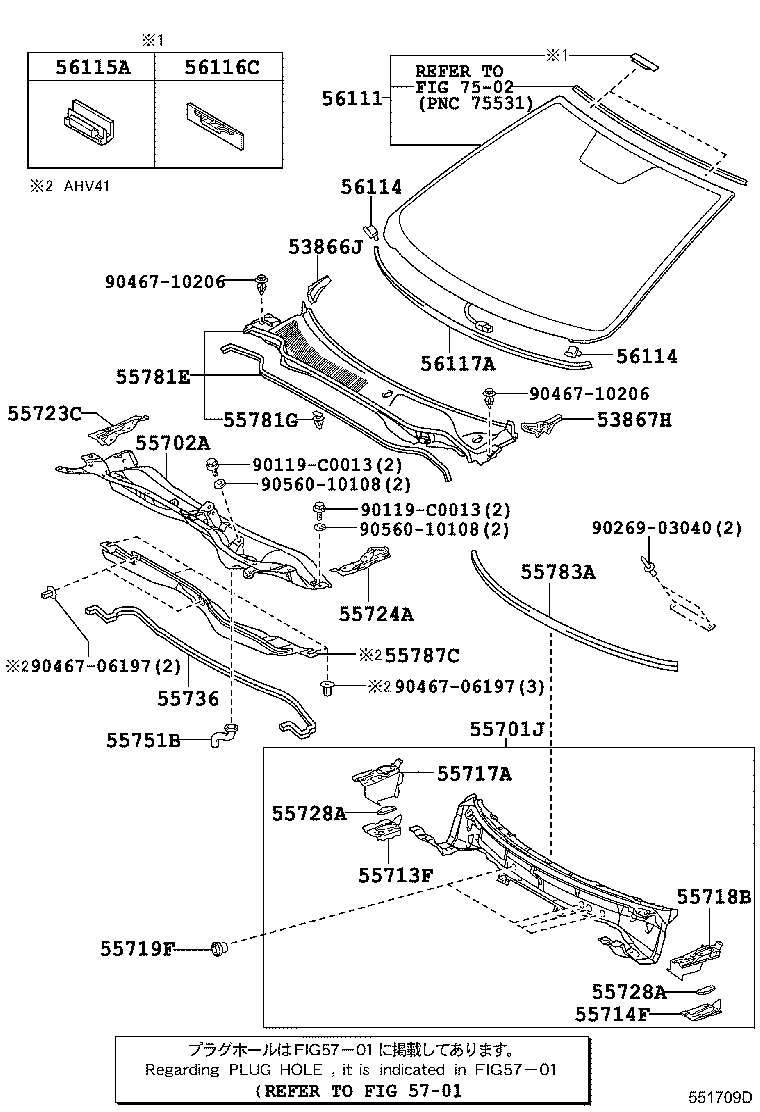

Click highlighted areas on diagram

diagram 53866J 53867H 55701J 55702A 55713F 55714F 55717A 55718B 55719F 55723C 55724A 55728A 55728A 55736 55751B 55781E 55781G 55783A 55787C 56111 56114 56114 56115A 56116C 56117A 5701 7502 90119C0013 90119C0013 9026903040 9046706197 9046706197 9046710206 9046710206 9056010108 9056010108
Part # Description Qty Price
55702A - PANEL SUB-ASSY, COWL TOP, OUTER FRONT
55702-33040

AHV41

 1
55751B - HOSE, COWL WATER EXTRACT, NO.1
55751-33030

AHV41

 1
55787C - INSULATOR, COWL TOP PANEL, NO.1
55787-33070

AHV41

 1
56111 - GLASS, WINDSHIELD
56101-06451

AHV41

*HSEAL,T=4.76,GREEN

 1
Common parts
90119-C0013
90269-03040
90467-06197
90467-10206
90560-10108
Linked diagrams
5701
7502
