AHV41L-JEXGBC (2010)

Toyota Camry (China)

Production Mar 2010 - Dec 2011
Engine 3AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

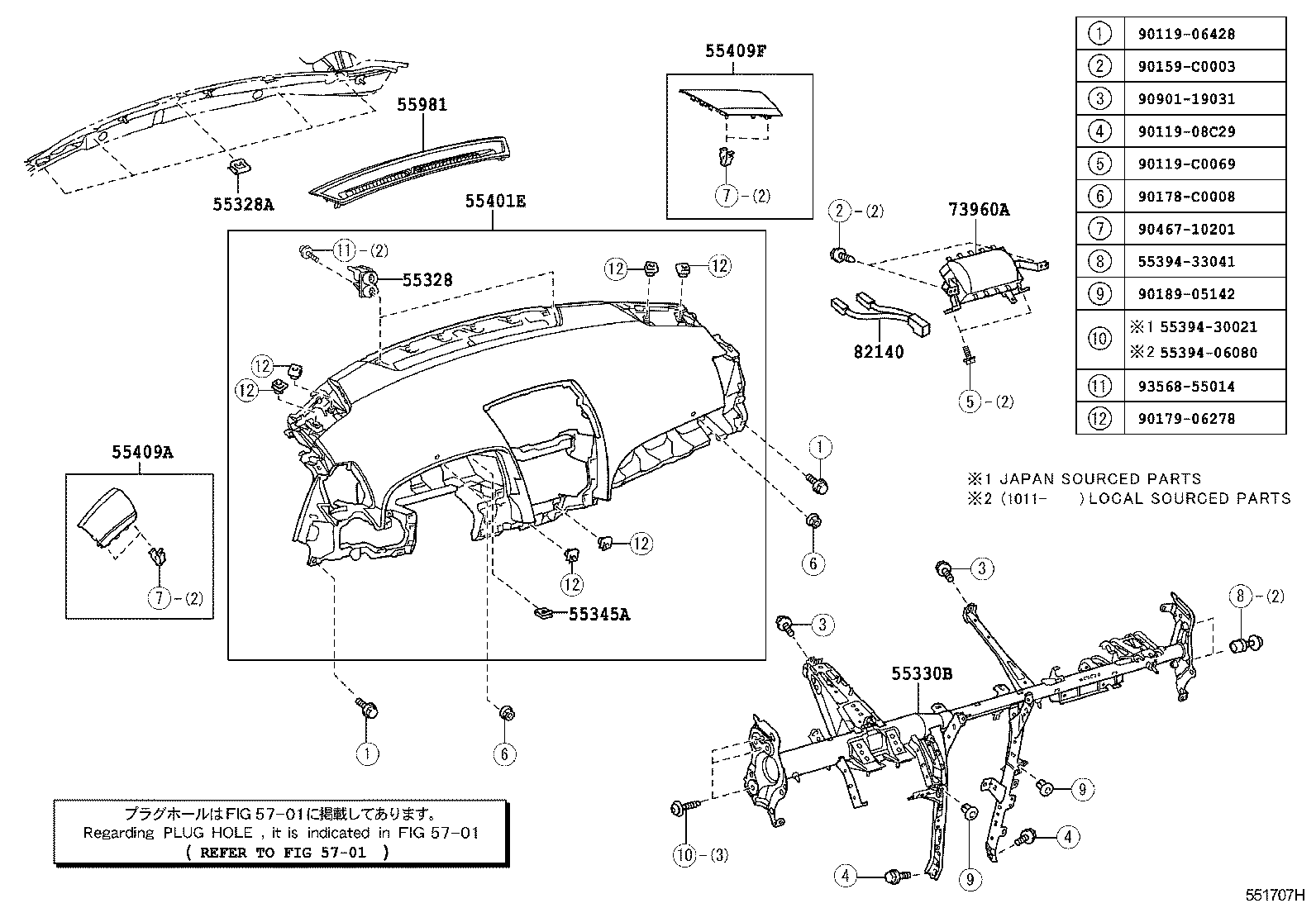

ILLUST NO. 1 OF 2(0605- )

Click highlighted areas on diagram

diagram 55328 55328A 55330B 55345A 5539406080 5539430021 5539433041 55401E 55409A 55409F 55981 5701 73960A 82140 9011906428 9011908C29 90119C0069 90159C0003 90178C0008 9017906278 9018905142 9046710201 9090119031 9356855014
Part # Description Qty Price
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-06210E0

AHV41

ASH BROWN,TRIM4#

 1
Common parts
55394-06080
55394-30021
55394-33041
90119-06428
90119-08C29
90119-C0069
90159-C0003
90178-C0008
90179-06278
90189-05142
90467-10201
90901-19031
93568-55014
Linked diagrams
5701

ILLUST NO. 2 OF 2(0605- )

Click highlighted areas on diagram

diagram 5303 5303 55301 55404C 55432A 55432B 55432B 55433C 55539 55548A 55557C 55607 55650 55660 55670 8401 9011906166 90167C0009 9046706165C0 9046710203 9054103015
Part # Description Qty Price
55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH
55303-06250E0

AHV41

GREGE,TRIM4#

 1
55548A - COVER, INSTRUMENT PANEL HOLE
55548-06140E0

AHV41

240V,GREGE,TRIM4#

 1
55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55607-06120

AHV41

 1
Common parts
90119-06166
90167-C0009
90467-06165C0
90467-10203
90541-03015
Linked diagrams
5303
8401
