AHV41L-JEXGBC (2010)
Toyota Camry (China)
Production
Mar 2010
-
Dec 2011
Engine
3AZFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0605- )

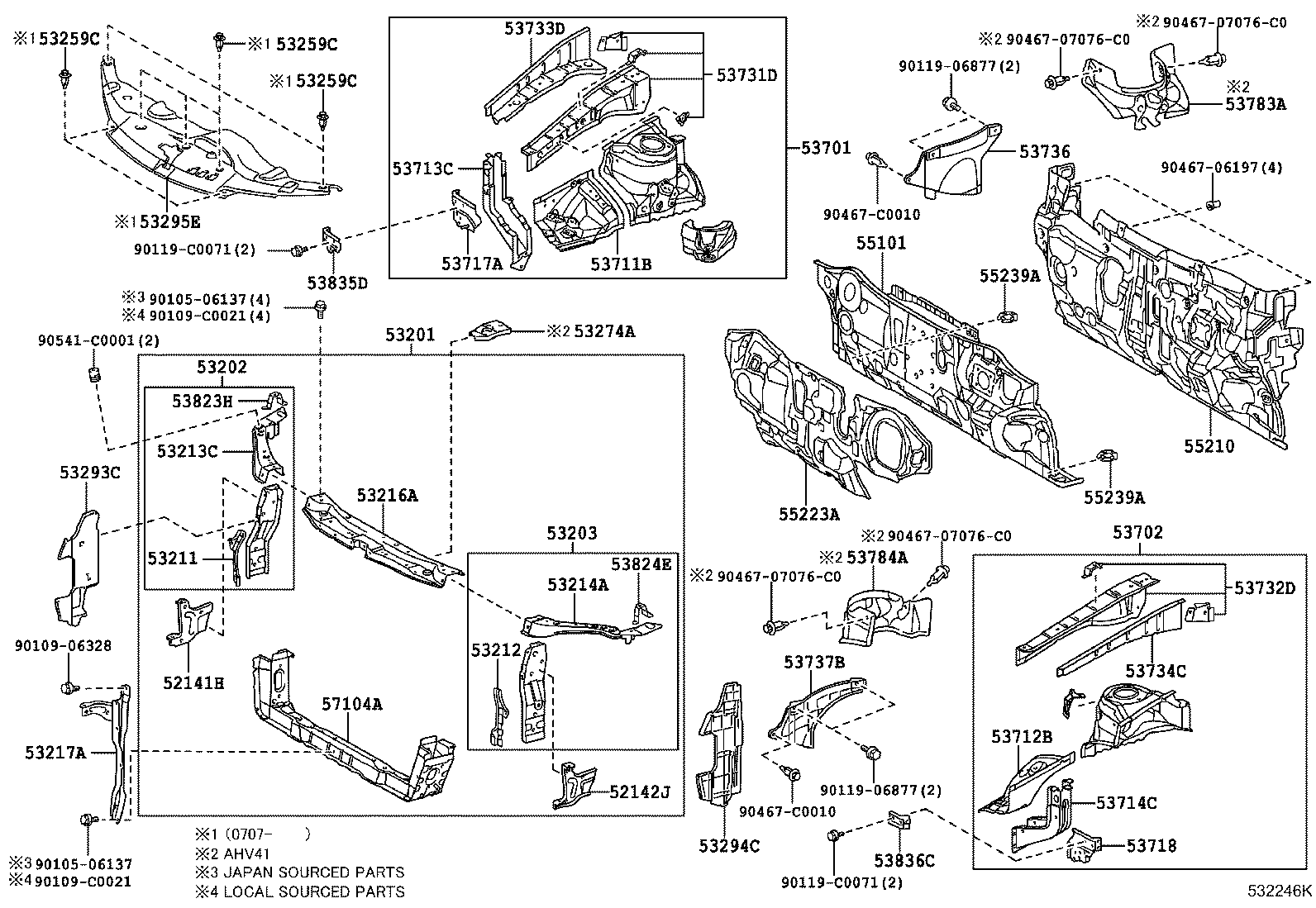

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-06202 |
ACV4#,AHV41 |
1 | ||
| 53201-06201 |
ACV4#,AHV41 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-06121 |
ACV4#,AHV41 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-06151 |
ACV4#,AHV41 |
1 | ||
| 53211 - SUPPORT, RADIATOR, RH | ||||
| 53211-06120 |
ACV4#,AHV41 |
1 | ||
| 53212 - SUPPORT, RADIATOR, LH | ||||
| 53212-06120 |
ACV4#,AHV41 |
1 | ||
| 53274A - REINFORCEMENT, RADIATOR SUPPORT, LH | ||||
| 53274-33030 |
AHV41 |
1 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-06180 |
AHV41 |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-06170 |
AHV41 |
1 | ||
| 53783A - INSULATOR, APRON FRONT FENDER, RH | ||||
| 53783-33020 |
AHV41 |
1 | ||
| 53784A - INSULATOR, APRON FRONT FENDER, LH | ||||
| 53784-33030 |
AHV41 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-06450 |
AHV41 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-06150 |
AHV41 |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-33180 |
AHV41 |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-06051 |
ACV4#,AHV41 |
1 | ||
| Common parts | ||||
| 90105-06137 | ||||
| 90109-06328 | ||||
| 90109-C0021 | ||||
| 90119-06877 | ||||
| 90119-C0071 | ||||
| 90467-06197 | ||||
| 90467-07076C0 | ||||
| 90467-C0010 | ||||
| 90541-C0001 | ||||
