AHV41L-JEXGBC (2010)

Toyota Camry (China)

Production Mar 2010 - Dec 2011
Engine 3AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0605- )

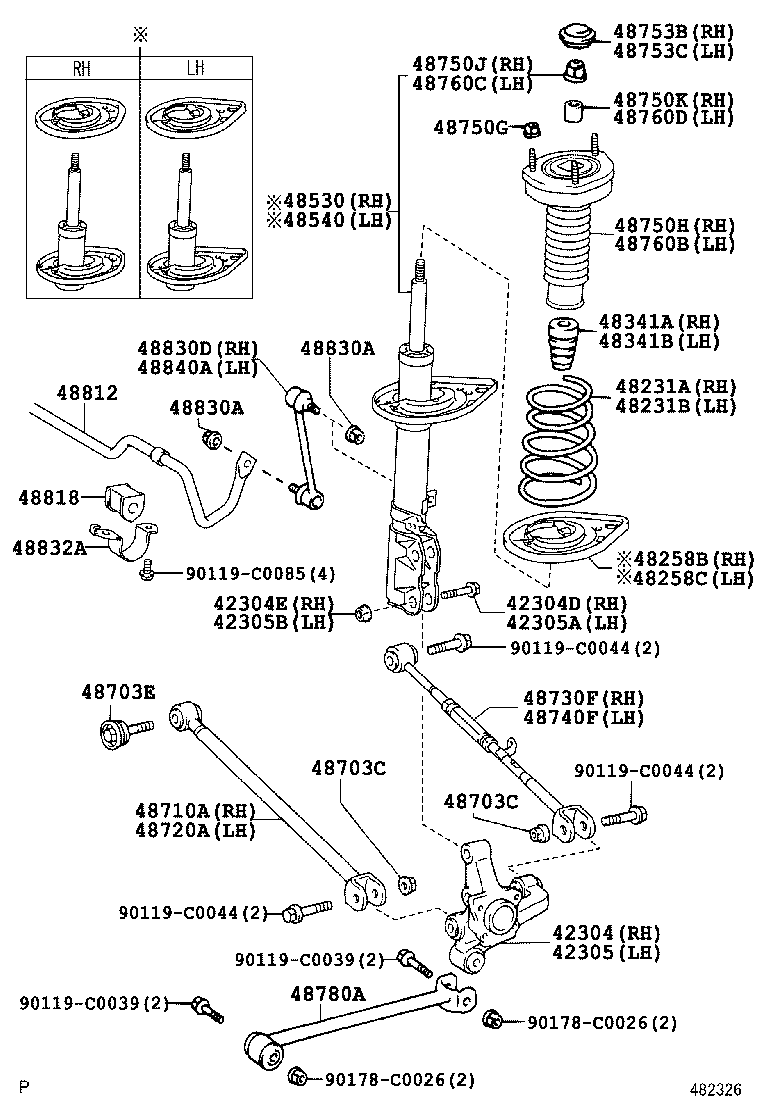

Click highlighted areas on diagram

diagram 42304 42304D 42304E 42305 42305A 42305B 48231A 48231B 48258B 48258C 48341A 48341B 48530 48540 48703C 48703C 48703E 48710A 48720A 48730F 48740F 48750G 48750H 48750J 48750K 48753B 48753C 48760B 48760C 48760D 48780A 48812 48818 48830A 48830A 48830D 48832A 48840A 90119C0039 90119C0039 90119C0044 90119C0044 90119C0044 90119C0085 90178C0026 90178C0026
Part # Description Qty Price
48231A - SPRING, COIL, REAR RH
48231-06470

AHV41

 1
48231B - SPRING, COIL, REAR LH
48231-06470

AHV41

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-09R50

AHV41

MARK 48530-06530

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48540-09A00

AHV41

MARK 48540-06530

 1
Common parts
90119-C0039
90119-C0044
90119-C0085
90178-C0026
