AHV41L-JEXGBC (2010)

Toyota Camry (China)

Production Mar 2010 - Dec 2011
Engine 3AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0605- )

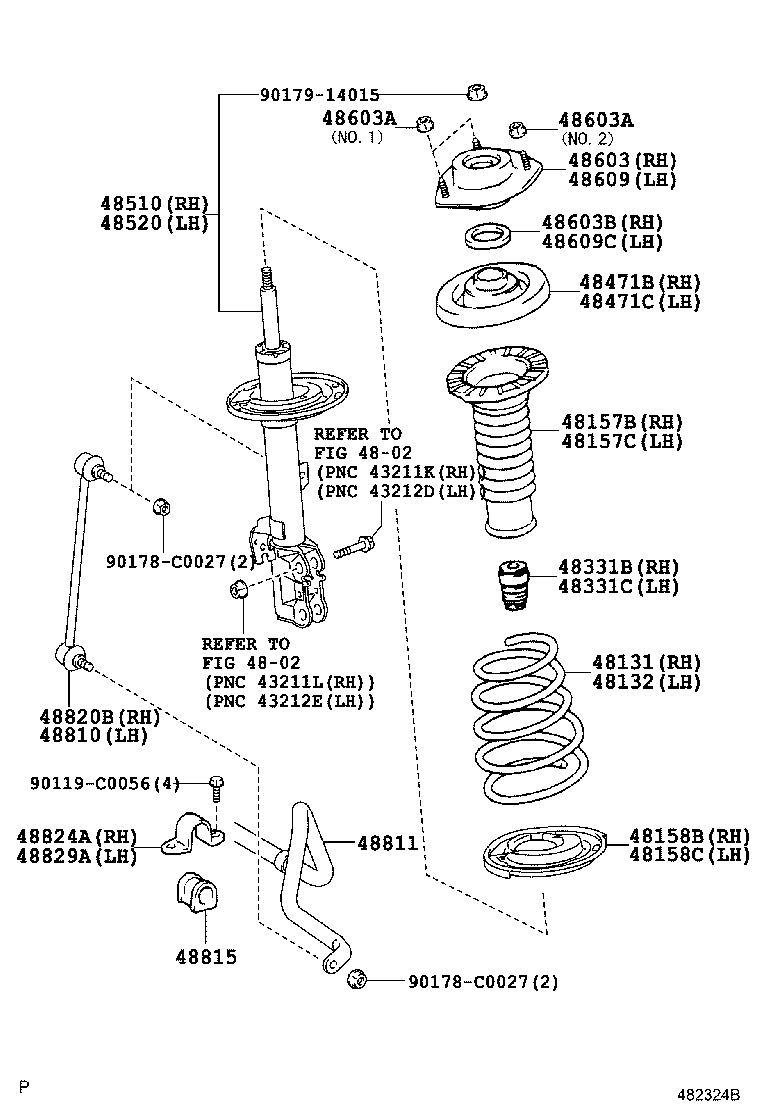

Click highlighted areas on diagram

diagram 4802 4802 48131 48132 48157B 48157C 48158B 48158C 48331B 48331C 48471B 48471C 48510 48520 48603 48603A 48603A 48603B 48609 48609C 48810 48811 48815 48820B 48824A 48829A 90119C0056 90178C0027 90178C0027 9017914015
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-06C30

AHV41

 1
48132 - SPRING, FRONT COIL, LH
48131-06C30

AHV41

 1
48158B - INSULATOR, FRONT COIL SPRING, LOWER RH
48158-06110

ACV4#,AHV41

 1
48158C - INSULATOR, FRONT COIL SPRING, LOWER LH
48158-06110

ACV4#,AHV41

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-A9790

AHV41

MARK 48510-06630

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-A9480

AHV41

MARK 48520-06630

 1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-06240

AHV41

 1
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-06240

AHV41

 1
48811 - BAR, STABILIZER, FRONT
48811-33160

AHV41

 1
Common parts
90119-C0056
90178-C0027
90179-14015
Linked diagrams
4802
