AHV41L-JEXGBC (2010)

Toyota Camry (China)

Production Mar 2010 - Dec 2011
Engine 3AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0605- )

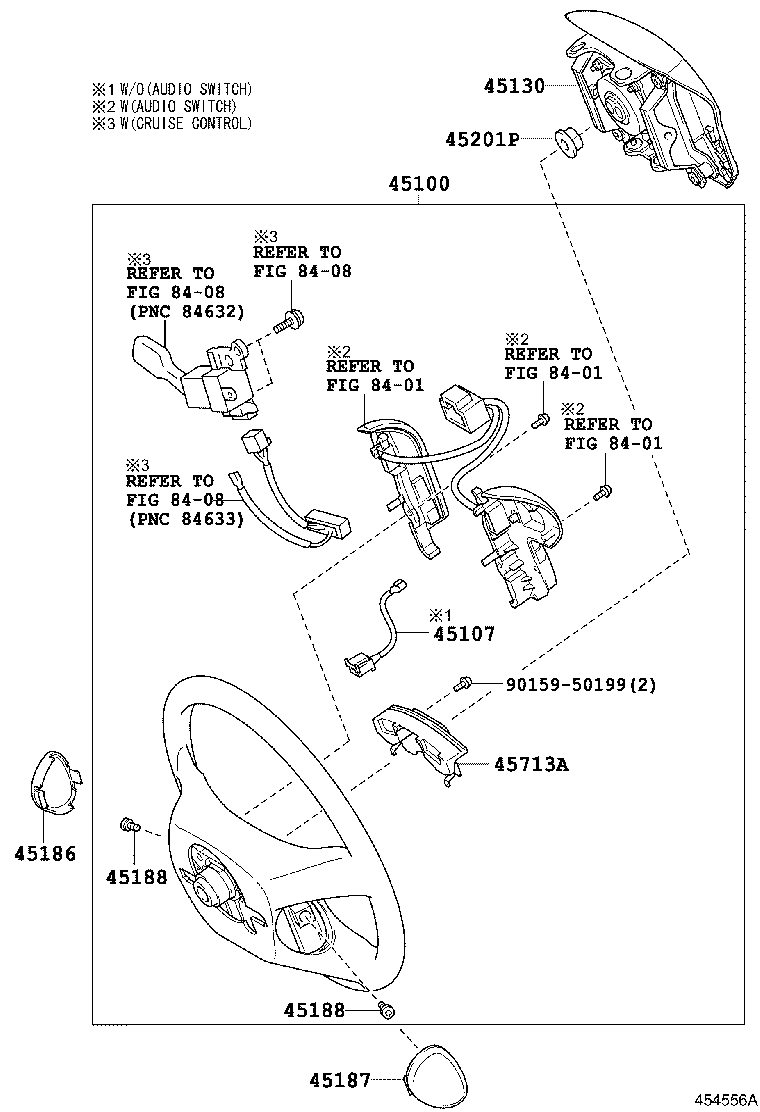

Click highlighted areas on diagram

4-SPOKE

diagram 45100 45107 45130 45186 45187 45188 45188 45201P 45713A 8401 8401 8401 8408 8408 8408 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-06M10E0

AHV41

4-SPOKE,WOOD&LEATHER,240V&NAVI PACKAGE&G-BOOK-WITH,ASH BROWN,TRIM4#

 1
45100-06M00E0

AHV41

4-SPOKE,WOOD&LEATHER,ASH BROWN,TRIM4#

 1
45713A - DAMPER, STEERING SHAKE
45713-33170

AHV41

(J)

 1
45713-06170

AHV41

(L)

 1
Common parts
90159-50199
Linked diagrams
8401
8408
