AHV41L-JEXGBC (2010)

Toyota Camry (China)

Production Mar 2010 - Dec 2011
Engine 3AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

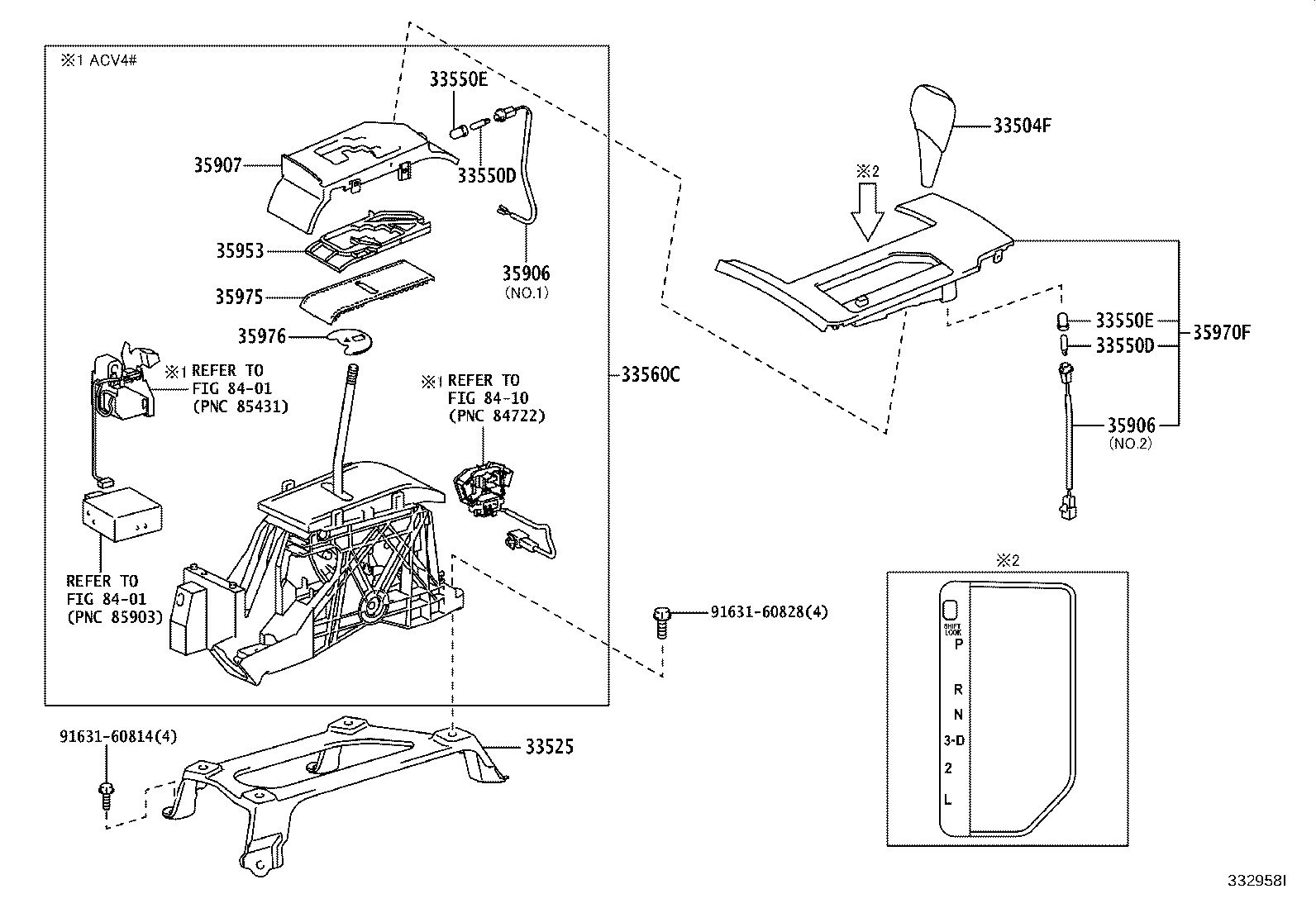

ILLUST NO. 1 OF 2(0605- )

Click highlighted areas on diagram

diagram 33504F 33525 33550D 33550D 33550E 33550E 33560C 35906 35906 35907 35953 35970F 35975 35976 8401 8401 8410 9163160814 9163160828
Part # Description Qty Price
33560C - LEVER ASSY, SHIFT, LOWER
33560-06200

AHV41

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-06180

AHV41

NO.1

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-06180

AHV41

NO.1

 1
35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
35907-06400

AHV41

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35970-06340E0

AHV41

BROWN,TRIM2#,4#

 1
Common parts
91631-60814
91631-60828
Linked diagrams
8401
8410

ILLUST NO. 2 OF 2(1003- )AHV41

Click highlighted areas on diagram

diagram 33723Q 33820B 33823 33826A 33827 3901 9011908760 9011908760 9046804193 9161160814 91621J0614
Part # Description Qty Price
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-06330

AHV41

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-33060

AHV41

 1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-33060

AHV41

 1
33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33827-33040

AHV41

 1
Common parts
90119-08760
90468-04193
91611-60814
91621-J0614
Linked diagrams
3901
