AHV41L-JEXGBC (2010)

Toyota Camry (China)

Production Mar 2010 - Dec 2011
Engine 3AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0605- )2AZFE,3AZFXE

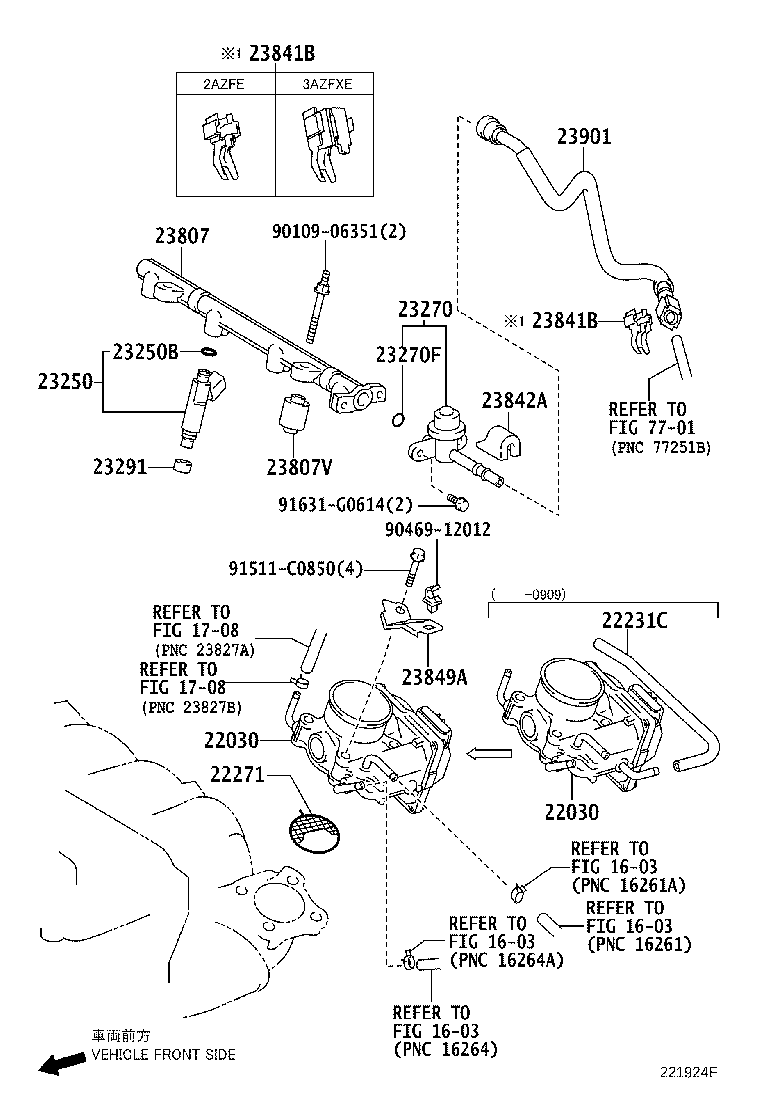

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1708 1708 22030 22030 22231C 22271 23250 23250B 23270 23270F 23291 23807 23807V 23841B 23841B 23842A 23849A 23901 7701 9010906351 9046912012 91511C0850 91631G0614
Part # Description Qty Price
23250 - INJECTOR ASSY, FUEL
23209-28060

3AZFXE..AHV41

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-28020

3AZFXE..AHV41

 4
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-31070

3AZFXE..AHV41

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-31070

3AZFXE..AHV41

 1
23901 - TUBE SUB-ASSY, FUEL
23901-0H140

3AZFXE..AHV41

 1
Common parts
90109-06351
90469-12012
91511-C0850
91631-G0614
Linked diagrams
1603
1708
7701
