AHV41L-JEXGBC (2010)

Toyota Camry (China)

Production Mar 2010 - Dec 2011
Engine 3AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1003- )3AZFXE

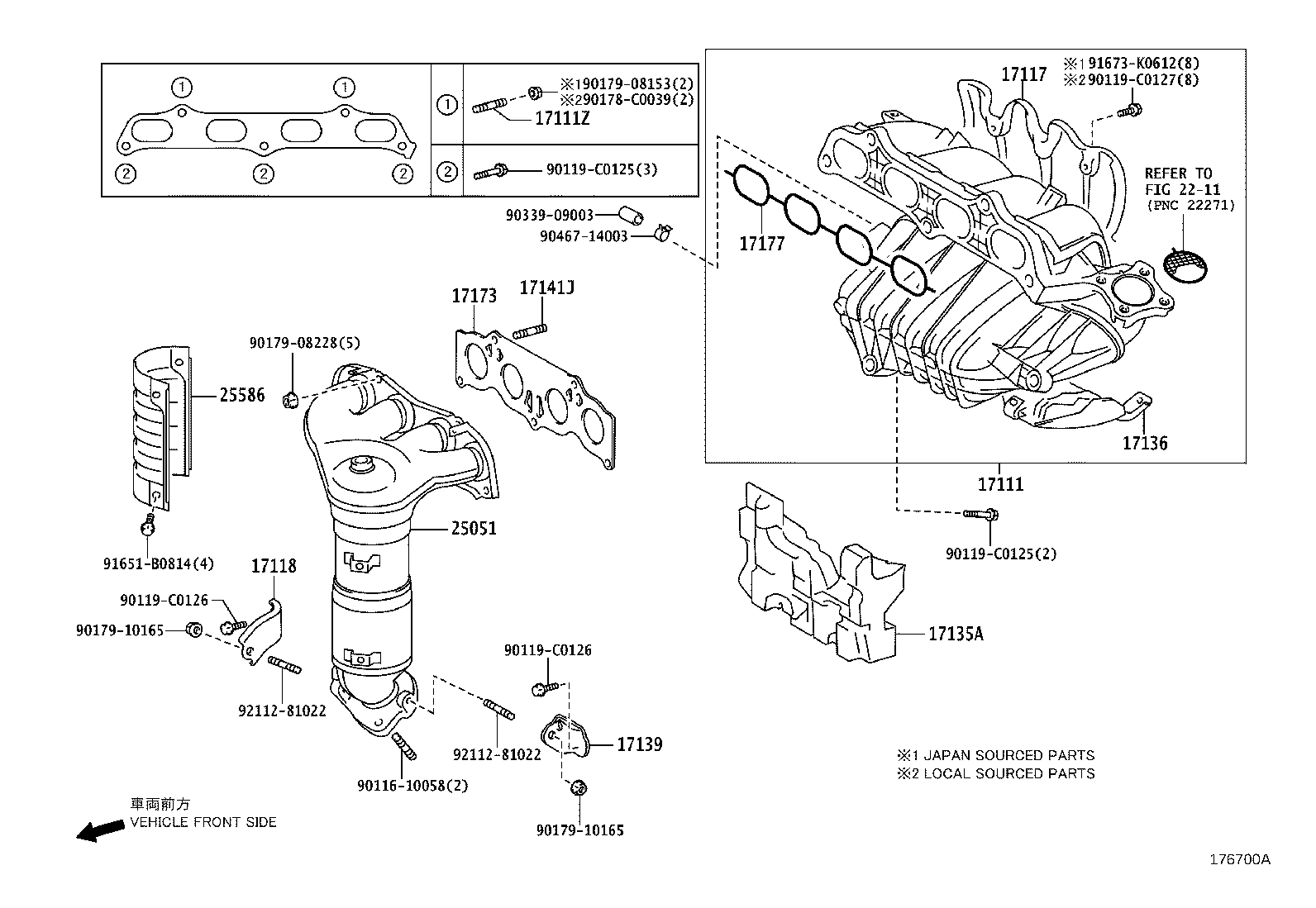

Click highlighted areas on diagram

diagram 17111 17111Z 17117 17118 17135A 17136 17139 17141J 17173 17177 2211 25051 25586 9011610058 90119C0125 90119C0125 90119C0126 90119C0126 90119C0127 90178C0039 9017908153 9017908228 9017910165 9017910165 9033909003 9046714003 91651B0814 91673K0612 9211281022 9211281022
Part # Description Qty Price
17118 - STAY, MANIFOLD
17118-28070

3AZFXE..AHV41

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-28310

3AZFXE..AHV41

 1
25586 - INSULATOR, MANIFOLD CONVERTER, NO.1
25586-28110

3AZFXE..AHV41

 1
Common parts
90116-10058
90119-C0125
90119-C0126
90119-C0127
90178-C0039
90179-08153
90179-08228
90179-10165
90339-09003
90467-14003
91651-B0814
91673-K0612
92112-81022
Linked diagrams
2211
