AHV41L-JEXGBC (2010)
Toyota Camry (China)
Production
Mar 2010
-
Dec 2011
Engine
3AZFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1003- )3AZFXE

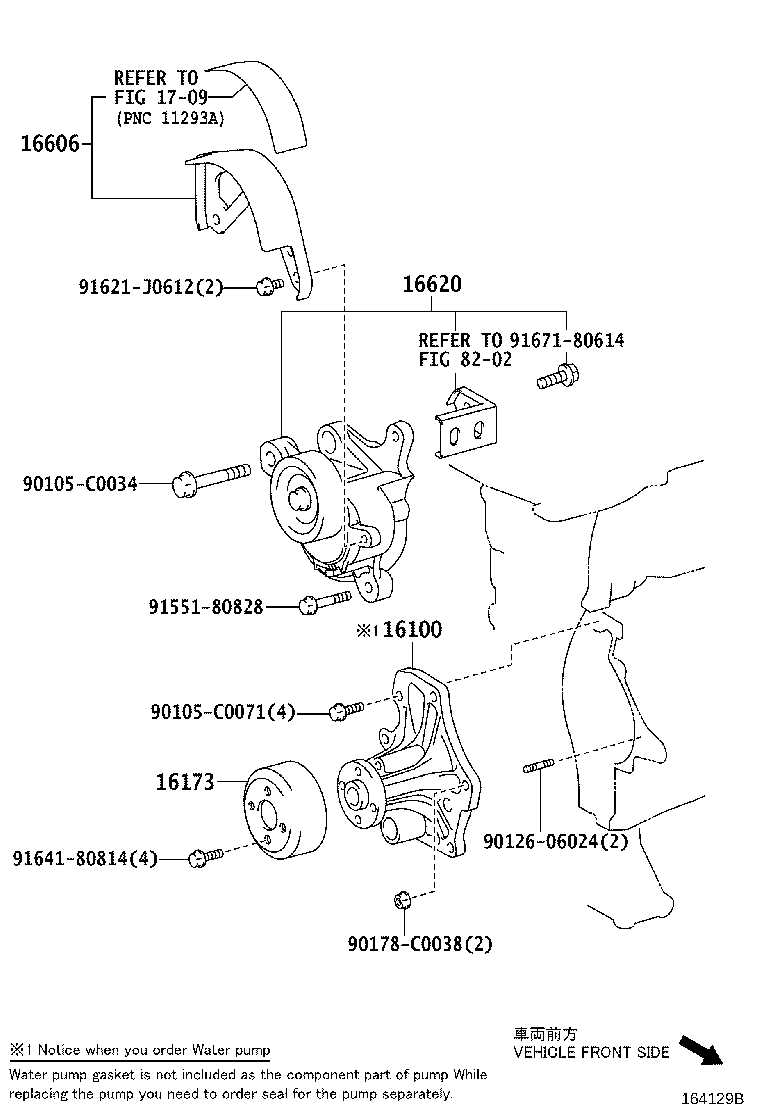

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16173 - PULLEY, WATER PUMP | ||||
| 16173-0H040 |
3AZFXE..AHV41 |
1 | ||
| 16606 - COVER SUB-ASSY, V-RIBBED BELT TENSIONER | ||||
| 16606-28040 |
3AZFXE..AHV41 |
1 | ||
| 16620 - TENSIONER ASSY, V-RIBBED BELT | ||||
| 16620-28080 |
3AZFXE..AHV41 |
1 | ||
| Common parts | ||||
| 90105-C0034 | ||||
| 90105-C0071 | ||||
| 90126-06024 | ||||
| 90178-C0038 | ||||
| 91551-80828 | ||||
| 91621-J0612 | ||||
| 91641-80814 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8202 | ||||
