AHV41L-JEXGBC (2010)

Toyota Camry (China)

Production Mar 2010 - Dec 2011
Engine 3AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0605- )

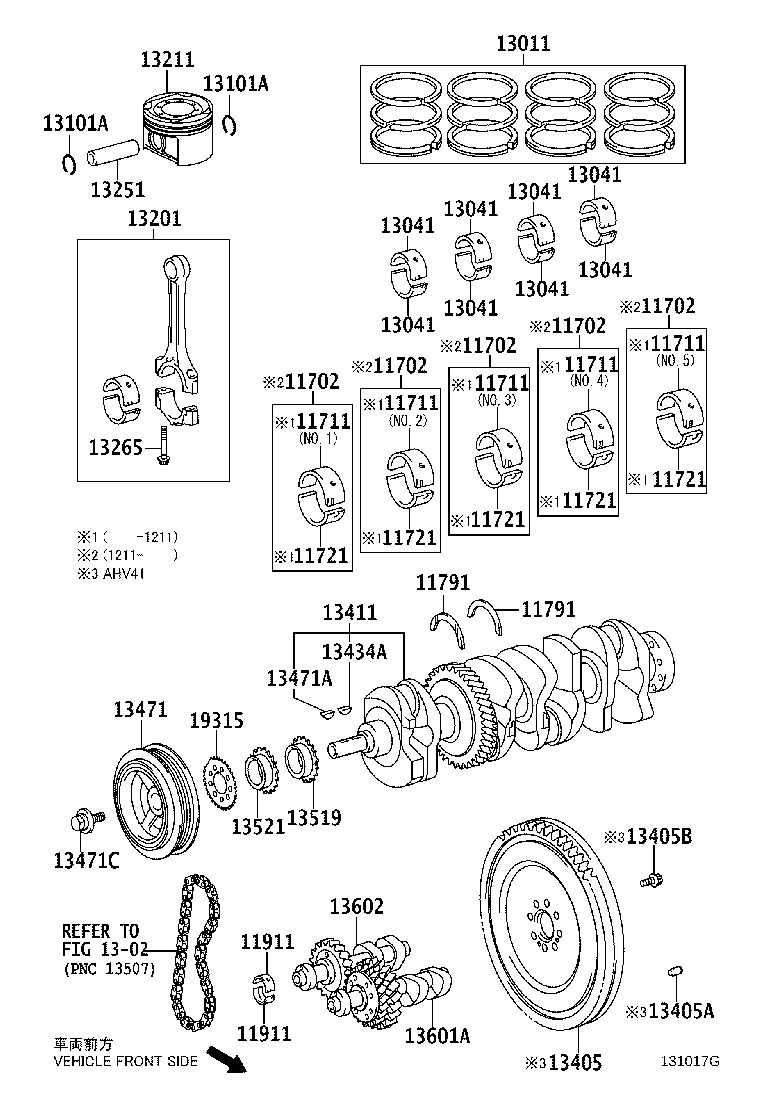

Click highlighted areas on diagram

diagram 11702 11702 11702 11702 11702 11711 11711 11711 11711 11711 11721 11721 11721 11721 11721 11791 11791 11911 11911 13011 1302 13041 13041 13041 13041 13041 13041 13041 13041 13101A 13101A 13201 13211 13251 13265 13405 13405A 13405B 13411 13434A 13471 13471A 13471C 13519 13521 13601A 13602 19315
Part # Description Qty Price
11711 - BEARING, CRANKSHAFT
11711-0H04102

3AZFXE..AHV41

MARK 2,NO.2,3,4,5 REFER R/M

 4
11731-2802001

3AZFXE..AHV41

MARK1,NO.1,REFER R/M

 1
11731-2802003

3AZFXE..AHV41

MARK3,NO.1,REFER R/M

 1
11711-0H04103

3AZFXE..AHV41

MARK 3,NO.2,3,4,5 REFER R/M

 4
11711-0H04101

3AZFXE..AHV41

MARK 1,NO.2,3,4,5 REFER R/M

 4
11731-2802004

3AZFXE..AHV41

MARK4,NO.1,REFER R/M

 1
11711-0H04104

3AZFXE..AHV41

MARK 4,NO.2,3,4,5 REFER R/M

 4
11731-2802002

3AZFXE..AHV41

MARK2,NO.1,REFER R/M

 1
11711 - BEARING, CRANKSHAFT
11711-0H04102

3AZFXE..AHV41

MARK 2,NO.2,3,4,5 REFER R/M

 4
11731-2802001

3AZFXE..AHV41

MARK1,NO.1,REFER R/M

 1
11731-2802003

3AZFXE..AHV41

MARK3,NO.1,REFER R/M

 1
11711-0H04103

3AZFXE..AHV41

MARK 3,NO.2,3,4,5 REFER R/M

 4
11711-0H04101

3AZFXE..AHV41

MARK 1,NO.2,3,4,5 REFER R/M

 4
11731-2802004

3AZFXE..AHV41

MARK4,NO.1,REFER R/M

 1
11711-0H04104

3AZFXE..AHV41

MARK 4,NO.2,3,4,5 REFER R/M

 4
11731-2802002

3AZFXE..AHV41

MARK2,NO.1,REFER R/M

 1
11711 - BEARING, CRANKSHAFT
11711-0H04102

3AZFXE..AHV41

MARK 2,NO.2,3,4,5 REFER R/M

 4
11731-2802001

3AZFXE..AHV41

MARK1,NO.1,REFER R/M

 1
11731-2802003

3AZFXE..AHV41

MARK3,NO.1,REFER R/M

 1
11711-0H04103

3AZFXE..AHV41

MARK 3,NO.2,3,4,5 REFER R/M

 4
11711-0H04101

3AZFXE..AHV41

MARK 1,NO.2,3,4,5 REFER R/M

 4
11731-2802004

3AZFXE..AHV41

MARK4,NO.1,REFER R/M

 1
11711-0H04104

3AZFXE..AHV41

MARK 4,NO.2,3,4,5 REFER R/M

 4
11731-2802002

3AZFXE..AHV41

MARK2,NO.1,REFER R/M

 1
11711 - BEARING, CRANKSHAFT
11711-0H04102

3AZFXE..AHV41

MARK 2,NO.2,3,4,5 REFER R/M

 4
11731-2802001

3AZFXE..AHV41

MARK1,NO.1,REFER R/M

 1
11731-2802003

3AZFXE..AHV41

MARK3,NO.1,REFER R/M

 1
11711-0H04103

3AZFXE..AHV41

MARK 3,NO.2,3,4,5 REFER R/M

 4
11711-0H04101

3AZFXE..AHV41

MARK 1,NO.2,3,4,5 REFER R/M

 4
11731-2802004

3AZFXE..AHV41

MARK4,NO.1,REFER R/M

 1
11711-0H04104

3AZFXE..AHV41

MARK 4,NO.2,3,4,5 REFER R/M

 4
11731-2802002

3AZFXE..AHV41

MARK2,NO.1,REFER R/M

 1
11711 - BEARING, CRANKSHAFT
11711-0H04102

3AZFXE..AHV41

MARK 2,NO.2,3,4,5 REFER R/M

 4
11731-2802001

3AZFXE..AHV41

MARK1,NO.1,REFER R/M

 1
11731-2802003

3AZFXE..AHV41

MARK3,NO.1,REFER R/M

 1
11711-0H04103

3AZFXE..AHV41

MARK 3,NO.2,3,4,5 REFER R/M

 4
11711-0H04101

3AZFXE..AHV41

MARK 1,NO.2,3,4,5 REFER R/M

 4
11731-2802004

3AZFXE..AHV41

MARK4,NO.1,REFER R/M

 1
11711-0H04104

3AZFXE..AHV41

MARK 4,NO.2,3,4,5 REFER R/M

 4
11731-2802002

3AZFXE..AHV41

MARK2,NO.1,REFER R/M

 1
13211 - PISTON
13211-28120A0

3AZFXE..AHV41

MARKA,REFER REPAIR MANUAL

 16
13211-28121A0

3AZFXE..AHV41

MARK A,REFER REPAIR MANUAL

 16
13211-28120C0

3AZFXE..AHV41

MARKC,REFER REPAIR MANUAL

 16
13211-28120B0

3AZFXE..AHV41

MARKB,REFER REPAIR MANUAL

 16
13211-28121B0

3AZFXE..AHV41

MARK B,REFER REPAIR MANUAL

 16
13211-28121C0

3AZFXE..AHV41

MARK C,REFER REPAIR MANUAL

 16
13405 - FLYWHEEL SUB-ASSY
13405-28050

3AZFXE..AHV41

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08054

3AZFXE..AHV41

L=23,OD=8

 3
13405B - BOLT, FLYWHEEL SETTING
90105-12184

3AZFXE..AHV41

 8
13471 - PULLEY, CRANKSHAFT
13470-28040

3AZFXE..AHV41

 1
Linked diagrams
1302
