AHV41L-JEXGBC (2010)

Toyota Camry (China)

Production Mar 2010 - Dec 2011
Engine 3AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0605- )

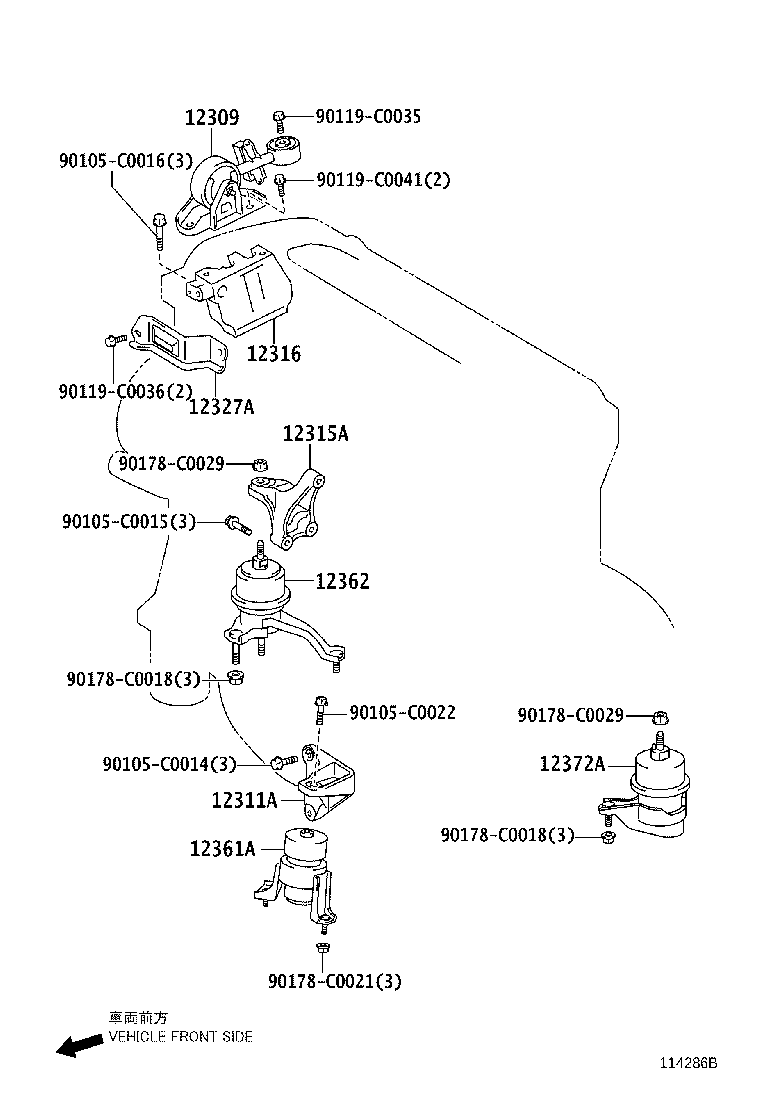

Click highlighted areas on diagram

diagram 12309 12311A 12315A 12316 12327A 12361A 12362 12372A 90105C0014 90105C0015 90105C0016 90105C0022 90119C0035 90119C0036 90119C0041 90178C0018 90178C0018 90178C0021 90178C0029 90178C0029
Part # Description Qty Price
12309 - ROD SUB-ASSY, ENGINE MOVING CONTROL
12309-0H091

1AZFE,2AZFE,3AZFXE..ACV4#,AHV41

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-28200

3AZFXE..AHV41

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0H200

3AZFXE..AHV41

 1
Common parts
90105-C0014
90105-C0015
90105-C0016
90105-C0022
90119-C0035
90119-C0036
90119-C0041
90178-C0018
90178-C0021
90178-C0029
