AHV41L-JEXGBC (2010)

Toyota Camry (China)

Production Mar 2010 - Dec 2011
Engine 3AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1003- )3AZFXE

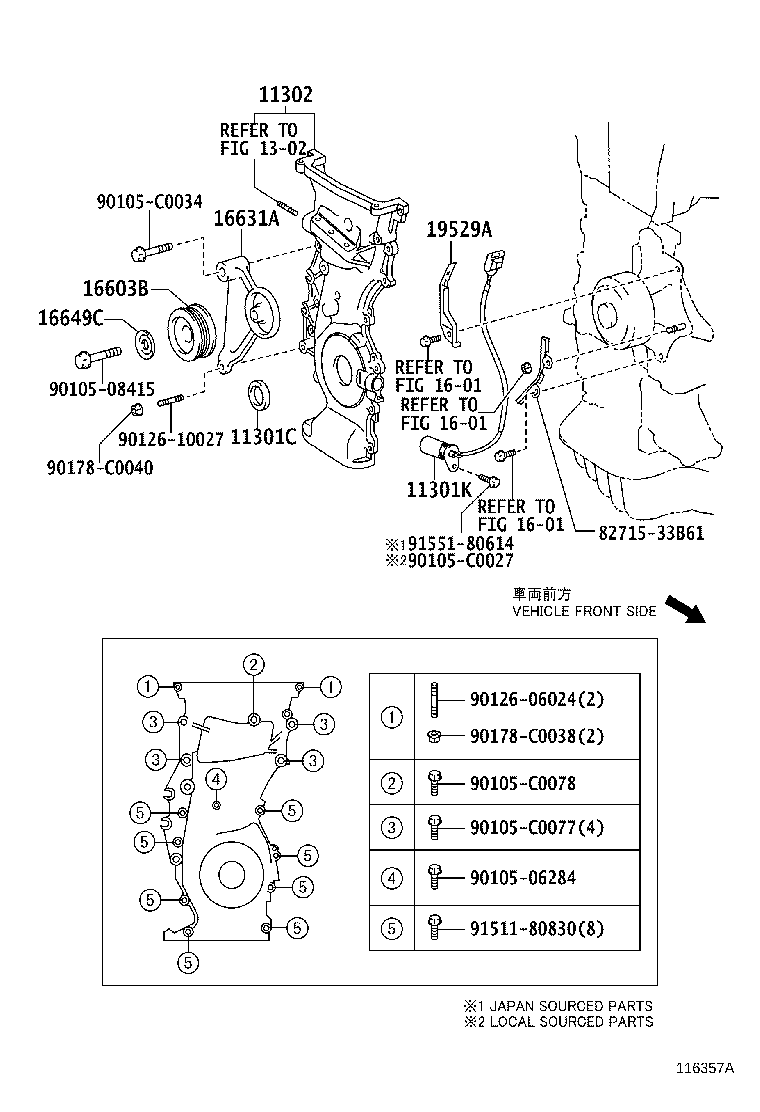

Click highlighted areas on diagram

diagram 11301C 11301K 11302 1302 1601 1601 1601 16603B 16631A 16649C 19529A 8271533B61 9010506284 9010508415 90105C0027 90105C0034 90105C0077 90105C0078 9012606024 9012610027 90178C0038 90178C0040 9151180830 9155180614
Part # Description Qty Price
16603B - PULLEY SUB-ASSY, IDLER
16603-28030

3AZFXE..AHV41

 1
16631A - BRACKET, IDLER PULLEY
16631-28020

3AZFXE..AHV41

 1
16649C - PLATE, IDLER PULLEY COVER
16649-28010

3AZFXE..AHV41

 1
Common parts
82715-33B61
90105-06284
90105-08415
90105-C0027
90105-C0034
90105-C0077
90105-C0078
90126-06024
90126-10027
90178-C0038
90178-C0040
91511-80830
91551-80614
Linked diagrams
1302
1601
