AHV41L-JEXGBC (2010)

Toyota Camry (China)

Production Mar 2010 - Dec 2011
Engine 3AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

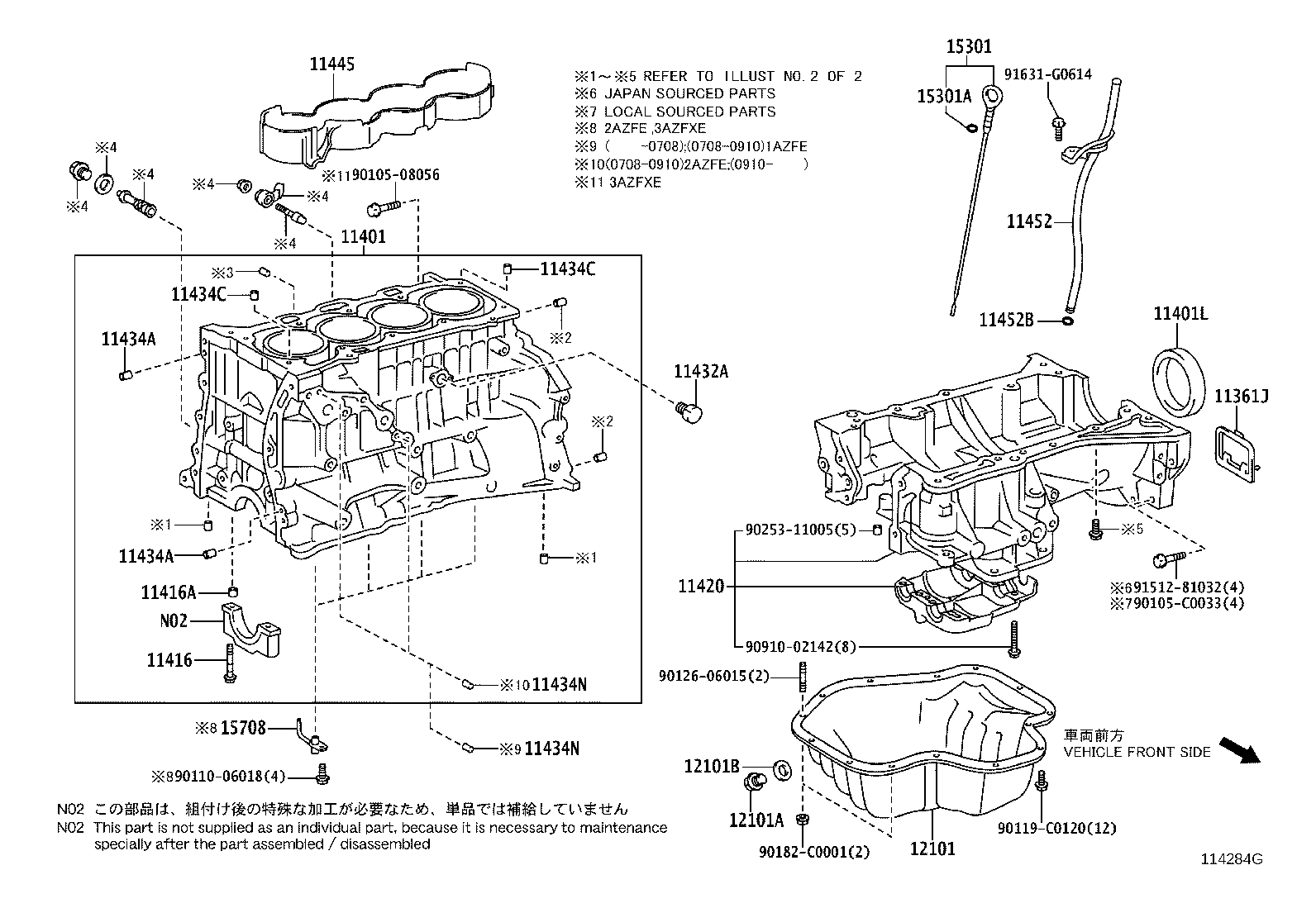

ILLUST NO. 1 OF 2(0605- )

Click highlighted areas on diagram

diagram 11361J 11401 11401L 11416 11416A 11420 11432A 11434A 11434A 11434C 11434C 11434N 11434N 11445 11452 11452B 12101 12101A 12101B 15301 15301A 15708 9010508056 90105C0033 9011006018 90119C0120 9012606015 90182C0001 9025311005 9091002142 9151281032 91631G0614
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11410-09420

3AZFXE..AHV41

 1
11420 - CRANKCASE ASSY, STIFFENING
11420-0H051

1AZFE,2AZFE,3AZFXE..ACV4#,AHV41

(L)

 1
11420-28021

1AZFE,2AZFE,3AZFXE..ACV4#,AHV41

(J)

 1
Common parts
90105-08056
90105-C0033
90110-06018
90119-C0120
90126-06015
90182-C0001
90253-11005
90910-02142
91512-81032
91631-G0614

ILLUST NO. 2 OF 2(0605- )

Click highlighted areas on diagram

diagram 11432T 11432U 11434B 11434Y 15678B 8401 8401 8401 9010508439 90105C0074 9025006003
Part # Description Qty Price
Common parts
90105-08439
90105-C0074
90250-06003
Linked diagrams
8401
