ACV41L-JEPNKC (2006)
Toyota Camry (China)
Production
May 2006
-
Mar 2009
Engine
1AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0605- )ACV4#

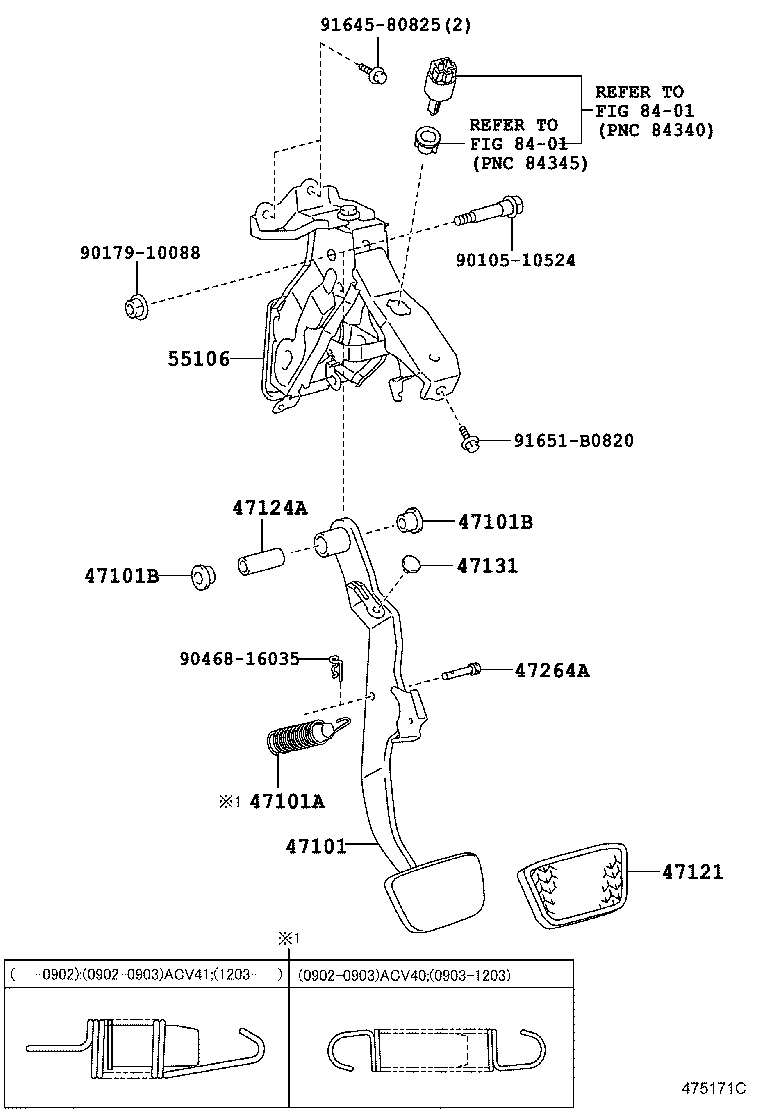

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-06190 |
ACV4# |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-14036 |
ACV41 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
ACV41 |
2 | ||
| 90386-13015 |
ACV4#,AHV41 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
ACV41 |
2 | ||
| 90386-13015 |
ACV4#,AHV41 |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-06010 |
ACV4#,AHV41 |
1 | ||
| 47121-06010 |
ACV41 (L) |
1 | ||
| 47121-50020 |
ACV41 (J) |
1 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 90387-10003 |
ACV4#,AHV41 |
1 | ||
| 90387-10003 |
ACV41 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06036 |
ACV41 |
1 | ||
| 90541-06036 |
ACV4#,AHV41 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 47148-33011 |
ACV41 |
1 | ||
| 47148-33011 |
ACV4#,AHV41 |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-06080 |
ACV41 |
1 | ||
| 55106-06080 |
ACV4# |
1 | ||
| Common parts | ||||
| 90105-10524 | ||||
| 90179-10088 | ||||
| 90468-16035 | ||||
| 91645-80825 | ||||
| 91651-B0820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
