ACV41L-JEPNKC (2006)

Toyota Camry (China)

Production May 2006 - Mar 2009
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0605-0902)2AZFE ; (0605-0903)1AZFE

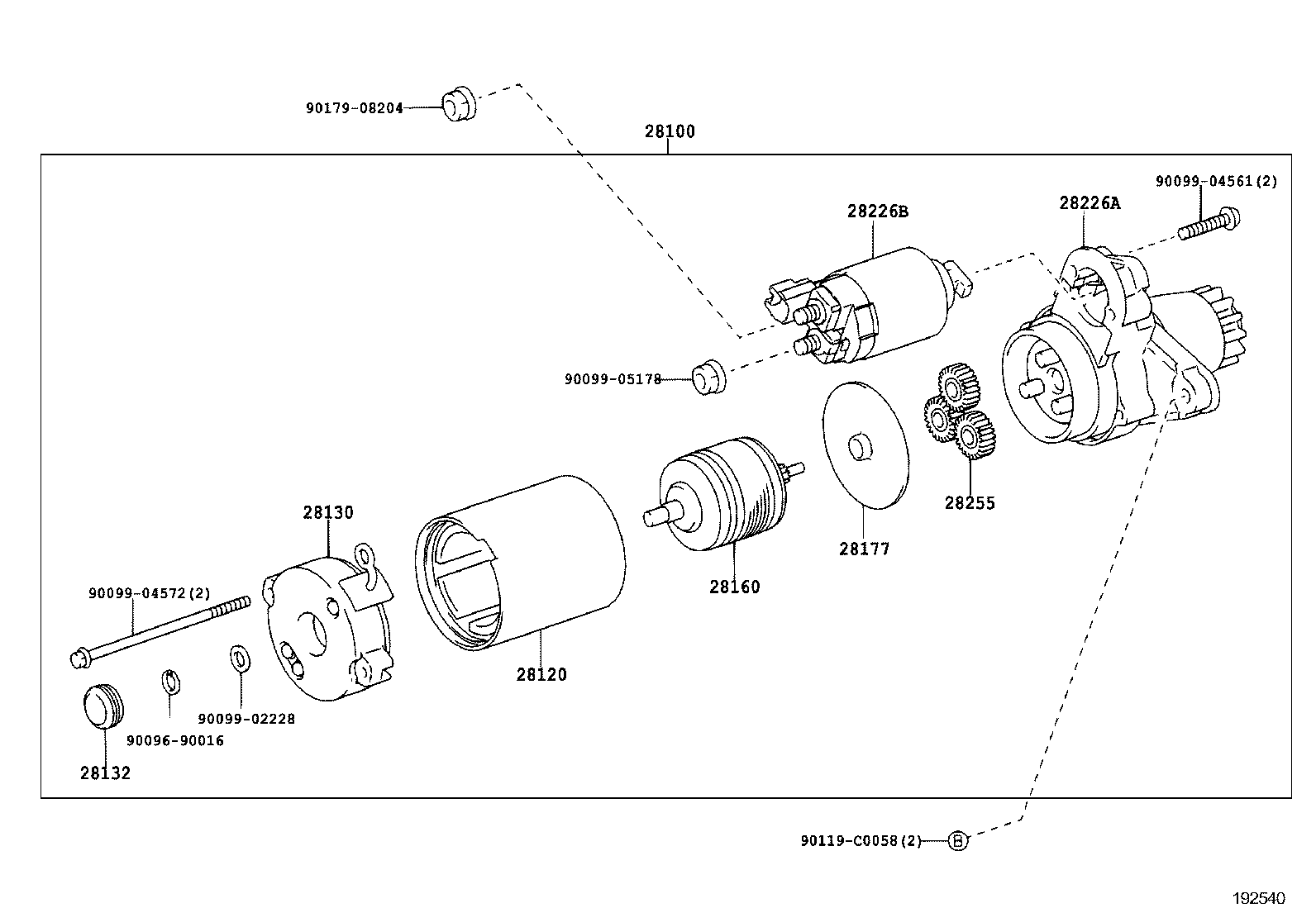

Click highlighted areas on diagram

12V 1.7KW

diagram 28100 28120 28130 28132 28160 28177 28226A 28226B 28255 9009690016 9009902228 9009904561 9009904572 9009905178 90119C0058 9017908204
Part # Description Qty Price
28100 - STARTER ASSY
28100-0H080

1AZFE..ACV41

12V 1.7KW

 1
28120 - YOKE ASSY, STARTER
28120-0H120

1AZFE..ACV41

 1
28120-28040

1AZFE,2AZFE..ACV4#

 1
28120-0H120

1AZFE,2AZFE..ACV4#

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-0H120

1AZFE..ACV41

 1
28130-20020

1AZFE,2AZFE..ACV4#

 1
28130-0H120

1AZFE,2AZFE..ACV4#

 1
28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING)
28132-28040

1AZFE..ACV41

 1
28160 - ARMATURE ASSY, STARTER
28160-28040

1AZFE,2AZFE..ACV4#

 1
28160-28040

1AZFE..ACV41

 1
28177 - PLATE(FOR STARTER ARMATURE)
28177-0H120

1AZFE,2AZFE..ACV4#

 1
28177-28040

1AZFE..ACV41

 1
28226A - STARTER KIT, MOTOR TERMINAL
28226-28041

1AZFE..ACV41

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-0H120

1AZFE,2AZFE..ACV4#

 1
28226-28051

1AZFE..ACV41

 1
28255 - GEAR, PLANET
28255-20020

1AZFE,2AZFE..ACV4#

 3
28255-20020

1AZFE..ACV41

 3
Common parts
90096-90016
90099-02228
90099-04561
90099-04572
90099-05178
90119-C0058
90179-08204

(0902- )2AZFE ; (0903- )1AZFE

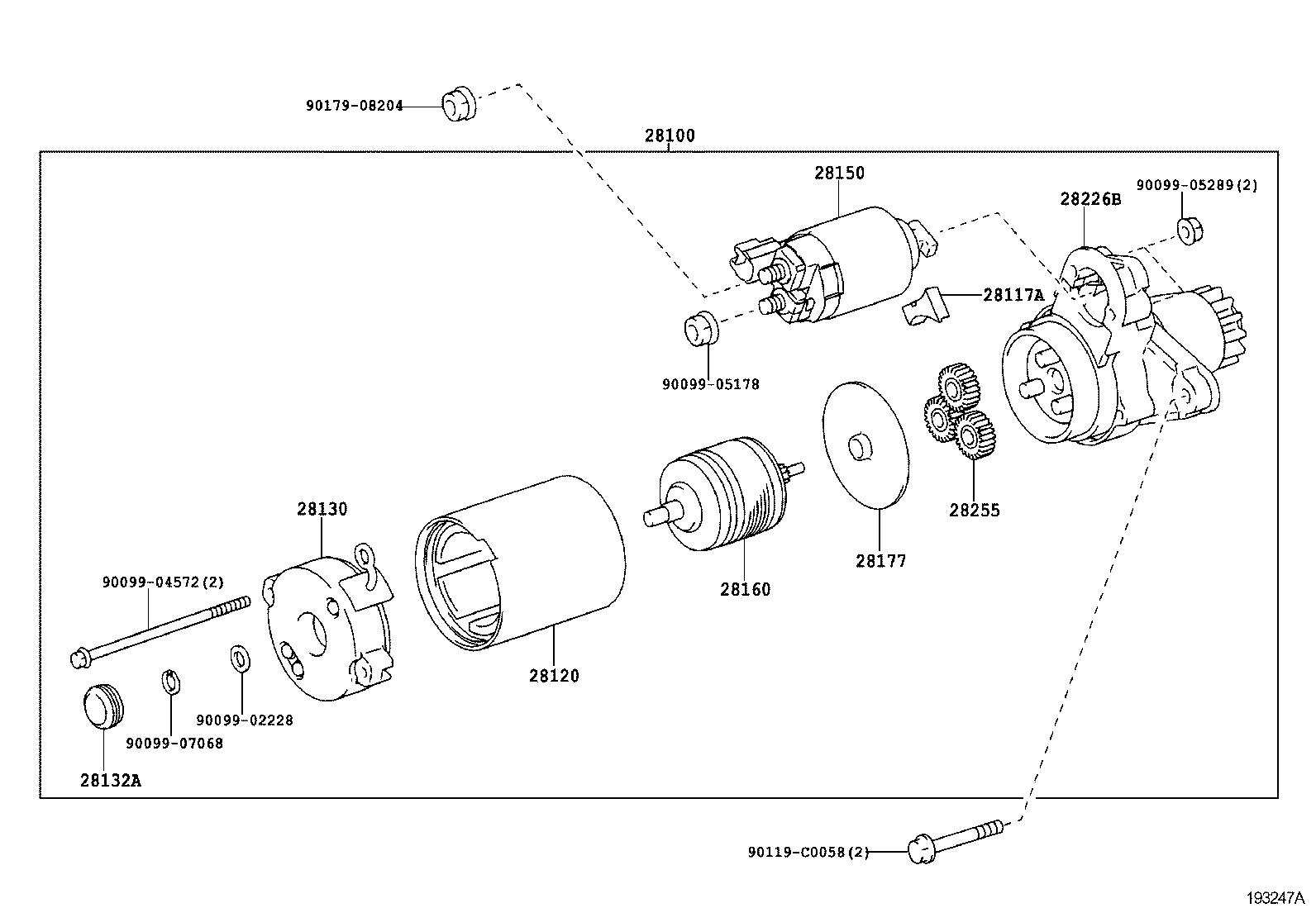

Click highlighted areas on diagram

12V 1.7KW

diagram 28100 28117A 28120 28130 28132A 28150 28160 28177 28226B 28255 9009902228 9009904572 9009905178 9009905289 9009907068 90119C0058 9017908204
Part # Description Qty Price
28100 - STARTER ASSY
28100-0H080

1AZFE..ACV41

12V 1.7KW

 1
28117A - SEAL, RUBBER
28117-0H120

1AZFE,2AZFE..ACV4#

 1
28120 - YOKE ASSY, STARTER
28120-0H120

1AZFE..ACV41

 1
28120-28040

1AZFE,2AZFE..ACV4#

 1
28120-0H120

1AZFE,2AZFE..ACV4#

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-0H120

1AZFE..ACV41

 1
28130-20020

1AZFE,2AZFE..ACV4#

 1
28130-0H120

1AZFE,2AZFE..ACV4#

 1
28132A - COVER, STARTER COMMUTATOR END FRAME
28132-28040

1AZFE,2AZFE..ACV4#

 1
28160 - ARMATURE ASSY, STARTER
28160-28040

1AZFE,2AZFE..ACV4#

 1
28160-28040

1AZFE..ACV41

 1
28177 - PLATE(FOR STARTER ARMATURE)
28177-0H120

1AZFE,2AZFE..ACV4#

 1
28177-28040

1AZFE..ACV41

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-0H120

1AZFE,2AZFE..ACV4#

 1
28226-28051

1AZFE..ACV41

 1
28255 - GEAR, PLANET
28255-20020

1AZFE,2AZFE..ACV4#

 3
28255-20020

1AZFE..ACV41

 3
Common parts
90099-02228
90099-04572
90099-05178
90099-05289
90099-07068
90119-C0058
90179-08204
