ACV40L-JEAEKC (2009)
Toyota Camry (China)
Production
Feb 2009
-
Dec 2011
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

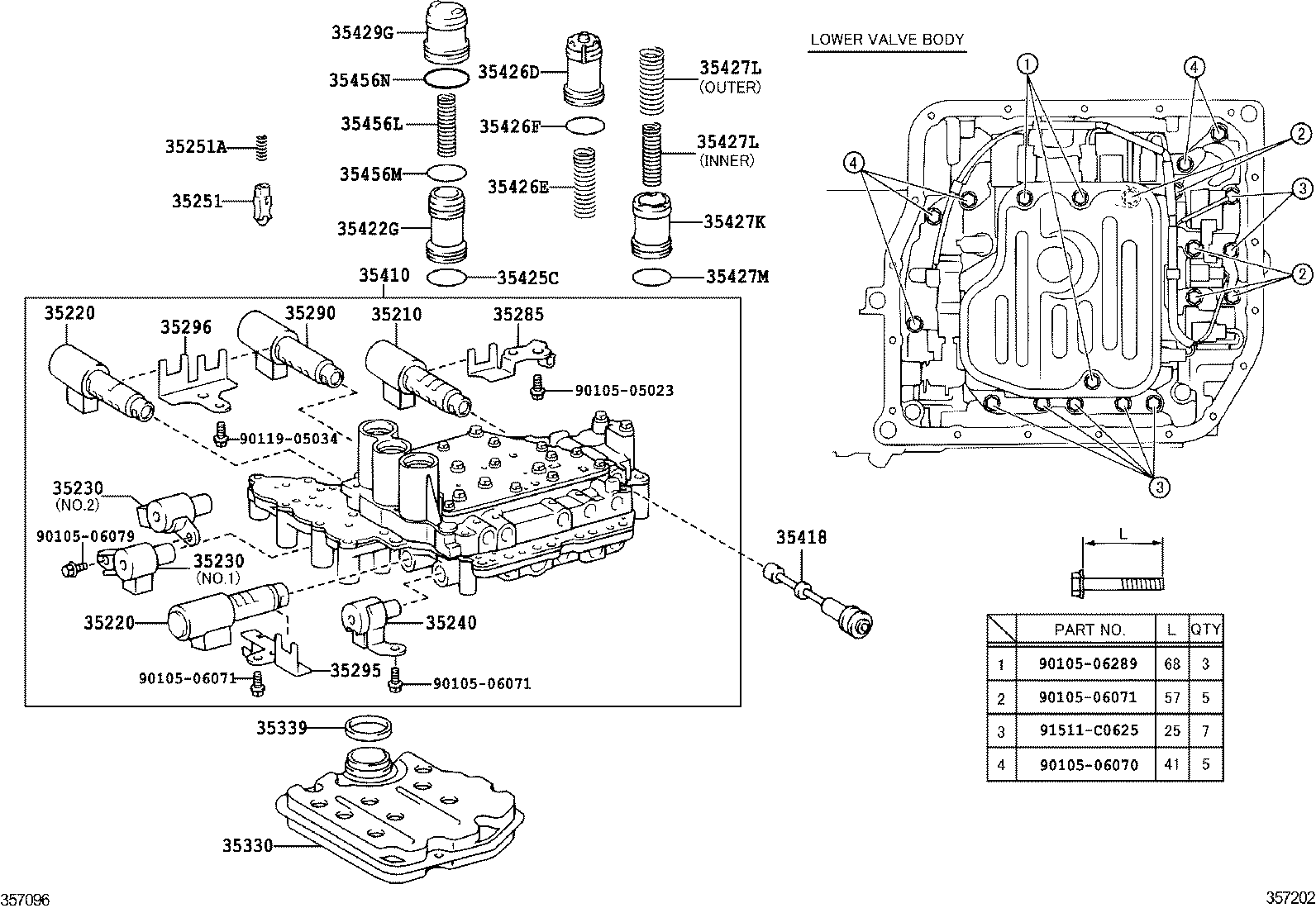

ILLUST NO. 1 OF 2(0902- )ACV40
Click highlighted areas on diagram
U250E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1 | ||||
| 35210-45010 |
ACV40 |
1 | ||
| 35210-33020 |
ACV40 |
1 | ||
| 35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2 | ||||
| 35220-33020 |
ACV40 |
2 | ||
| 35220-45010 |
ACV40 |
2 | ||
| 35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2 | ||||
| 35220-33020 |
ACV40 |
2 | ||
| 35220-45010 |
ACV40 |
2 | ||
| 35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2 | ||||
| 35230-33010 |
ACV40 NO.1 |
1 | ||
| 35230-33020 |
ACV40 NO.2 |
1 | ||
| 35230-33010 |
ACV40 NO.1 |
1 | ||
| 35230-33020 |
ACV40 NO.2 |
1 | ||
| 35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2 | ||||
| 35230-33010 |
ACV40 NO.1 |
1 | ||
| 35230-33020 |
ACV40 NO.2 |
1 | ||
| 35230-33010 |
ACV40 NO.1 |
1 | ||
| 35230-33020 |
ACV40 NO.2 |
1 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-33030 |
ACV40 |
1 | ||
| 35240-33030 |
ACV40 |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
ACV40 |
1 | ||
| 35251-30020 |
ACV4# |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
ACV40 |
1 | ||
| 90501-03005 |
ACV4# |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-33030 |
ACV40 |
1 | ||
| 35285-45010 |
ACV40 |
1 | ||
| 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-45010 |
ACV40 |
1 | ||
| 35290-33020 |
ACV40 |
1 | ||
| 35295 - PLATE, SOLENOID LOCK, NO.2 | ||||
| 35295-33010 |
ACV40 |
1 | ||
| 35295-45010 |
ACV40 |
1 | ||
| 35296 - PLATE, SOLENOID LOCK, NO.3 | ||||
| 35296-33010 |
ACV40 |
1 | ||
| 35296-45010 |
ACV40 |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-08010 |
ACV40 |
1 | ||
| 35330-08010 |
ACV40 |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 90301-32012 |
ACV40 |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-33130 |
ACV40 |
1 | ||
| 35410-33151 |
ACV40 |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-33010 |
ACV40 |
1 | ||
| 35418-33010 |
ACV40 |
1 | ||
| 35422G - PISTON, REVERSE CLUTCH ACCUMULATOR | ||||
| 35422-33040 |
ACV40 |
1 | ||
| 35422-33050 |
ACV40 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-30007 |
ACV40 |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35406-21010 |
ACV40 |
1 | ||
| 35406-21010 |
ACV4# |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-22056 |
ACV40 |
1 | ||
| 90501-22056 |
ACV40 |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-30007 |
ACV4# |
1 | ||
| 90301-30007 |
ACV40 |
1 | ||
| 35427K - PISTON, B-3 ACCUMULATOR | ||||
| 35427-28010 |
ACV40 |
1 | ||
| 35427-21010 |
ACV4# |
1 | ||
| 35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90501-26096 |
ACV40 OUTER |
1 | ||
| 90501-19037 |
ACV40 INNER |
1 | ||
| 90501-26096 |
ACV40 OUTER |
1 | ||
| 90501-19037 |
ACV40 INNER |
1 | ||
| 35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90501-26096 |
ACV40 OUTER |
1 | ||
| 90501-19037 |
ACV40 INNER |
1 | ||
| 90501-26096 |
ACV40 OUTER |
1 | ||
| 90501-19037 |
ACV40 INNER |
1 | ||
| 35427M - RING, O (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90301-28008 |
ACV40 |
1 | ||
| 90301-28008 |
ACV4# |
1 | ||
| 35429G - SLEEVE, REVERSE CLUTCH ACCUMULATOR | ||||
| 35429-33020 |
ACV40 |
1 | ||
| 35456L - SPRING, COMPRESSION (FOR C-2 CONTROL VALVE) | ||||
| 90501-19038 |
ACV40 |
1 | ||
| 90501-19038 |
ACV40 |
1 | ||
| 35456M - RING, O (FOR C-2 CONTROL) | ||||
| 90301-19016 |
ACV40 |
1 | ||
| 90301-19016 |
ACV40 |
1 | ||
| 35456N - RING, O (FOR C-2 CONTROL) | ||||
| 90301-28011 |
ACV40 |
1 | ||
| Common parts | ||||
| 90105-05023 | ||||
| 90105-06070 | ||||
| 90105-06071 | ||||
| 90105-06079 | ||||
| 90105-06289 | ||||
| 90119-05034 | ||||
| 91511-C0625 | ||||

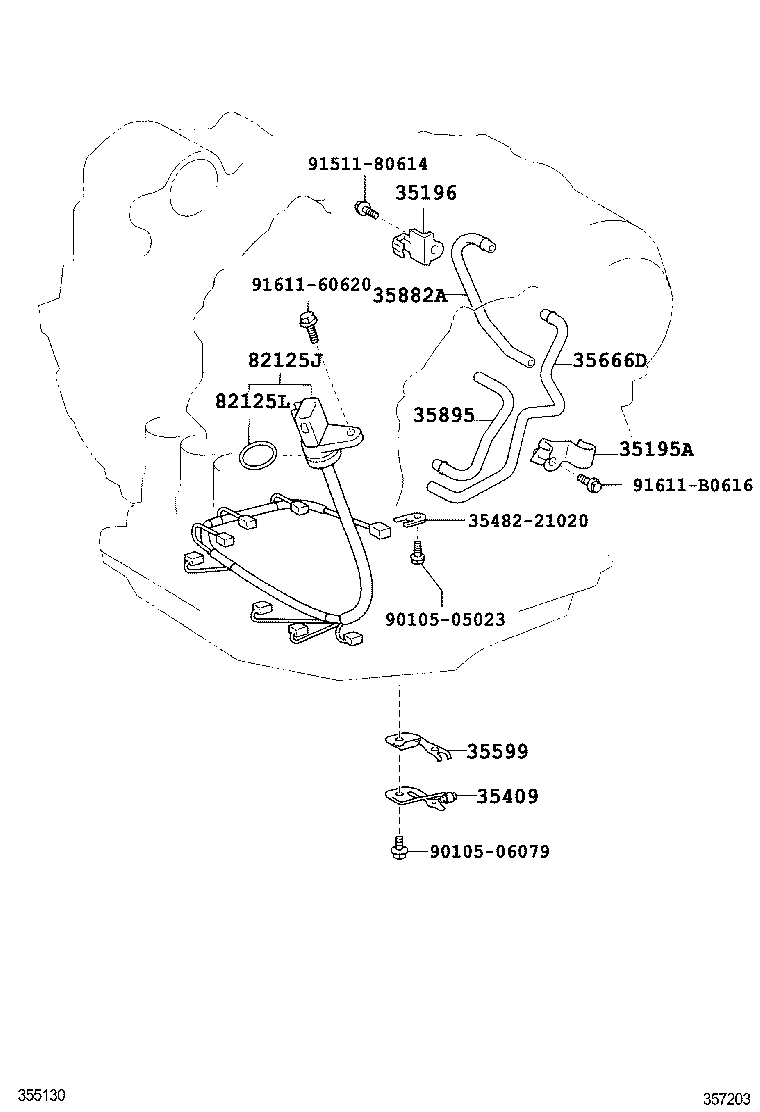

ILLUST NO. 2 OF 2(0902- )ACV40
Click highlighted areas on diagram
U250E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1 | ||||
| 35195-21010 |
ACV40 |
1 | ||
| 35195-21010 |
ACV4# |
1 | ||
| 35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2 | ||||
| 35196-21010 |
ACV40 |
1 | ||
| 35196-21010 |
ACV4# |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-21010 |
ACV4# |
1 | ||
| 35409-21010 |
ACV40 |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-21010 |
ACV4# |
1 | ||
| 35599-21010 |
ACV40 |
1 | ||
| 35666D - TUBE, BRAKE APPLY | ||||
| 35666-33030 |
ACV40 |
1 | ||
| 35666-33020 |
ACV40 |
1 | ||
| 35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-28020 |
ACV40 |
1 | ||
| 35882-32020 |
ACV4# |
1 | ||
| 35895 - TUBE, FRONT CLUTCH APPLY | ||||
| 35895-21010 |
ACV4# |
1 | ||
| 35895-28010 |
ACV40 |
1 | ||
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-48010 |
ACV40 |
1 | ||
| 82125-33060 |
ACV40 |
1 | ||
| 82125L - RING, O(FOR TRANSMISSION WIRE) | ||||
| 90301-21009 |
ACV4# |
1 | ||
| 90301-21009 |
ACV40 |
1 | ||
| Common parts | ||||
| 35482-21020 | ||||
| 90105-05023 | ||||
| 90105-06079 | ||||
| 91511-80614 | ||||
| 91611-60620 | ||||
| 91611-B0616 | ||||
