VZV21R-UEPGKQ (1988)
Toyota Camry
ILLUST NO. 3 OF 6(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80005 |
VZV21 TOKAIRIKA |
1 | ||
| 84112-80007 |
VZV21 MATSUSHITA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12220 |
VZV21 TOKAIRIKA |
1 | ||
| 84140-12210 |
VZV21 MATSUSHITA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-32640 |
VZV21 |
1 | ||
| 84310-32730 |
VZV21 W(CRUISE CONTROL) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
VZV21 TOKAIRIKA |
1 | ||
| 84312-12050 |
VZV21 MATSUSHITA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12010 |
VZV21 MATSUSHITA |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-32650 |
VZV21 W(CRUISE CONTROL),MATSUSHITA |
1 | ||
| 84652-32600 |
VZV21 TOKAIRIKA |
1 | ||
| 84652-32660 |
VZV21 W(CRUISE CONTROL),TOKAIRIKA |
1 | ||
| 84652-32590 |
VZV21 MATSUSHITA |
1 | ||
| Common parts | ||||
| 82711-20300 | ||||
| 93319-15012 | ||||

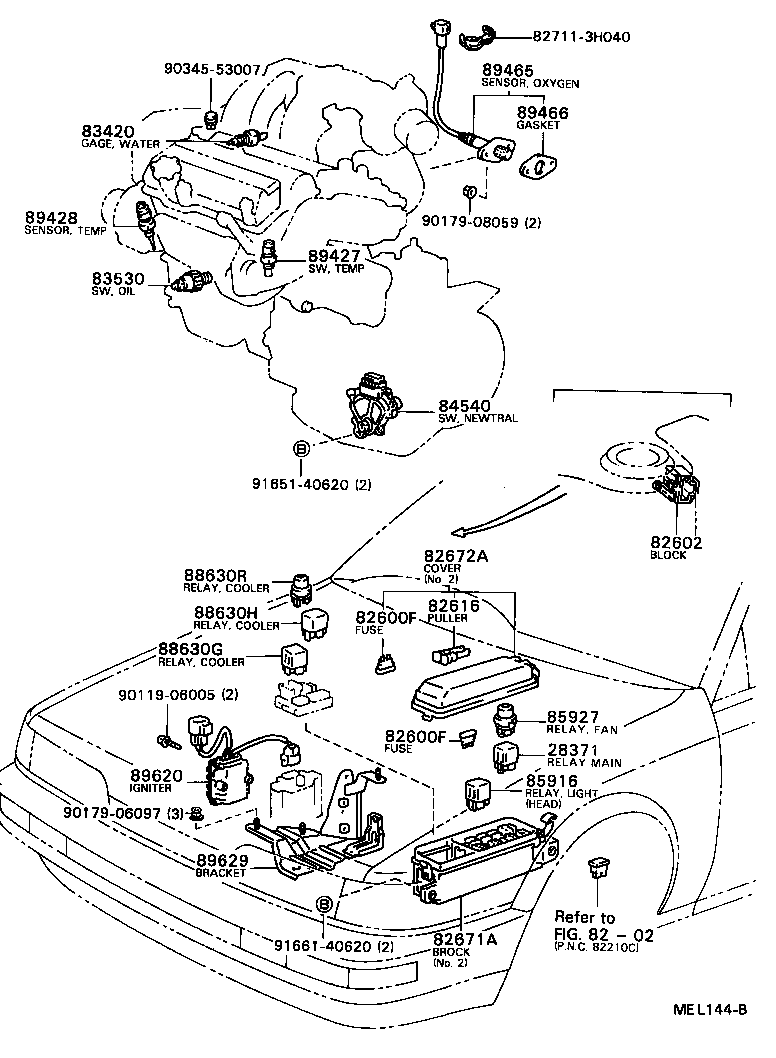

ILLUST NO. 1 OF 6(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 85925-17010 |
2VZFE..VZV21 |
1 | ||
| 90987-04002 |
2VZFE..VZV21 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
VZV21 7.5A |
2 | ||
| 90982-09002 |
VZV21 10A |
1 | ||
| 90982-09003 |
VZV21 15A |
5 | ||
| 90982-09004 |
VZV21 20A,YELLOW |
1 | ||
| 90982-09004 |
VZV21 20A,YELLOW |
2 | ||
| 90982-09005 |
VZV21 7.5A |
5 | ||
| 90982-09003 |
VZV21 15A |
4 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
VZV21 7.5A |
2 | ||
| 90982-09002 |
VZV21 10A |
1 | ||
| 90982-09003 |
VZV21 15A |
5 | ||
| 90982-09004 |
VZV21 20A,YELLOW |
1 | ||
| 90982-09004 |
VZV21 20A,YELLOW |
2 | ||
| 90982-09005 |
VZV21 7.5A |
5 | ||
| 90982-09003 |
VZV21 15A |
4 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-32080 |
VZV21 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
VZV21 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-32030 |
VZV21 NO.2 |
1 | ||
| 82671-14010 |
VZV21 NO.1 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-32150 |
VZV21 NO.1 |
1 | ||
| 82672-32350 |
VZV21 NO.2 |
1 | ||
| 82672-32190 |
VZV21 NO.1 |
1 | ||
| 82672-32200 |
VZV21 NO.2 |
1 | ||
| 82672-32040 |
VZV21 NO.3 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
VZV21 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30080 |
VZV21 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-32090 |
VZV21 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
VZV21 NIPPONDENSO,TAIL LAMP |
1 | ||
| 90987-02002 |
VZV21 MARUKO,TAIL LAMP |
1 | ||
| 90987-02006 |
VZV21 HEADLAMP |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
VZV21 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 85926-30020 |
VZV21 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 88630-32010 |
VZV21 |
1 | ||
| 88630R - RELAY ASSY, COOLER, NO.3 | ||||
| 90987-02004 |
VZV21 |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89429-32020 |
VZV21 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-20060 |
VZV21 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29285 |
VZV21 |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
VZV21 |
1 | ||
| 89466-30010 |
VZV21 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-32110 |
VZV21 |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-32071 |
VZV21 |
1 | ||
| 89629-32070 |
VZV21 |
1 | ||
| Common parts | ||||
| 82711-3H040 | ||||
| 90119-06005 | ||||
| 90179-06097 | ||||
| 90179-08059 | ||||
| 90345-53007 | ||||
| 91651-40620 | ||||
| 91661-40620 | ||||
| Linked diagrams | ||||
| 8202 | ||||

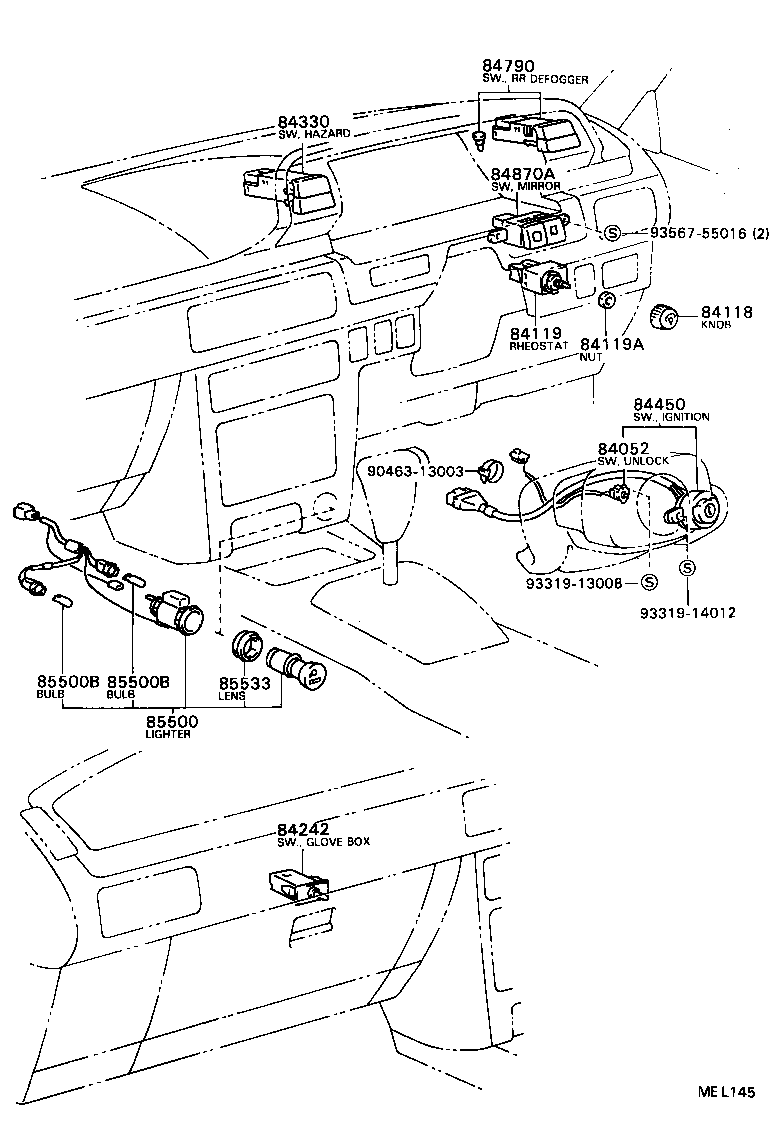

ILLUST NO. 2 OF 6(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-10020 |
VZV21 |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20011 |
VZV21 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-32080 |
VZV21 W(DIGITAL SPEEDOMETER) |
1 | ||
| 84119-20082 |
VZV21 |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09167 |
VZV21 |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
VZV21 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-32060 |
VZV21 W(CRUISE CONTROL) |
1 | ||
| 84332-32140 |
VZV21 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-32040 |
VZV21 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-32120 |
VZV21 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-3206003 |
VZV21 MEDIUM GRAY,TRIM1# |
1 | ||
| 84870-3206004 |
VZV21 DARK BLUE,TRIM8# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-32051 |
VZV21 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
VZV21 14V 1.4W |
2 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
VZV21 14V 1.4W |
2 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-32010 |
VZV21 |
1 | ||
| Common parts | ||||
| 90463-13003 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93567-55016 | ||||

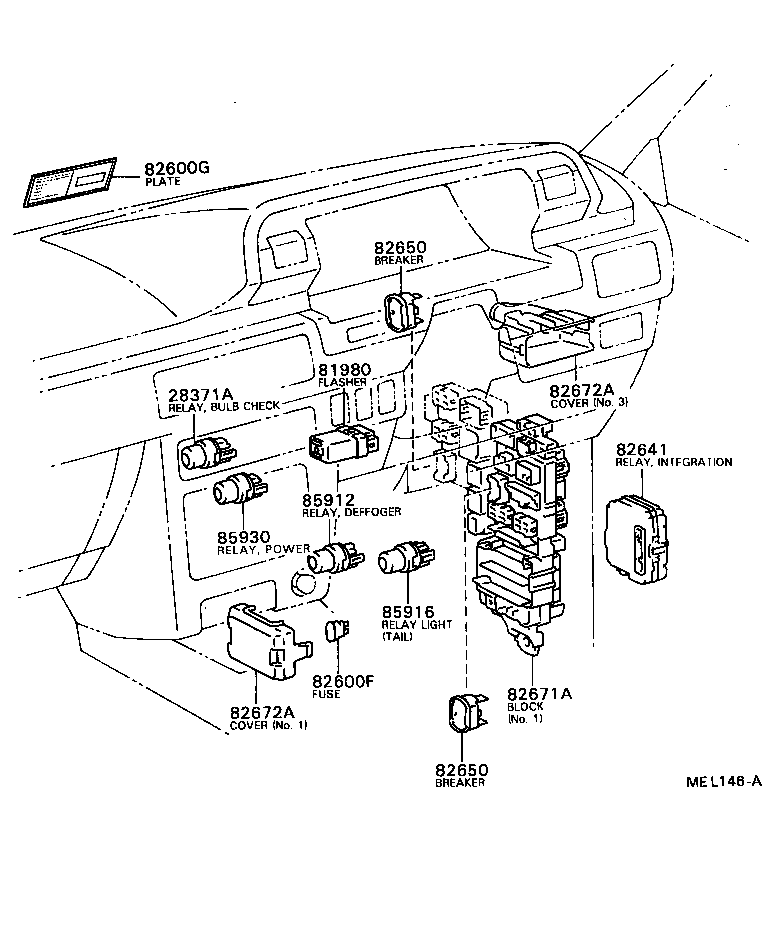

ILLUST NO. 4 OF 6(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371A - RELAY, BULB CHECK | ||||
| 90987-02004 |
2VZFE..VZV21 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
VZV21 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
VZV21 7.5A |
2 | ||
| 90982-09002 |
VZV21 10A |
1 | ||
| 90982-09003 |
VZV21 15A |
5 | ||
| 90982-09004 |
VZV21 20A,YELLOW |
1 | ||
| 90982-09004 |
VZV21 20A,YELLOW |
2 | ||
| 90982-09005 |
VZV21 7.5A |
5 | ||
| 90982-09003 |
VZV21 15A |
4 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82685-32011 |
VZV21 |
1 | ||
| 82685-32010 |
VZV21 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-32021 |
VZV21 |
1 | ||
| 82641-32020 |
VZV21 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
VZV21 30A |
1 | ||
| 82650-20020 |
VZV21 40A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
VZV21 30A |
1 | ||
| 82650-20020 |
VZV21 40A |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-32030 |
VZV21 NO.2 |
1 | ||
| 82671-14010 |
VZV21 NO.1 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-32150 |
VZV21 NO.1 |
1 | ||
| 82672-32350 |
VZV21 NO.2 |
1 | ||
| 82672-32190 |
VZV21 NO.1 |
1 | ||
| 82672-32200 |
VZV21 NO.2 |
1 | ||
| 82672-32040 |
VZV21 NO.3 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-32150 |
VZV21 NO.1 |
1 | ||
| 82672-32350 |
VZV21 NO.2 |
1 | ||
| 82672-32190 |
VZV21 NO.1 |
1 | ||
| 82672-32200 |
VZV21 NO.2 |
1 | ||
| 82672-32040 |
VZV21 NO.3 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
VZV21 MARUKO |
1 | ||
| 90987-02004 |
VZV21 NIPPONDENSO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
VZV21 NIPPONDENSO,TAIL LAMP |
1 | ||
| 90987-02002 |
VZV21 MARUKO,TAIL LAMP |
1 | ||
| 90987-02006 |
VZV21 HEADLAMP |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02002 |
VZV21 MARUKO |
1 | ||
| 90987-02004 |
VZV21 NIPPONDENSO |
1 | ||

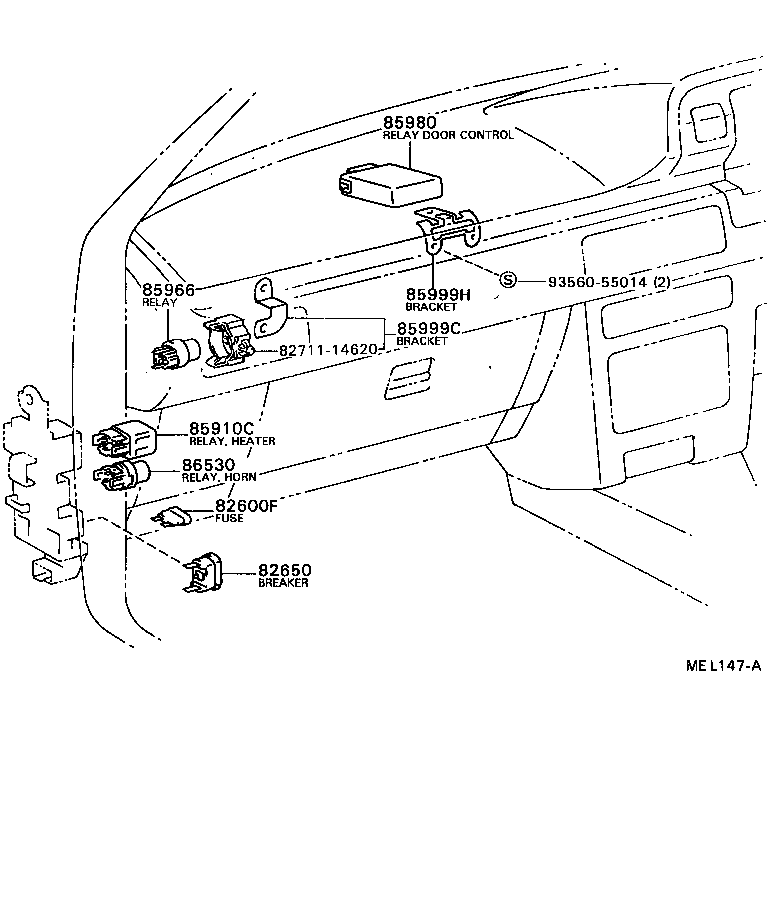

ILLUST NO. 5 OF 6(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
VZV21 7.5A |
2 | ||
| 90982-09002 |
VZV21 10A |
1 | ||
| 90982-09003 |
VZV21 15A |
5 | ||
| 90982-09004 |
VZV21 20A,YELLOW |
1 | ||
| 90982-09004 |
VZV21 20A,YELLOW |
2 | ||
| 90982-09005 |
VZV21 7.5A |
5 | ||
| 90982-09003 |
VZV21 15A |
4 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
VZV21 30A |
1 | ||
| 82650-20020 |
VZV21 40A |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
VZV21 |
1 | ||
| 85966 - RELAY,CORNERING LAMP CONTROL | ||||
| 90987-02004 |
VZV21 |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-32070 |
VZV21 |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-32120 |
VZV21 |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-32030 |
VZV21 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02002 |
VZV21 MARUKO |
1 | ||
| 90987-02004 |
VZV21 DENSO |
1 | ||
| Common parts | ||||
| 82711-14620 | ||||
| 93560-55014 | ||||

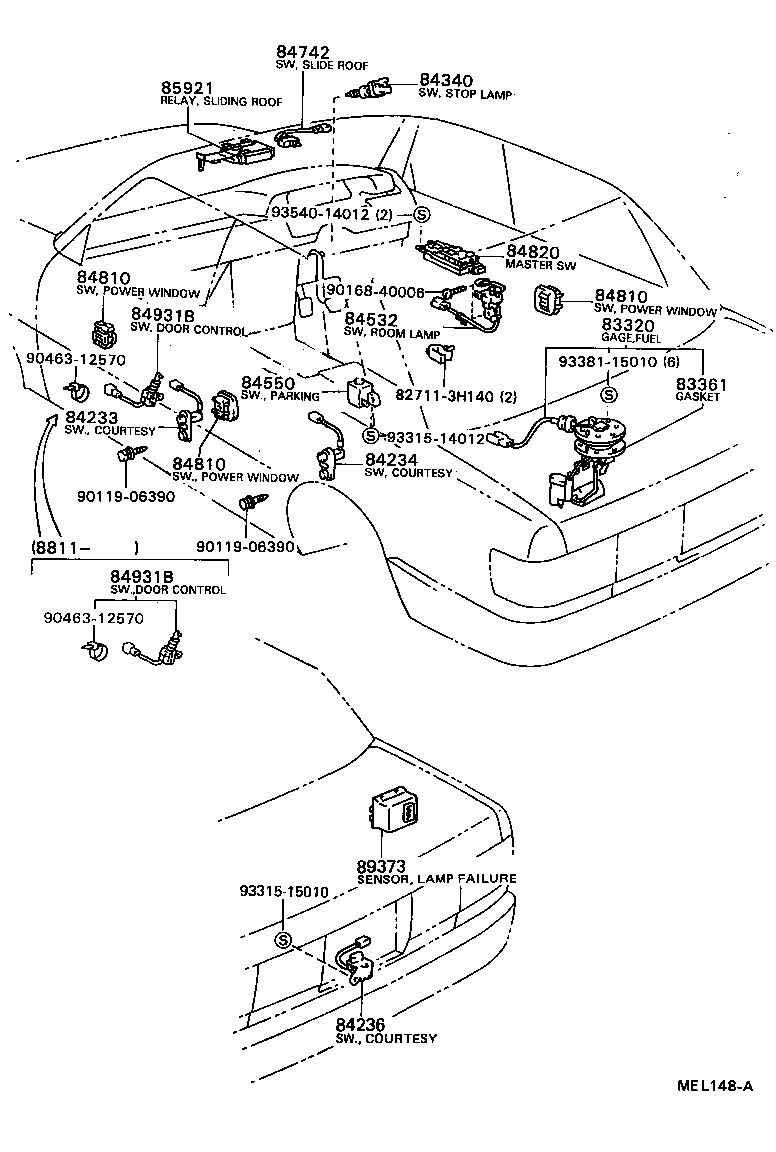

ILLUST NO. 6 OF 6(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39765 |
VZV21 |
1 | ||
| 83320-39795 |
VZV21 W(DIGITAL SPEEDOMETER) |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
VZV21 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32070 |
VZV21 |
2 | ||
| 84231-32020 |
VZV21 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-24010 |
VZV21 |
2 | ||
| 84231-12070 |
VZV21 |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20110 |
VZV21 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32030 |
VZV21 |
1 | ||
| 84340-22100 |
VZV21 W(CRUISE CONTROL) |
1 | ||
| 84532 - SWITCH, ROOM LAMP RETAINER | ||||
| 84532-32040 |
VZV21 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
VZV21 |
1 | ||
| 84742 - SWITCH, SLIDE ROOF LIMIT | ||||
| 84742-32010 |
VZV21 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32060B0 |
VZV21 MEDIUM GRAY,TRIM1#,REAR |
2 | ||
| 84810-32060J0 |
VZV21 DARK BLUE,TRIM8#,REAR |
2 | ||
| 84810-32070 |
VZV21 FRONT |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32060B0 |
VZV21 MEDIUM GRAY,TRIM1#,REAR |
2 | ||
| 84810-32060J0 |
VZV21 DARK BLUE,TRIM8#,REAR |
2 | ||
| 84810-32070 |
VZV21 FRONT |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32060B0 |
VZV21 MEDIUM GRAY,TRIM1#,REAR |
2 | ||
| 84810-32060J0 |
VZV21 DARK BLUE,TRIM8#,REAR |
2 | ||
| 84810-32070 |
VZV21 FRONT |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-32140 |
VZV21 |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-39015 |
VZV21 |
1 | ||
| 84931-32040 |
VZV21 |
2 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-39015 |
VZV21 |
1 | ||
| 84931-32040 |
VZV21 |
2 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-32010 |
VZV21 |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-32200 |
VZV21 |
1 | ||
| 89373-32170 |
VZV21 |
1 | ||
| Common parts | ||||
| 82711-3H140 | ||||
| 90119-06390 | ||||
| 90168-40006 | ||||
| 90463-12570 | ||||
| 93315-14012 | ||||
| 93315-15010 | ||||
| 93381-15010 | ||||
| 93540-14012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
