SV21RG-UWPDKQ (1986)
Toyota Camry
Production
Nov 1986
-
Apr 1989
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8611- )SV2#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55909B - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-32100 |
SV2# |
1 | ||
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-32010 |
SV2#,VZV21 |
1 | ||
| 87103-32010 |
SV2# |
1 | ||
| 87103-32010 |
SV2# |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-32010 |
SV2#,VZV21 |
1 | ||
| 87105-32010 |
SV2# |
1 | ||
| 87105-32010 |
SV2# |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-32050 |
SV2# |
1 | ||
| 87107-32050 |
SV2# |
1 | ||
| 87107-32050 |
SV2#,VZV21 |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-32070 |
SV2# |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-32040 |
SV2# |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-32070 |
SV2# |
1 | ||
| Common parts | ||||
| 82711-3H170 | ||||
| 90119-06088 | ||||
| 90179-06054 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 1 OF 2(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-3H170 | ||||
| 90119-06042 | ||||
| 90179-06239 | ||||
| Linked diagrams | ||||
| 8715 | ||||

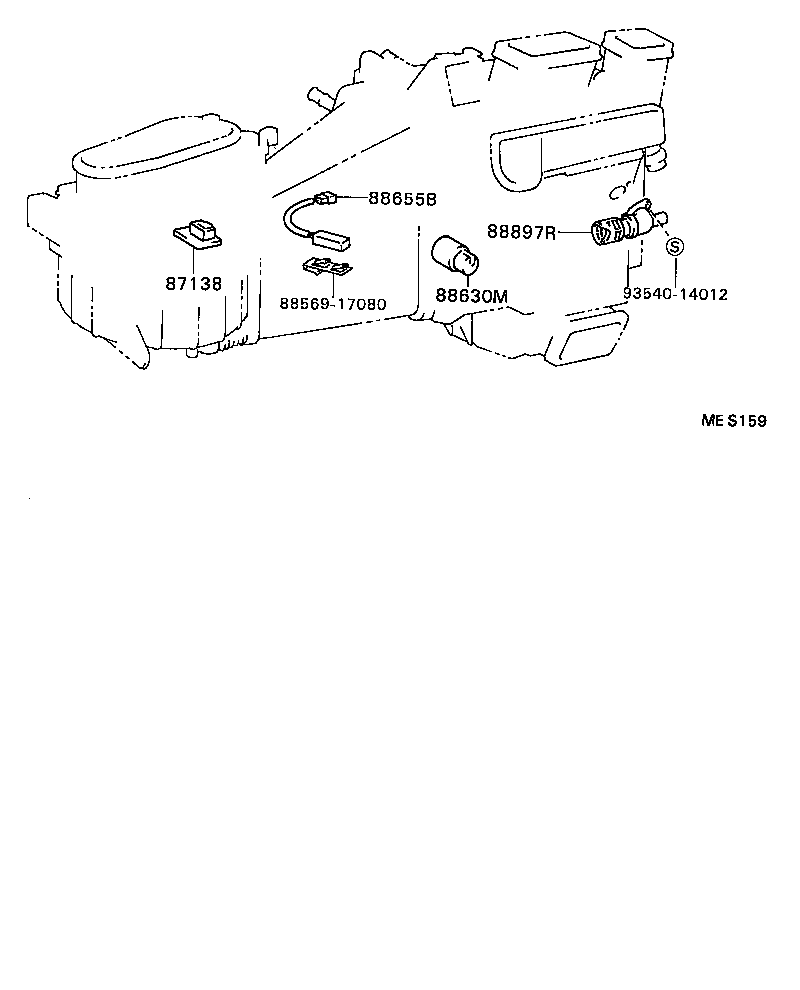

ILLUST NO. 2 OF 2(8808- )
Click highlighted areas on diagram
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88569-17080 | ||||
| 93540-14012 | ||||
