SV21RG-UWPDKQ (1986)
Toyota Camry
Production
Nov 1986
-
Apr 1989
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8611- )

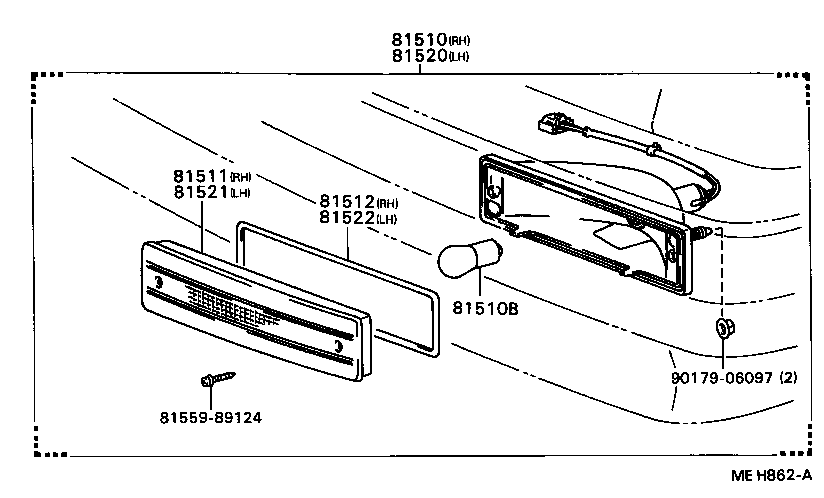

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-39615 |
SV2#,VZV21 |
1 | ||
| 81510-39615 |
SV2# |
1 | ||
| 81510-39615 |
SV2# |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11210 |
SV2# 12V 21W,12V 21W |
2 | ||
| 99132-11210 |
SV2# 12V 21W,12V 21W |
2 | ||
| 99132-11210 |
SV2#,VZV21 12V 21W |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-32050 |
SV2#,VZV21 |
1 | ||
| 81511-32050 |
SV2# |
1 | ||
| 81511-32050 |
SV2# |
1 | ||
| 81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH | ||||
| 81512-32050 |
SV2# |
1 | ||
| 88512-32050 |
SV2#,VZV21 |
1 | ||
| 81512-32050 |
SV2# |
1 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-39615 |
SV2# |
1 | ||
| 81520-39615 |
SV2# |
1 | ||
| 81520-39615 |
SV2#,VZV21 |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-32050 |
SV2# |
1 | ||
| 81521-32050 |
SV2# |
1 | ||
| 81521-32050 |
SV2#,VZV21 |
1 | ||
| 81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH | ||||
| 81512-32050 |
SV2# |
1 | ||
| 81512-32050 |
SV2# |
1 | ||
| Common parts | ||||
| 81559-89124 | ||||
| 90179-06097 | ||||
(8808- )

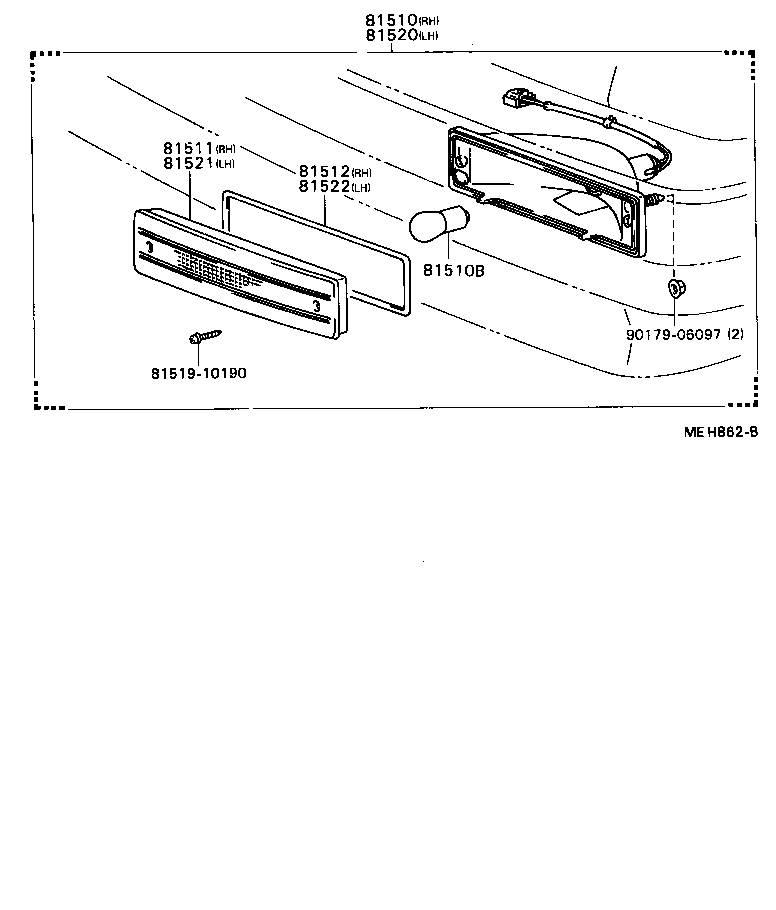

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 81519-10190 | ||||
| 90179-06097 | ||||
