SV21RG-UWPDKQ (1986)

Toyota Camry

Production Nov 1986 - Apr 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8611- )

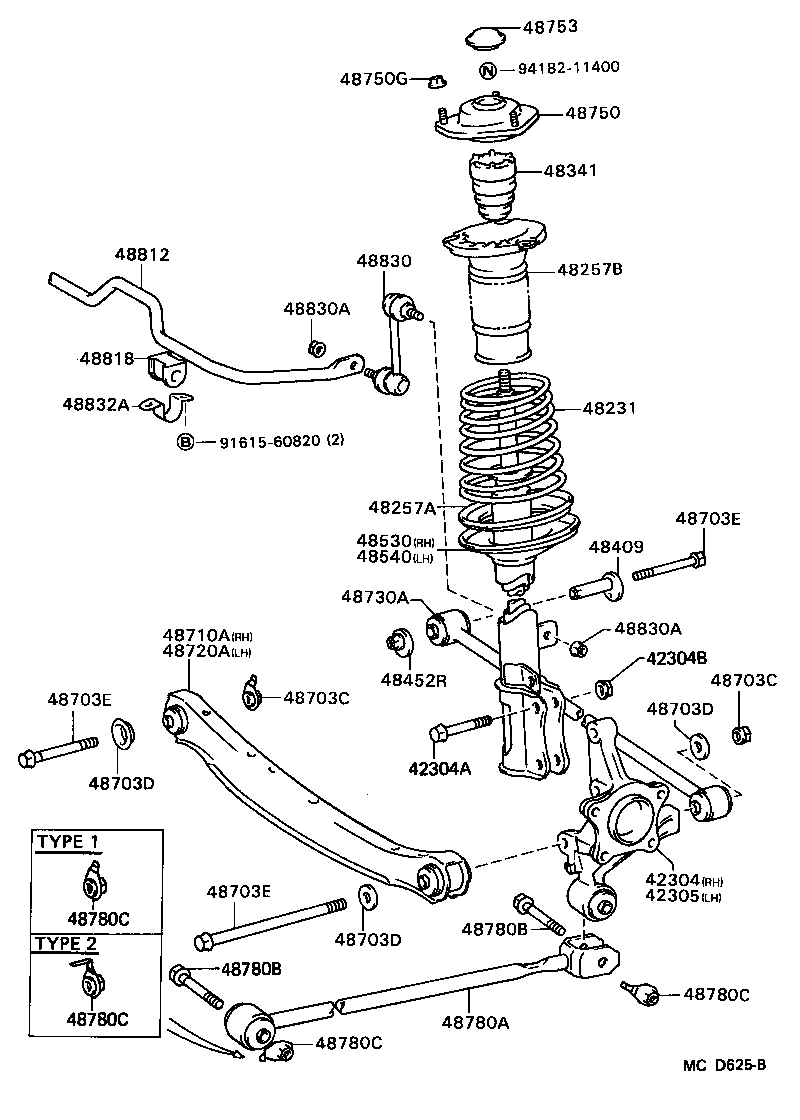

Click highlighted areas on diagram

diagram 42304 42304A 42304B 42305 48231 48257A 48257B 48341 48409 48452R 48530 48540 48703C 48703C 48703D 48703D 48703D 48703E 48703E 48703E 48710A 48720A 48730A 48750 48750G 48753 48780A 48780B 48780B 48780C 48780C 48780C 48780C 48812 48818 48830 48830A 48830A 48832A 9161560820 9418211400
Part # Description Qty Price
42304 - CARRIER SUB-ASSY, REAR AXLE, RH
42304-32030

SV2#

 1
42304-32030

SV2#

 1
42304-32030

SV2#,VZV21

 1
42304A - BOLT (FOR REAR AXLE CARRIER)
90105-15001

SV2#,VZV21

 2
90105-15001

SV2#

 4
90105-15001

SV2#

 1
42304B - NUT (FOR REAR AXLE CARRIER)
90179-15001

SV2#

 2
90179-15001

SV2#

 4
90179-15001

SV2#,VZV21

 2
42305 - CARRIER SUB-ASSY, REAR AXLE, LH
42305-32030

SV2#

 1
42305-32030

SV2#

 1
42305-32030

SV2#,VZV21

 1
48257A - INSULATOR, REAR COIL SPRING, LOWER
48258-32010

SV2#

 1
48258-32010

SV2#

 2
48258-32010

SV2#,VZV21

 1
48257B - INSULATOR, REAR COIL SPRING, UPPER
48257-32030

SV2#

 1
48257-32030

SV2#

 2
48257-32030

SV2#,VZV21

 1
48341 - BUMPER, REAR SPRING
48341-32030

SV2#

 2
48341-32030

SV2#,VZV21

 1
48341-32030

SV2#

 1
48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48409-32020

SV2#

 2
48409-32020

SV2#,VZV21

 2
48409-32020

SV2#

 2
48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2
48452-32020

SV2#

 2
48452-32020

SV2#

 2
48452-32020

SV2#,VZV21

 2
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-12063

SV2#

ARM NO.1 X BODY

 2
90179-14019

SV2#

ARM X CARRIER

 2
90179-12063

SV2#

ARM NO.1 X BODY

 2
90179-12063

SV2#,VZV21

ARM NO.1 X BODY

 2
90179-14019

SV2#,VZV21

ARM X CARRIER

 2
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-12063

SV2#

ARM NO.1 X BODY

 2
90179-14019

SV2#

ARM X CARRIER

 2
90179-12063

SV2#

ARM NO.1 X BODY

 2
90179-12063

SV2#,VZV21

ARM NO.1 X BODY

 2
90179-14019

SV2#,VZV21

ARM X CARRIER

 2
48703D - WASHER(FOR REAR SUSPENSION ARM)
90209-13008

SV2#

ARM NO.1 X CARRIER

 2
90201-14017

SV2#

ARM X CARRIER

 4
90209-13008

SV2#

ARM NO.1 X BODY

 2
90201-14017

SV2#,VZV21

ARM X CARRIER

 4
90209-13008

SV2#,VZV21

ARM NO.1 X CARRIER

 2
90201-14017

SV2#

ARM X CARRIER

 4
48703D - WASHER(FOR REAR SUSPENSION ARM)
90209-13008

SV2#

ARM NO.1 X CARRIER

 2
90201-14017

SV2#

ARM X CARRIER

 4
90209-13008

SV2#

ARM NO.1 X BODY

 2
90201-14017

SV2#,VZV21

ARM X CARRIER

 4
90209-13008

SV2#,VZV21

ARM NO.1 X CARRIER

 2
90201-14017

SV2#

ARM X CARRIER

 4
48703D - WASHER(FOR REAR SUSPENSION ARM)
90209-13008

SV2#

ARM NO.1 X CARRIER

 2
90201-14017

SV2#

ARM X CARRIER

 4
90209-13008

SV2#

ARM NO.1 X BODY

 2
90201-14017

SV2#,VZV21

ARM X CARRIER

 4
90209-13008

SV2#,VZV21

ARM NO.1 X CARRIER

 2
90201-14017

SV2#

ARM X CARRIER

 4
48703E - BOLT(FOR REAR SUSPENSION ARM)
90105-12132

SV2#

*12-1.25PX80-20

 2
90105-14036

SV2#

*14-1.5PX248-30,*14-1.50PX243-25

 2
90105-12132

SV2#,VZV21

*12-1.25PX80-20

 2
90105-12147

SV2#

*12-1.25PX74.5-25,*12-1.25PX74.5-25,ARM NO.1

 2
90105-14036

SV2#,VZV21

*14-1.5PX248-30

 2
90105-12147

SV2#

*12-1.25PX74.5-25

 2
90105-12132

SV2#

*12-1.25PX80-20,*12-1.25PX80-20,ARM NO.2

 2
90105-14036

SV2#

*14-1.5PX248-30

 2
48703E - BOLT(FOR REAR SUSPENSION ARM)
90105-12132

SV2#

*12-1.25PX80-20

 2
90105-14036

SV2#

*14-1.5PX248-30,*14-1.50PX243-25

 2
90105-12132

SV2#,VZV21

*12-1.25PX80-20

 2
90105-12147

SV2#

*12-1.25PX74.5-25,*12-1.25PX74.5-25,ARM NO.1

 2
90105-14036

SV2#,VZV21

*14-1.5PX248-30

 2
90105-12147

SV2#

*12-1.25PX74.5-25

 2
90105-12132

SV2#

*12-1.25PX80-20,*12-1.25PX80-20,ARM NO.2

 2
90105-14036

SV2#

*14-1.5PX248-30

 2
48703E - BOLT(FOR REAR SUSPENSION ARM)
90105-12132

SV2#

*12-1.25PX80-20

 2
90105-14036

SV2#

*14-1.5PX248-30,*14-1.50PX243-25

 2
90105-12132

SV2#,VZV21

*12-1.25PX80-20

 2
90105-12147

SV2#

*12-1.25PX74.5-25,*12-1.25PX74.5-25,ARM NO.1

 2
90105-14036

SV2#,VZV21

*14-1.5PX248-30

 2
90105-12147

SV2#

*12-1.25PX74.5-25

 2
90105-12132

SV2#

*12-1.25PX80-20,*12-1.25PX80-20,ARM NO.2

 2
90105-14036

SV2#

*14-1.5PX248-30

 2
48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH
48710-20060

SV2#,VZV21

 1
48710-20060

SV2#

 1
48710-20060

SV2#

 1
48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH
48720-20050

SV2#

 1
48720-20050

SV2#

 1
48720-20050

SV2#,VZV21

 1
48730A - ARM ASSY, REAR SUSPENSION, NO.2
48730-32020

SV2#..WG

 1
48730-32030

SV2#

LH

 1
48730-32020

SV2#..WG

RH

 1
48730-32030

SV2#..WG

 1
48750 - SUPPORT ASSY, REAR SUSPENSION
48750-32040

SV2#

 1
48750-32040

SV2#

 2
48750-32040

SV2#,VZV21

 1
48750G - NUT(FOR REAR SUSPENSION SUPPORT)
90179-08111

SV2#,VZV21

 6
90179-08111

SV2#

 6
90179-08122

SV2#,VZV21

 6
90179-08122

SV2#

 6
48753 - COVER, REAR SUSPENSION SUPPORT
48753-16010

SV2#

 2
48753-16010

SV2#,VZV21

 1
48753-16010

SV2#

 1
48780A - ROD ASSY, STRUT, REAR
48780-32020

SV2#

 2
48780-32020

SV2#,VZV21

 2
48780-32020

SV2#

 2
48780B - BOLT(FOR STRUT ROD)
90105-12082

SV2#

 4
90119-12131

SV2#,VZV21

 4
90119-12131

SV2#

*12-1.25PX82-26

 4
90119-12131

SV2#

 4
48780B - BOLT(FOR STRUT ROD)
90105-12082

SV2#

 4
90119-12131

SV2#,VZV21

 4
90119-12131

SV2#

*12-1.25PX82-26

 4
90119-12131

SV2#

 4
48780C - NUT(FOR STRUT ROD)
90179-12062

SV2#

CARRIER SIDE

 2
90179-12065

SV2#,VZV21

BODY SIDE, TYPE 2

 2
90179-12063

SV2#,VZV21

BODY SIDE, TYPE 1

 2
90179-12063

SV2#

BODY SIDE,TYPE 1

 2
90179-12065

SV2#

BODY SIDE,TYPE 2

 2
90179-12065

SV2#

BODY SIDE,TYPE 2

 2
90179-12062

SV2#

CARRIER SIDE

 2
90179-12062

SV2#,VZV21

CARRIER SIDE

 2
90179-12063

SV2#

BODY SIDE,TYPE 1

 2
48780C - NUT(FOR STRUT ROD)
90179-12062

SV2#

CARRIER SIDE

 2
90179-12065

SV2#,VZV21

BODY SIDE, TYPE 2

 2
90179-12063

SV2#,VZV21

BODY SIDE, TYPE 1

 2
90179-12063

SV2#

BODY SIDE,TYPE 1

 2
90179-12065

SV2#

BODY SIDE,TYPE 2

 2
90179-12065

SV2#

BODY SIDE,TYPE 2

 2
90179-12062

SV2#

CARRIER SIDE

 2
90179-12062

SV2#,VZV21

CARRIER SIDE

 2
90179-12063

SV2#

BODY SIDE,TYPE 1

 2
48780C - NUT(FOR STRUT ROD)
90179-12062

SV2#

CARRIER SIDE

 2
90179-12065

SV2#,VZV21

BODY SIDE, TYPE 2

 2
90179-12063

SV2#,VZV21

BODY SIDE, TYPE 1

 2
90179-12063

SV2#

BODY SIDE,TYPE 1

 2
90179-12065

SV2#

BODY SIDE,TYPE 2

 2
90179-12065

SV2#

BODY SIDE,TYPE 2

 2
90179-12062

SV2#

CARRIER SIDE

 2
90179-12062

SV2#,VZV21

CARRIER SIDE

 2
90179-12063

SV2#

BODY SIDE,TYPE 1

 2
48780C - NUT(FOR STRUT ROD)
90179-12062

SV2#

CARRIER SIDE

 2
90179-12065

SV2#,VZV21

BODY SIDE, TYPE 2

 2
90179-12063

SV2#,VZV21

BODY SIDE, TYPE 1

 2
90179-12063

SV2#

BODY SIDE,TYPE 1

 2
90179-12065

SV2#

BODY SIDE,TYPE 2

 2
90179-12065

SV2#

BODY SIDE,TYPE 2

 2
90179-12062

SV2#

CARRIER SIDE

 2
90179-12062

SV2#,VZV21

CARRIER SIDE

 2
90179-12063

SV2#

BODY SIDE,TYPE 1

 2
48812 - BAR, STABILIZER, REAR
48812-32170

SV2#

 1
48812-32170

SV2#,VZV21

 1
48812-32170

SV2#

 1
48818 - BUSH, STABILIZER, REAR
48818-20070

SV2#

 2
48818-20070

SV2#,VZV21

 2
48818-20070

SV2#

 2
48830 - LINK ASSY, REAR STABILIZER
48830-32020

SV2#

 2
48830-20010

SV2#,VZV21

 2
48830-20010

SV2#

 2
48830-32010

SV2#

 2
48830A - NUT(FOR REAR STABILIZER LINK)
90179-10054

SV2#

 4
90179-10054

SV2#

 4
90179-10054

SV2#,VZV21

 4
48830A - NUT(FOR REAR STABILIZER LINK)
90179-10054

SV2#

 4
90179-10054

SV2#

 4
90179-10054

SV2#,VZV21

 4
48832A - BRACKET, REAR STABILIZER BAR, NO.1
48832-20020

SV2#,VZV21

 2
48832-20020

SV2#

 2
48832-20020

SV2#

 2
Common parts
91615-60820
94182-11400

(8808- )

Click highlighted areas on diagram

diagram 42304 42304A 42304B 42305 48231 48257B 48258A 48341 48409 48452R 48530 48540 48703C 48703C 48703D 48703D 48703D 48703E 48703E 48703E 48703E 48710A 48720A 48730A 48750 48750G 48753 48780A 48780B 48780B 48780C 48780C 48780C 48780C 48812 48818 48830 48830A 48830A 48832A 9161560820 9418211400
Part # Description Qty Price
Common parts
91615-60820
94182-11400
