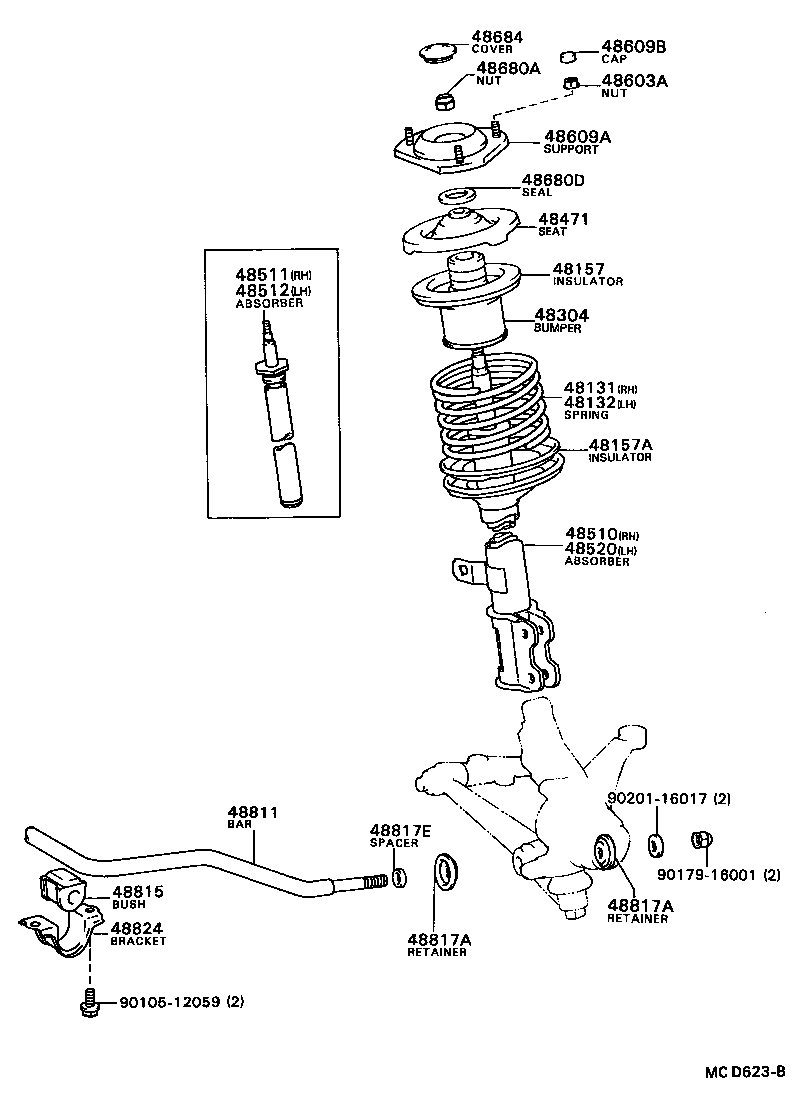

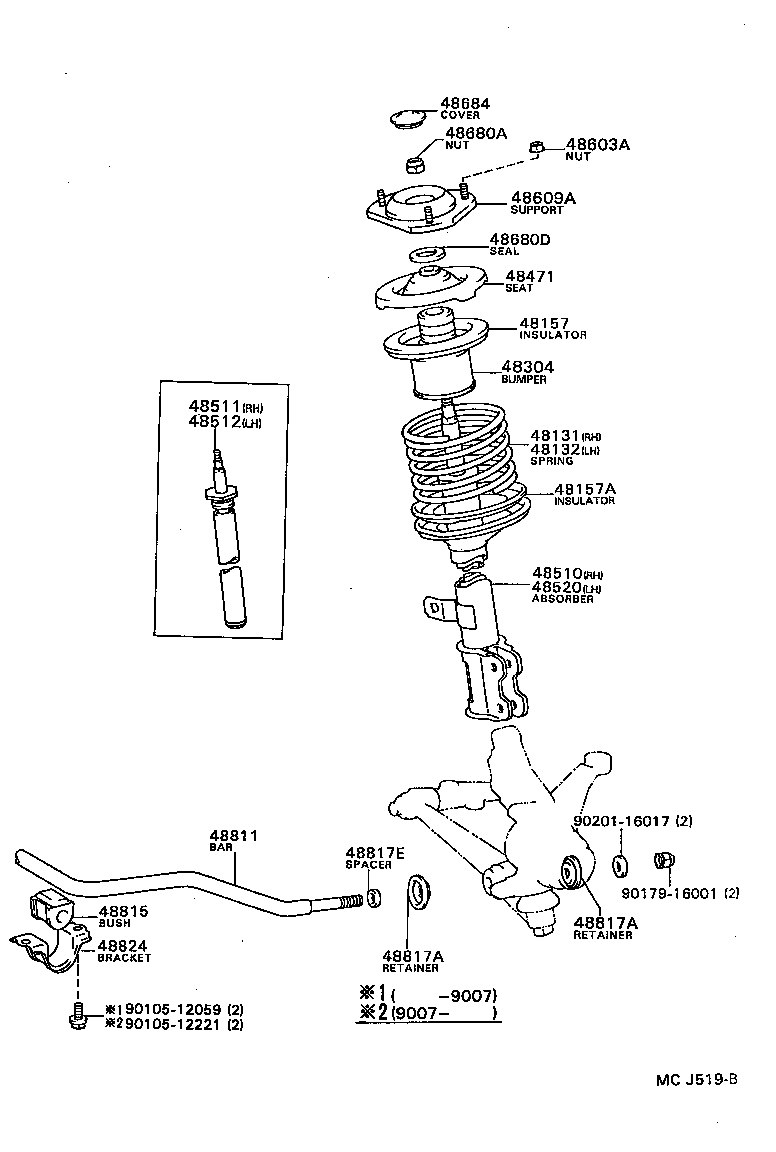

Toyota Camry SV21 FRONT SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty
48131 - SPRING, FRONT COIL, RH
48131-32360	SV21..4FC..CS	11/1986 - 04/1989	1
48131-32350	SV21..S	11/1986 - 04/1989	1
48132 - SPRING, FRONT COIL, LH
48131-32350	SV21..S	11/1986 - 04/1989	1
48131-32360	SV21..4FC..CS	11/1986 - 04/1989	1
48157 - INSULATOR, FRONT COIL SPRING, UPPER
48157-32020	SV2#	11/1986 - 10/1987	2
48157-32020	SV2#	08/1988 - 04/1989	2
48157-32020	SV2#,VZV21	10/1987 - 08/1988	2
48157A - INSULATOR, FRONT COIL SPRING, LOWER
48158-32020	SV2#	08/1988 - 04/1989	2
48158-32020	SV2#,VZV21	10/1987 - 08/1988	2
48158-32020	SV2#	11/1986 - 10/1987	2
48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1
48304-32030	SV2#,VZV21	10/1987 - 08/1988	2
48304-32030	SV2#	08/1988 - 04/1989	2
48304-32030	SV2#	11/1986 - 10/1987	2
48471 - SEAT, FRONT SPRING, UPPER
48044-32020	SV2#,VZV21	10/1987 - 08/1988	2
48044-32020	SV2#	11/1986 - 10/1987	2
48044-32020	SV2#	08/1988 - 04/1989	2
48603A - NUT(FOR FRONT SUSPENSION SUPPORT)
90179-10095	SV2#	08/1988 - 04/1989	6
90179-10095	SV2#,VZV21	10/1987 - 08/1988	6
90179-10095	SV2#	11/1986 - 10/1987	6
48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION
48609-32030	SV2#,VZV21	10/1987 - 08/1988	2
48609-32030	SV2#	08/1988 - 04/1989	2
48609-32030	SV2#	11/1986 - 10/1987	2
48609B - CAP(FOR FRONT SUSPENSION SUPPORT)
90339-15002	SV2#	11/1986 - 04/1989	4
48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
94182-11400	SV2#,VZV21	10/1987 - 08/1988	2
94182-11400	SV2#	11/1986 - 10/1987	2
94182-11400	SV2#	08/1988 - 04/1989	2
48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
90303-22049	SV2#	11/1986 - 10/1987	2
90303-22049	SV2#,VZV21	10/1987 - 08/1988	2
90303-22049	SV2#	08/1988 - 04/1989	2
48684 - COVER, BEARING DUST
48684-32010	SV2#	11/1986 - 10/1987	2
48684-32010	SV2#,VZV21	10/1987 - 08/1988	2
48684-32010	SV2#	08/1988 - 04/1989	2
48811 - BAR, STABILIZER, FRONT
48811-32090	SV2# D=24	01/1987 - 10/1987	1
48811-32090	SV21 D=24	11/1986 - 01/1987	1
48811-32090	SV2#	10/1987 - 04/1989	1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-32040	SV2# STABILIZER BAR D=24	01/1987 - 10/1987	2
48815-32040	SV21 STABILIZER BAR D=24	11/1986 - 01/1987	2
48815-32040	SV2#	10/1987 - 04/1989	2
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02117	SV21 LH,GRAY	11/1986 - 10/1987	2
90948-02106	SV2# RH,SILVER	01/1987 - 10/1987	2
90948-02106	SV2# RH	10/1987 - 12/1987	2
90948-02115	SV2#,VZV21 LH	11/1988 - 08/1988	2
90948-02106	SV21 RH,SILVER	11/1986 - 01/1987	2
90948-02117	SV2#,VZV21 LH	01/1988 - 11/1988	2
90948-02124	SV2#,VZV21 RH	11/1988 - 08/1988	2
90948-02102	SV2# LH	10/1987 - 12/1987	2
90948-02118	SV2#,VZV21 RH	01/1988 - 11/1988	2
90948-02118	SV21 RH,GRAY	11/1986 - 10/1987	2
90948-02102	SV21 LH,SILVER	11/1986 - 01/1987	2
90948-02115	SV2# LH	08/1988 - 04/1989	2
90948-02124	SV2# RH	08/1988 - 04/1989	2
90948-02102	SV2# LH,SILVER	01/1987 - 10/1987	2
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02117	SV21 LH,GRAY	11/1986 - 10/1987	2
90948-02106	SV2# RH,SILVER	01/1987 - 10/1987	2
90948-02106	SV2# RH	10/1987 - 12/1987	2
90948-02115	SV2#,VZV21 LH	11/1988 - 08/1988	2
90948-02106	SV21 RH,SILVER	11/1986 - 01/1987	2
90948-02117	SV2#,VZV21 LH	01/1988 - 11/1988	2
90948-02124	SV2#,VZV21 RH	11/1988 - 08/1988	2
90948-02102	SV2# LH	10/1987 - 12/1987	2
90948-02118	SV2#,VZV21 RH	01/1988 - 11/1988	2
90948-02118	SV21 RH,GRAY	11/1986 - 10/1987	2
90948-02102	SV21 LH,SILVER	11/1986 - 01/1987	2
90948-02115	SV2# LH	08/1988 - 04/1989	2
90948-02124	SV2# RH	08/1988 - 04/1989	2
90948-02102	SV2# LH,SILVER	01/1987 - 10/1987	2
48817E - SPACER(FOR STABILIZER BAR)
90560-16005	SV2#	10/1987 - 04/1989	2
90560-16005	SV2#	11/1986 - 10/1987	2
90560-16005	SV2#,VZV21	10/1987 - 08/1988	2
48824 - BRACKET, STABILIZER, FRONT
48824-32030	SV2#	11/1986 - 10/1987	2
48824-32030	SV2#	08/1988 - 04/1989	2
48824-32030	SV2#,VZV21	10/1987 - 08/1988	2
Common parts
90105-12059
90179-16001
90201-16017

SV21RG-UWPDKQ (1986)

(8611- )

(8808- )
