SV21RG-UWPDKQ (1986)
Toyota Camry
Production
Nov 1986
-
Apr 1989
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

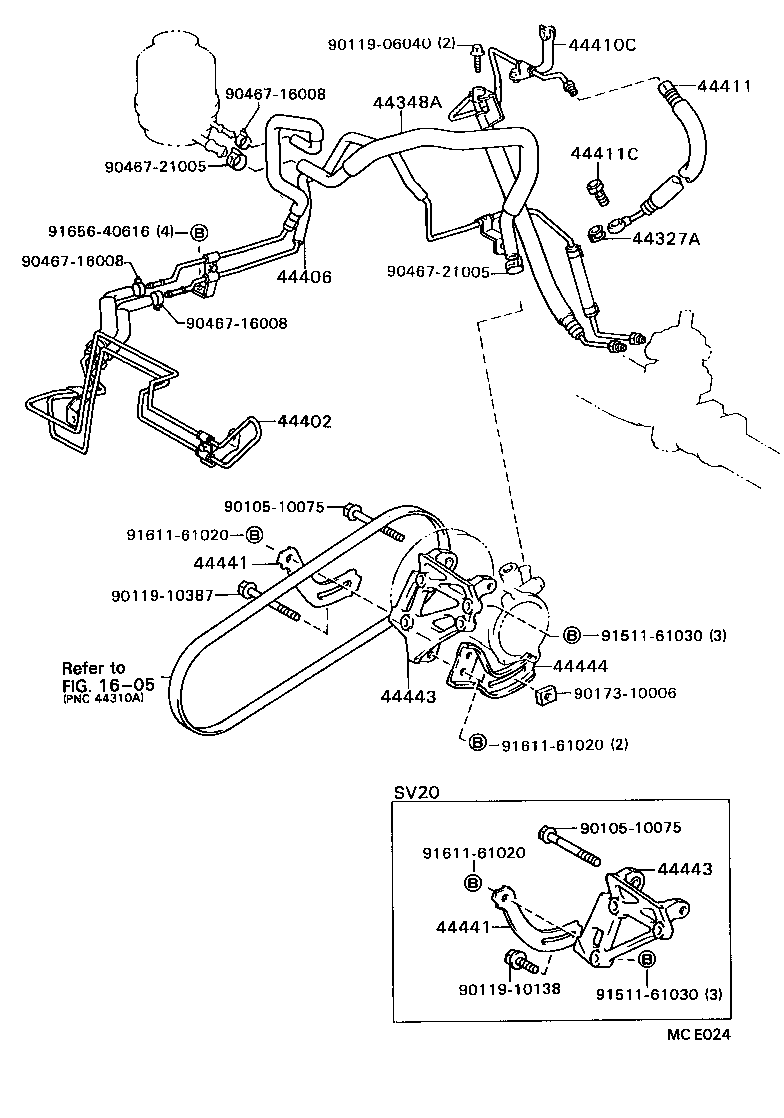

(8611- )SV2#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
SV2#..CS,CSX |
1 | ||
| 44327-12010 |
SV2#..CS,CSX |
1 | ||
| 44327-12010 |
SV2# |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-32050 |
SV21..CS,CSX |
1 | ||
| 44348-32050 |
SV21 |
1 | ||
| 44348-32050 |
SV21..CS,CSX |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-32031 |
SV2#..CS,CSX |
1 | ||
| 44402-32031 |
SV2# |
1 | ||
| 44402-32031 |
SV2#..CS,CSX |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-32021 |
SV2#..CS,CSX |
1 | ||
| 44410C - TUBE ASSY, PRESSURE FEED, NO.1 | ||||
| 44410-32110 |
SV2#..CS,CSX |
1 | ||
| 44410-32110 |
SV2# |
1 | ||
| 44410-32110 |
SV2#..CS,CSX |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-32030 |
SV2#..CS,CSX |
1 | ||
| 44411-32030 |
SV2# |
1 | ||
| 44411-32030 |
SV2#..CS,CSX |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16008 |
SV2# |
1 | ||
| 90401-16008 |
SV2#..CS,CSX |
1 | ||
| 90401-16008 |
SV2#..CS,CSX |
1 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-32010 |
SV2# |
1 | ||
| 44441-32010 |
SV2#..CS,CSX |
1 | ||
| 44441-32010 |
SV2#..CS,CSX |
1 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-32010 |
SV2# |
1 | ||
| 44441-32010 |
SV2#..CS,CSX |
1 | ||
| 44441-32010 |
SV2#..CS,CSX |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-20050 |
SV21 |
1 | ||
| 44443-20050 |
SV21..CS,CSX |
1 | ||
| 44443-20050 |
SV21..CS,CSX |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-20050 |
SV21 |
1 | ||
| 44443-20050 |
SV21..CS,CSX |
1 | ||
| 44443-20050 |
SV21..CS,CSX |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-20030 |
SV21..CS,CSX |
1 | ||
| 44444-20030 |
SV21..CS,CSX |
1 | ||
| 44444-20030 |
SV21 |
1 | ||
| Common parts | ||||
| 90105-10075 | ||||
| 90119-06040 | ||||
| 90119-10138 | ||||
| 90119-10387 | ||||
| 90173-10006 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 91511-61030 | ||||
| 91611-61020 | ||||
| 91656-40616 | ||||
| Linked diagrams | ||||
| 1605 | ||||

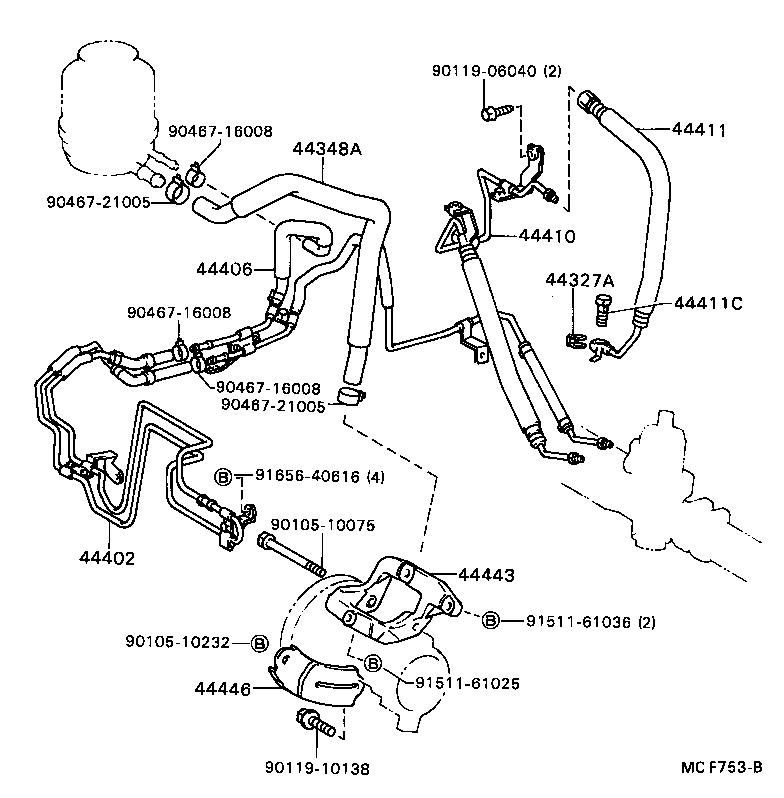

(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-10075 | ||||
| 90105-10232 | ||||
| 90119-06040 | ||||
| 90119-10138 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 91511-61025 | ||||
| 91511-61036 | ||||
| 91656-40616 | ||||
