SV21RG-UWPBKQ (1986)
Toyota Camry
Production
Nov 1986
-
Apr 1989
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

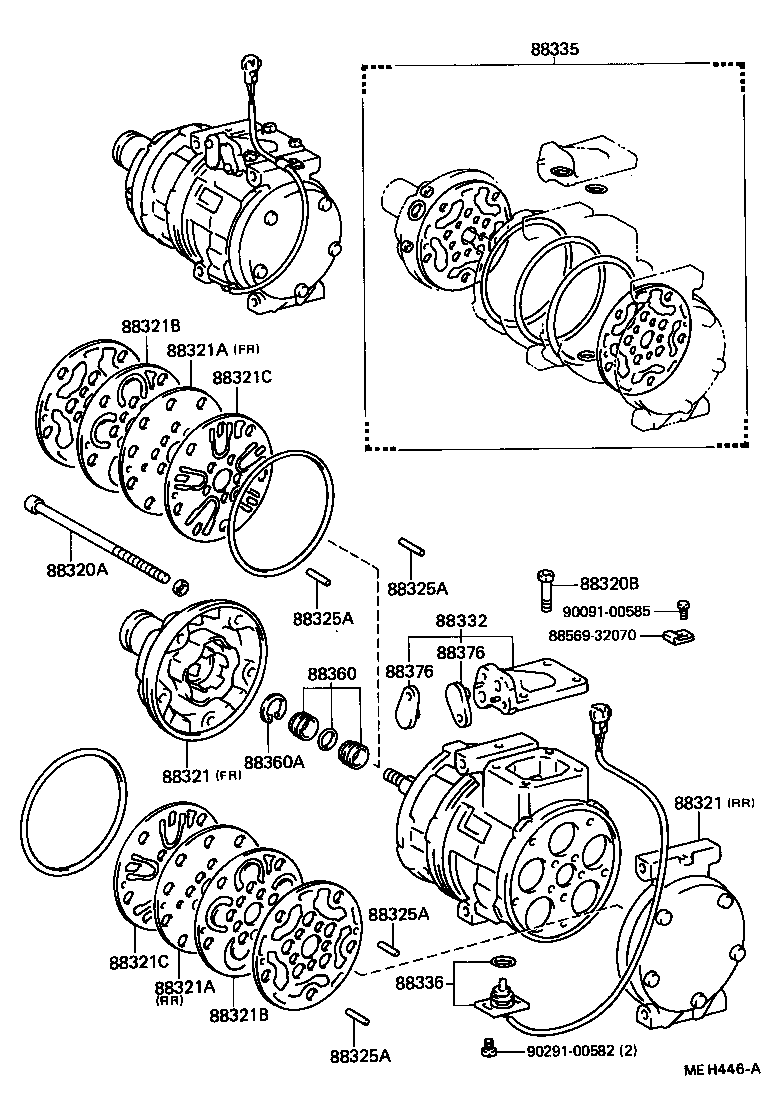

ILLUST NO. 2 OF 2(8611- )SV2#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320A - BOLT, THROUGH | ||||
| 90099-04958 |
SV2#,VZV21 |
5 | ||
| 90099-04958 |
SV2# |
5 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04924 |
SV2#,VZV21 |
4 | ||
| 90099-04924 |
SV2# |
4 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14021 |
SV2#,VZV21 FR |
1 | ||
| 88322-14020 |
SV2# RR |
1 | ||
| 88321-14021 |
SV2# FR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14021 |
SV2#,VZV21 FR |
1 | ||
| 88322-14020 |
SV2# RR |
1 | ||
| 88321-14021 |
SV2# FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14020 |
SV2# RR |
1 | ||
| 88341-14020 |
SV2# FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14020 |
SV2# RR |
1 | ||
| 88341-14020 |
SV2# FR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14020 |
SV2# |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14020 |
SV2# |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14020 |
SV2# |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14020 |
SV2# |
2 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
SV2#,VZV21 |
4 | ||
| 90099-08058 |
SV2# |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
SV2#,VZV21 |
4 | ||
| 90099-08058 |
SV2# |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
SV2#,VZV21 |
4 | ||
| 90099-08058 |
SV2# |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
SV2#,VZV21 |
4 | ||
| 90099-08058 |
SV2# |
1 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88371-32060 |
SV2# |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-32010 |
SV2# |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-17010 |
SV2# |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-14040 |
SV2# |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
SV2#,VZV21 |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-17020 |
SV2#,VZV21 SUCTION |
1 | ||
| 88376-22020 |
SV2#,VZV21 DISCHARGE |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-17020 |
SV2#,VZV21 SUCTION |
1 | ||
| 88376-22020 |
SV2#,VZV21 DISCHARGE |
1 | ||
| Common parts | ||||
| 88569-32070 | ||||
| 90091-00585 | ||||
| 90291-00582 | ||||

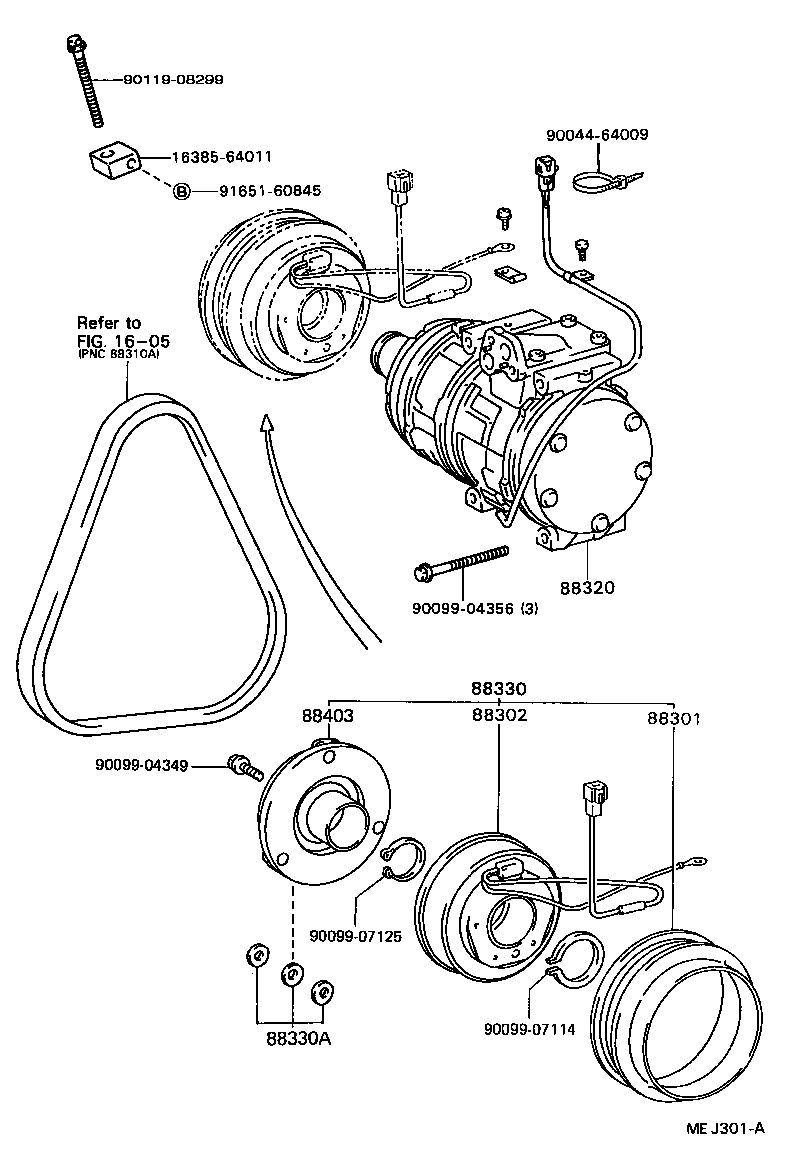

ILLUST NO. 1 OF 2(8611- )SV2#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-20090 |
SV2# |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-32021 |
SV2# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-32080 |
SV2# |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-32030 |
SV2# |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88355-14020 |
SV2#,VZV21 |
1 | ||
| 88355-14020 |
SV2# |
1 | ||
| Common parts | ||||
| 16385-64011 | ||||
| 90044-64009 | ||||
| 90099-04349 | ||||
| 90099-04356 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90119-08299 | ||||
| 91651-60845 | ||||
| Linked diagrams | ||||
| 1605 | ||||
(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-04349 | ||||
| 90099-04356 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 91511-61020 | ||||
| 91511-61060 | ||||
