SV21RG-UWPBKQ (1986)

Toyota Camry

Production Nov 1986 - Apr 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8611- )SV2#

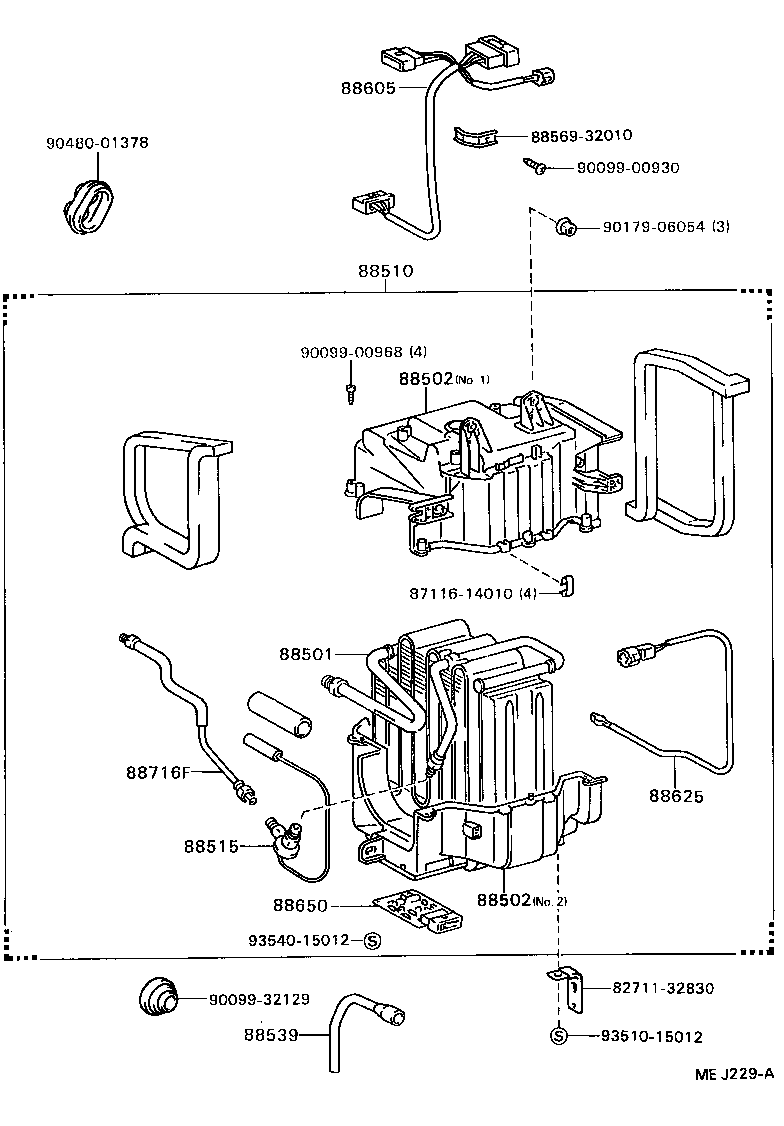

Click highlighted areas on diagram

diagram 8271132830 8711614010 88501 88502 88502 88510 88515 88539 8856932010 88605 88625 88650 88716F 9009900930 9009900968 9009932129 9017906054 9048001378 9351015012 9354015012
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-32040

SV2#

 1
88501-32040

SV2#,VZV21

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-32040

SV2#,VZV21

NO.2

 1
88502-32030

SV2#

NO.1

 1
88502-32040

SV2#

NO.2

 1
88502-32030

SV2#,VZV21

NO.1

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-32040

SV2#,VZV21

NO.2

 1
88502-32030

SV2#

NO.1

 1
88502-32040

SV2#

NO.2

 1
88502-32030

SV2#,VZV21

NO.1

 1
88510 - UNIT ASSY, COOLER
88510-32230

SV2#

 1
88515 - VALVE, COOLER EXPANSION
88515-16040

SV2#,VZV21

 1
88515-16040

SV2#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88529-22110

SV2#

 1
88539-20130

SV2#

 1
88539-22110

SV2#,VZV21

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-32280

SV2#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-32040

SV2#,VZV21

 1
88625-32040

SV2#

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-32110

SV2#

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-32270

SV2#,VZV21

 1
88716-32270

SV2#

 1
Common parts
82711-32830
87116-14010
88569-32010
90099-00930
90099-00968
90099-32129
90179-06054
90480-01378
93510-15012
93540-15012

(8808- )

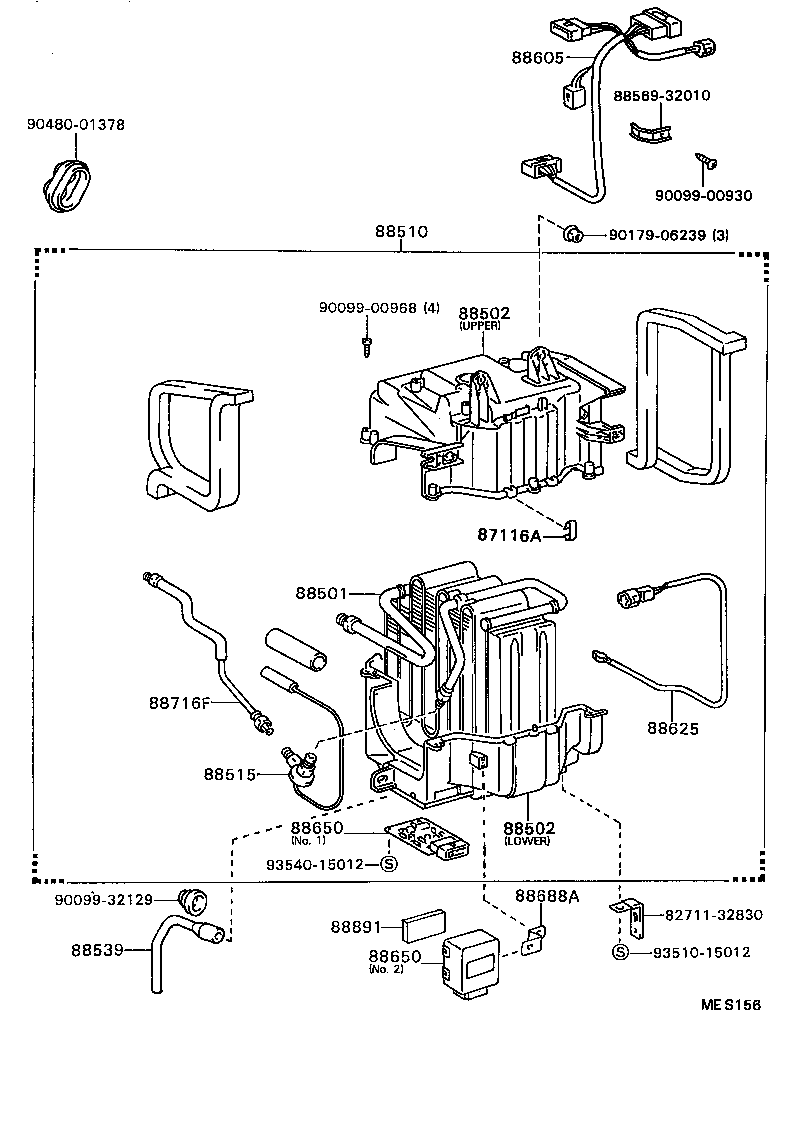

Click highlighted areas on diagram

diagram 8271132830 87116A 88501 88502 88502 88510 88515 88539 8856932010 88605 88625 88650 88650 88688A 88716F 88891 9009900930 9009900968 9009932129 9017906239 9048001378 9351015012 9354015012
Part # Description Qty Price
Common parts
82711-32830
88569-32010
90099-00930
90099-00968
90099-32129
90179-06239
90480-01378
93510-15012
93540-15012
