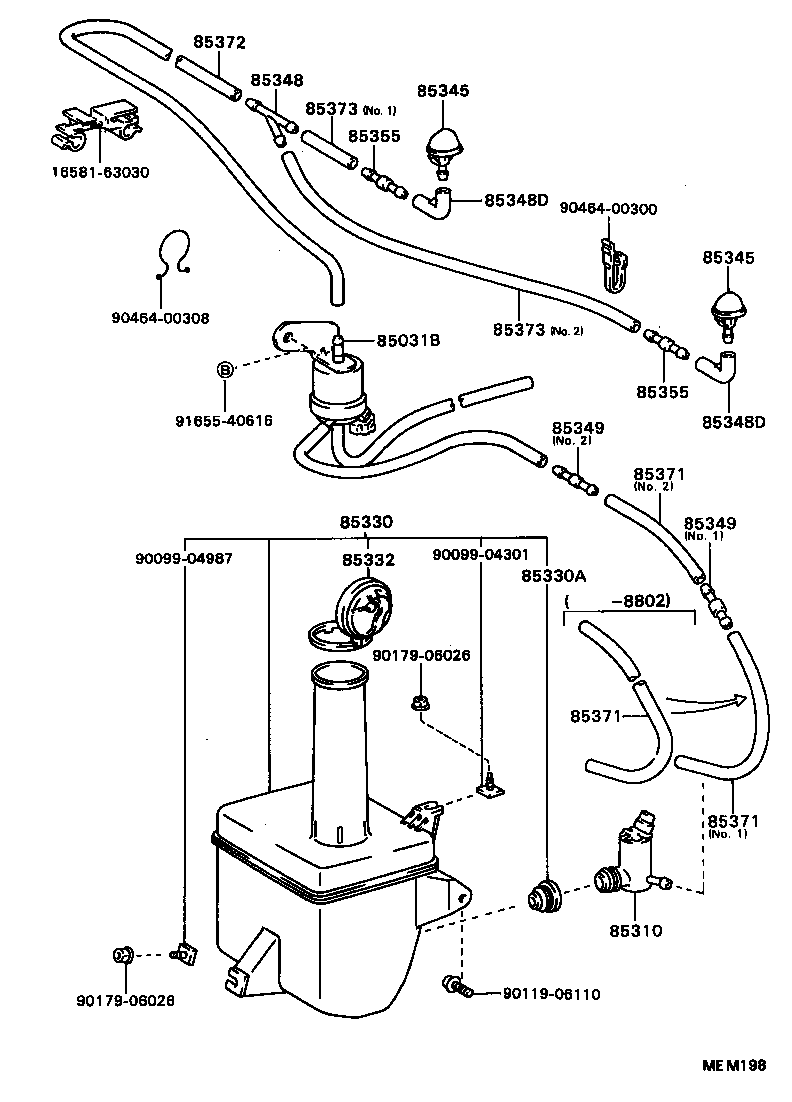

Toyota Camry SV21 WINDSHIELD WASHER

Part #	Description	Period	Qty
85031B - VALVE SUB-ASSY, WASHER
85031-32010	SV2#..WG	11/1986 - 04/1989	1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080	SV2#	11/1986 - 10/1987	1
85310-22080	SV2#	08/1988 - 04/1989	1
85310-22080	SV2#,VZV21	10/1987 - 08/1988	1
85330 - JAR ASSY, WINDSHIELD WASHER
85331-32140	SV2#	08/1988 - 04/1989	1
85331-32140	SV2#	11/1986 - 10/1987	1
85331-32140	SV2#,VZV21	10/1987 - 08/1988	1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089	SV2#	11/1986 - 10/1987	1
90099-32089	SV2#	08/1988 - 04/1989	1
90099-32089	SV2#,VZV21	10/1987 - 08/1988	1
85332 - CAP, WINDSHIELD WASHER JAR
85332-32130	SV2#,VZV21	10/1987 - 08/1988	1
85332-32130	SV2#	11/1986 - 10/1987	1
85332-32161	SV2#	08/1988 - 04/1989	1
85345 - NOZZLE, WINDSHIELD WASHER
85035-32080	SV2# RH	11/1986 - 10/1987	1
85035-32080	SV2#,VZV21 RH	10/1987 - 08/1988	1
85035-32080	SV2# RH	08/1988 - 04/1989	1
85035-32090	SV2#,VZV21 LH	10/1987 - 08/1988	1
85035-32090	SV2# LH	11/1986 - 10/1987	1
85035-32090	SV2# LH	08/1988 - 04/1989	1
85345 - NOZZLE, WINDSHIELD WASHER
85035-32080	SV2# RH	11/1986 - 10/1987	1
85035-32080	SV2#,VZV21 RH	10/1987 - 08/1988	1
85035-32080	SV2# RH	08/1988 - 04/1989	1
85035-32090	SV2#,VZV21 LH	10/1987 - 08/1988	1
85035-32090	SV2# LH	11/1986 - 10/1987	1
85035-32090	SV2# LH	08/1988 - 04/1989	1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250	SV2#,VZV21	10/1987 - 08/1988	1
85348-12250	SV2#	11/1986 - 10/1987	1
85348-12250	SV2#	08/1988 - 04/1989	1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481	SV2#,VZV21	10/1987 - 08/1988	2
85355-14481	SV2#	08/1988 - 04/1989	2
85355-14481	SV2#	05/1987 - 10/1987	2
85355-20070	SV2#	11/1986 - 05/1987	2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481	SV2#,VZV21	10/1987 - 08/1988	2
85355-14481	SV2#	08/1988 - 04/1989	2
85355-14481	SV2#	05/1987 - 10/1987	2
85355-20070	SV2#	11/1986 - 05/1987	2
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122	SV2#	11/1986 - 02/1988	1
85349-32150	SV2#,VZV21 NO.1	02/1988 - 08/1988	1
85349-89122	SV2#,VZV21 NO.2	02/1988 - 08/1988	1
85349-32150	SV2# NO.1	08/1988 - 04/1989	1
85349-89122	SV2# NO.2	08/1988 - 04/1989	1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122	SV2#	11/1986 - 02/1988	1
85349-32150	SV2#,VZV21 NO.1	02/1988 - 08/1988	1
85349-89122	SV2#,VZV21 NO.2	02/1988 - 08/1988	1
85349-32150	SV2# NO.1	08/1988 - 04/1989	1
85349-89122	SV2# NO.2	08/1988 - 04/1989	1
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-12250	SV2#	08/1988 - 04/1989	2
85031-12250	SV2#	11/1986 - 10/1987	2
85031-12250	SV2#,VZV21	10/1987 - 08/1988	2
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-12250	SV2#	08/1988 - 04/1989	2
85031-12250	SV2#	11/1986 - 10/1987	2
85031-12250	SV2#,VZV21	10/1987 - 08/1988	2
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33382	SV2#	10/1987 - 02/1988	1
90446-06013	SV2#,VZV21 *H,L=125,NO.2	02/1988 - 08/1988	1
90099-33382	SV2# *H,L=1170	11/1986 - 10/1987	1
90099-33299	SV2#,VZV21 *H,L=280,NO.1	02/1988 - 08/1988	1
90446-06013	SV2# *H,L=125,NO.2	08/1988 - 04/1989	1
90099-33299	SV2# *H,L=280,NO.1	08/1988 - 04/1989	1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33382	SV2#	10/1987 - 02/1988	1
90446-06013	SV2#,VZV21 *H,L=125,NO.2	02/1988 - 08/1988	1
90099-33382	SV2# *H,L=1170	11/1986 - 10/1987	1
90099-33299	SV2#,VZV21 *H,L=280,NO.1	02/1988 - 08/1988	1
90446-06013	SV2# *H,L=125,NO.2	08/1988 - 04/1989	1
90099-33299	SV2# *H,L=280,NO.1	08/1988 - 04/1989	1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33382	SV2#	10/1987 - 02/1988	1
90446-06013	SV2#,VZV21 *H,L=125,NO.2	02/1988 - 08/1988	1
90099-33382	SV2# *H,L=1170	11/1986 - 10/1987	1
90099-33299	SV2#,VZV21 *H,L=280,NO.1	02/1988 - 08/1988	1
90446-06013	SV2# *H,L=125,NO.2	08/1988 - 04/1989	1
90099-33299	SV2# *H,L=280,NO.1	08/1988 - 04/1989	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33299	SV2#,VZV21 *H,L=615	10/1987 - 08/1988	1
90099-33299	SV2# *H,L=615	11/1986 - 10/1987	1
90099-33299	SV2# *H,L=615	08/1988 - 04/1989	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299	SV2# *H,L=530,NO.1,NO.2	11/1986 - 10/1987	1
90099-33299	SV2# *H,L=30,NO.1,NO.2	08/1988 - 04/1989	1
90099-33299	SV2#,VZV21 L=1000,NO.1,NO.2	10/1987 - 08/1988	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299	SV2# *H,L=530,NO.1,NO.2	11/1986 - 10/1987	1
90099-33299	SV2# *H,L=30,NO.1,NO.2	08/1988 - 04/1989	1
90099-33299	SV2#,VZV21 L=1000,NO.1,NO.2	10/1987 - 08/1988	1
Common parts
16581-63030
90099-04301
90099-04987
90119-06110
90179-06026
90464-00300
90464-00308
91655-40616

SV21RG-UWMDKQ (1986)

(8611- )

(8808- )

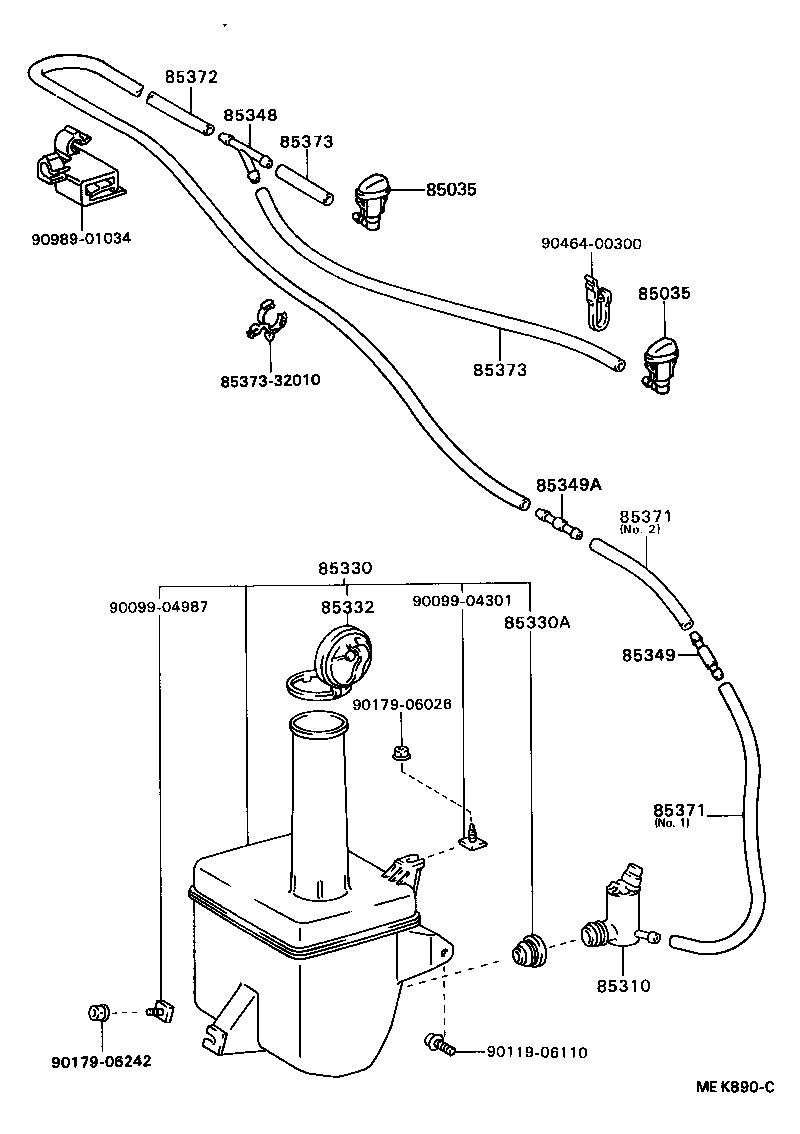

Part Price Details

Part #	Description	Period	Qty	Price
Common parts
85373-32010
90099-04301
90099-04987
90119-06110
90179-06026
90179-06242
90464-00300
90989-01034
