SV21RG-UWMDKQ (1986)

Toyota Camry

Production Nov 1986 - Apr 1989
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

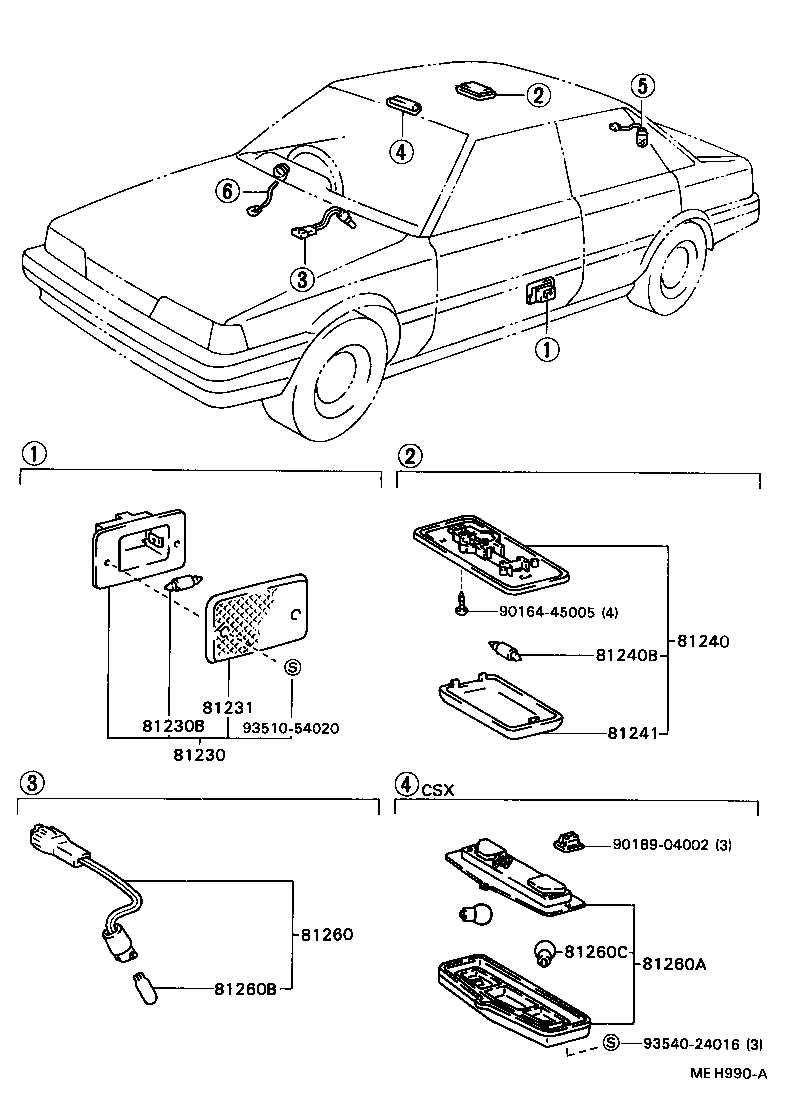

ILLUST NO. 1 OF 2(8611- )

Click highlighted areas on diagram

diagram 81230 81230B 81231 81240 81240B 81241 81260 81260A 81260B 81260C 9016445005 9018904002 9351054020 9354024016
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-2208135

SV2#,VZV21

DARK BEIGE,TRIM4#

 1
81240-2208123

SV2#

GRAY,GRAY

 1
81240-2208123

SV2#,VZV21

GRAY,TRIM1#,8#

 1
81240-2208116

SV2#

BROWN,BROWN

 1
81240-2208123

SV2#

GRAY,GRAY,TRIM1#,8#

 1
81240-2208135

SV2#

DARK BEIGE,DARK BEIGE,TRIM4#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

SV2#

12V 10W,12V 10W

 1
99132-12100

SV2#,VZV21

12V 10W

 1
99132-12100

SV2#

12V 10W,12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-20060

SV2#,VZV21

 1
81241-20060

SV2#

 1
Common parts
90164-45005
90189-04002
93510-54020
93540-24016

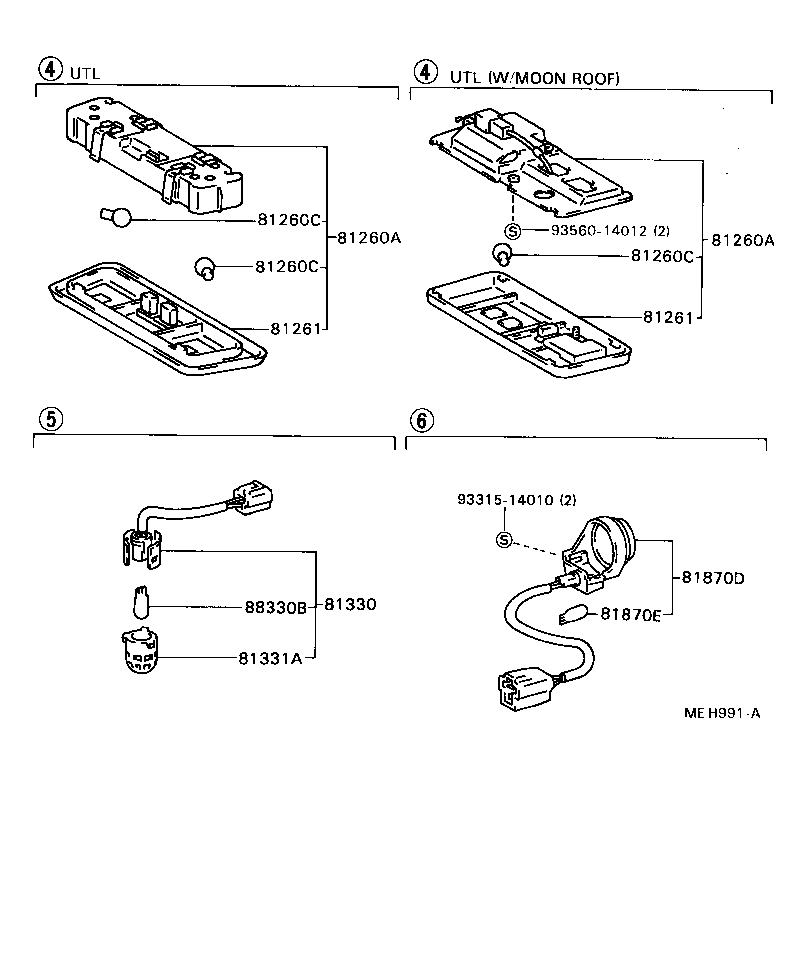

ILLUST NO. 2 OF 2(8611- )

Click highlighted areas on diagram

diagram 81260A 81260A 81260C 81260C 81260C 81261 81261 81330 81331A 81870D 81870E 88330B 9331514010 9356014012
Part # Description Qty Price
Common parts
93315-14010
93560-14012

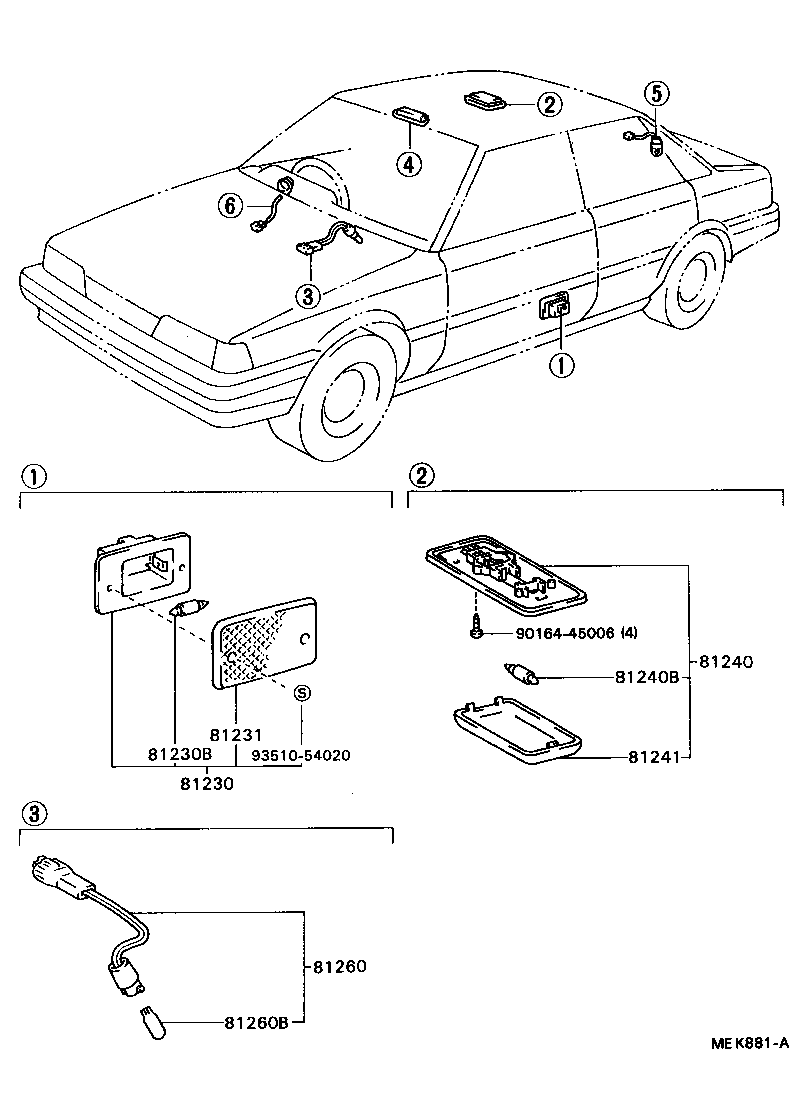

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 81230 81230B 81231 81240 81240B 81241 81260 81260B 9016445006 9351054020
Part # Description Qty Price
Common parts
90164-45006
93510-54020

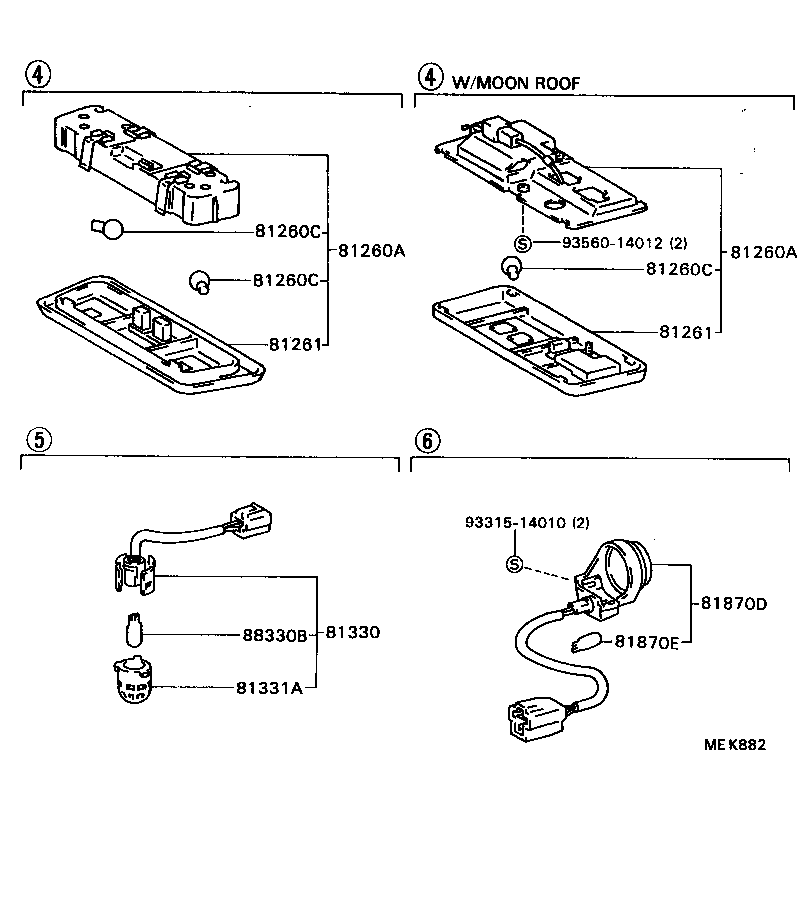

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 81260A 81260A 81260C 81260C 81260C 81261 81261 81330 81331A 81870D 81870E 88330B 9331514010 9356014012
Part # Description Qty Price
Common parts
93315-14010
93560-14012
