SV21RG-UWMDKQ (1986)
Toyota Camry
Production
Nov 1986
-
Apr 1989
Engine
3SFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

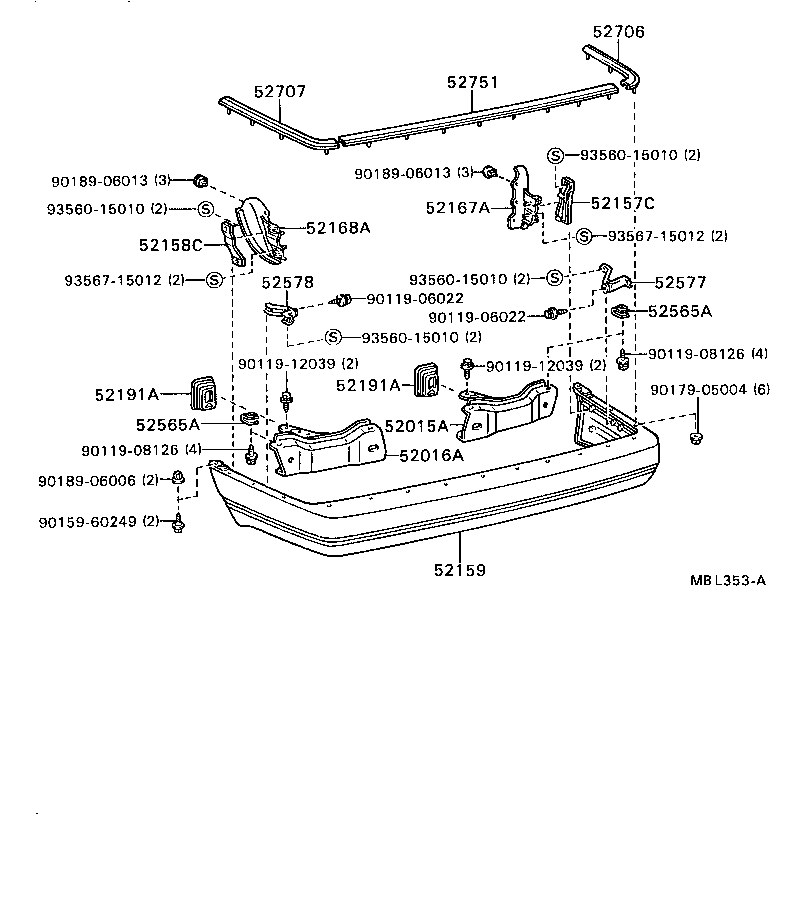

(8611- )WG
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-32090 |
SV2#..WG |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-32020 |
SV2#..WG |
1 | ||
| 52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH | ||||
| 52157-32070 |
SV2#..WG |
1 | ||
| 52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-32050 |
SV2#..WG |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-32200 |
SV2#..WG..(CS,S) |
1 | ||
| 52167A - SUPPORT, REAR BUMPER SIDE, NO.4 RH | ||||
| 52167-32030 |
SV2#..WG |
1 | ||
| 52168A - SUPPORT, REAR BUMPER SIDE, NO.4 LH | ||||
| 52168-32030 |
SV2#..WG |
1 | ||
| 52191A - SEAL, REAR BUMPER ARM | ||||
| 52191-32010 |
SV2#..WG |
2 | ||
| 52191A - SEAL, REAR BUMPER ARM | ||||
| 52191-32010 |
SV2#..WG |
2 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-12040 |
SV21..WG..(CS,S) |
8 | ||
| 52565-12040 |
SV2# |
8 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-12040 |
SV21..WG..(CS,S) |
8 | ||
| 52565-12040 |
SV2# |
8 | ||
| 52577 - RETAINER, REAR BUMPER SIDE, NO.2 RH | ||||
| 52577-32040 |
SV2# |
1 | ||
| 52578 - RETAINER, REAR BUMPER SIDE, NO.2 LH | ||||
| 52578-32040 |
SV2# |
1 | ||
| 52706 - MOULDING SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52706-32040 |
SV2# |
1 | ||
| 52707 - MOULDING SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52707-32040 |
SV2# |
1 | ||
| 52751 - MOULDING, REAR BUMPER | ||||
| 52751-32040 |
SV2# |
1 | ||
| Common parts | ||||
| 90119-06022 | ||||
| 90119-08126 | ||||
| 90119-12039 | ||||
| 90159-60249 | ||||
| 90179-05004 | ||||
| 90189-06006 | ||||
| 90189-06013 | ||||
| 93560-15010 | ||||
| 93567-15012 | ||||

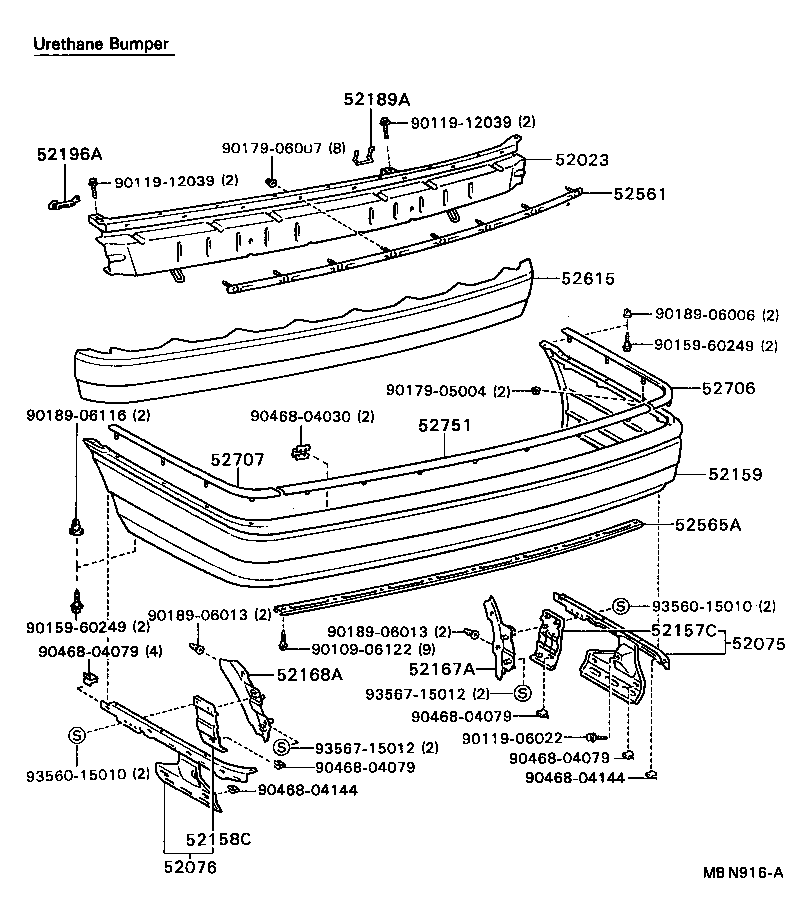

(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06122 | ||||
| 90119-06022 | ||||
| 90119-12039 | ||||
| 90159-60249 | ||||
| 90179-05004 | ||||
| 90179-06007 | ||||
| 90189-06006 | ||||
| 90189-06013 | ||||
| 90189-06116 | ||||
| 90468-04030 | ||||
| 90468-04079 | ||||
| 90468-04144 | ||||
| 93560-15010 | ||||
| 93567-15012 | ||||
