SV21R-UEPEKQ (1986)

Toyota Camry

Production Nov 1986 - Apr 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

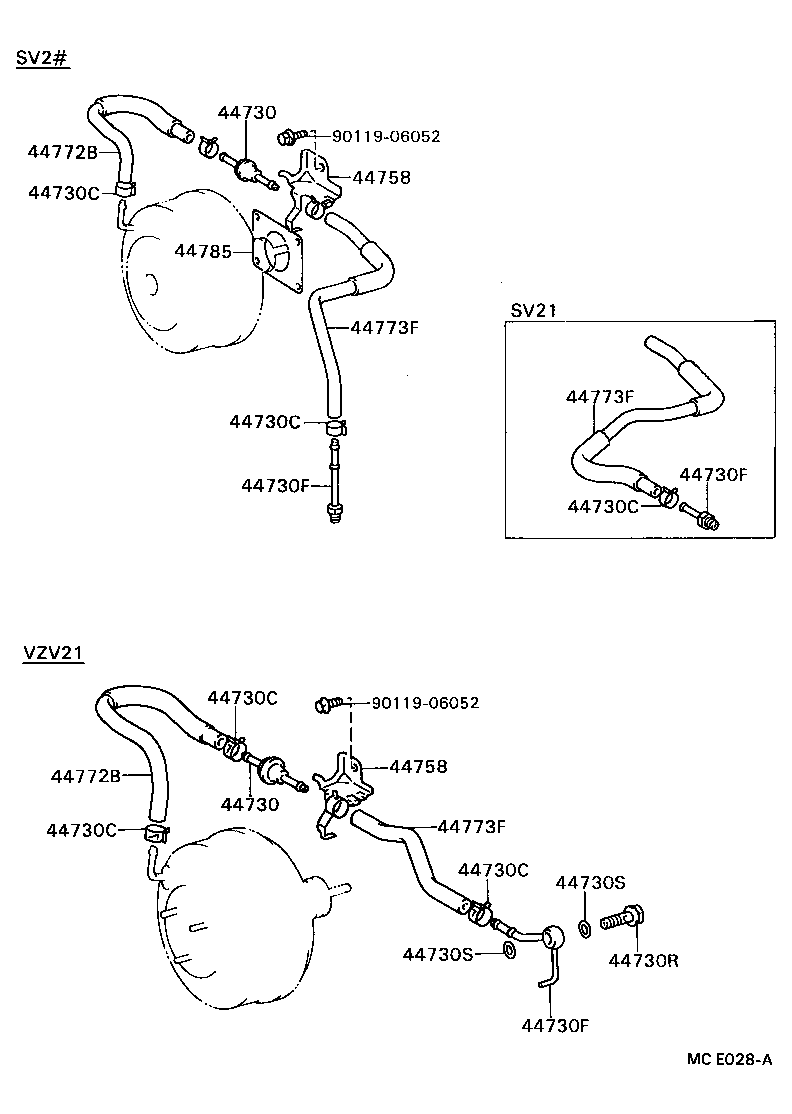

ILLUST NO. 1 OF 2(8611- )

Click highlighted areas on diagram

diagram 44730 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730F 44730F 44730F 44730R 44730S 44730S 44758 44758 44772B 44772B 44773F 44773F 44773F 44785 9011906052 9011906052
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

SV2#,VZV21

 1
44730-10010

SV2#

 1
44730-10010

SV2#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

SV2#,VZV21

 1
44730-10010

SV2#

 1
44730-10010

SV2#

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

SV2#

 3
90467-16002

SV2#

 1
90467-16002

SV2#,VZV21

 3
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

SV2#

 3
90467-16002

SV2#

 1
90467-16002

SV2#,VZV21

 3
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

SV2#

 3
90467-16002

SV2#

 1
90467-16002

SV2#,VZV21

 3
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

SV2#

 3
90467-16002

SV2#

 1
90467-16002

SV2#,VZV21

 3
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

SV2#

 3
90467-16002

SV2#

 1
90467-16002

SV2#,VZV21

 3
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

SV2#

 3
90467-16002

SV2#

 1
90467-16002

SV2#,VZV21

 3
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

SV21

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

SV21

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

SV21

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-20141

SV2#,VZV21

 1
44758-20141

SV2#

 1
44758-20141

SV2#

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-20141

SV2#,VZV21

 1
44758-20141

SV2#

 1
44758-20141

SV2#

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-32060

SV2#

 1
44772-32060

SV2#,VZV21

 1
44772-32060

SV2#

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-32060

SV2#

 1
44772-32060

SV2#,VZV21

 1
44772-32060

SV2#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-32070

SV21

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-32070

SV21

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-32070

SV21

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

SV2#,VZV21

 1
44785-32010

SV2#

 1
44785-32010

SV2#

 1
Common parts
90119-06052

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 04443 44608 44610 44618 44626A 44629 44642 44643 44663 44666 44785 9017908038
Part # Description Qty Price
44785 - GASKET, BRAKE BOOSTER
44785-32010

SV2#,VZV21

 1
44785-32010

SV2#

 1
44785-32010

SV2#

 1
Common parts
90179-08038

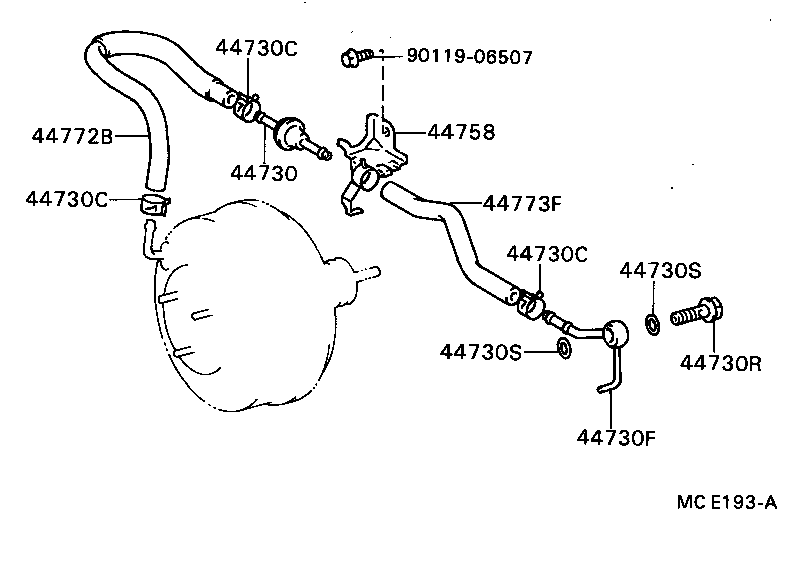

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 44730 44730C 44730C 44730C 44730F 44730R 44730S 44730S 44758 44772B 44773F 9011906507
Part # Description Qty Price
Common parts
90119-06507
