SV21R-UEPDKQ (1986)

Toyota Camry

Production Nov 1986 - Apr 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8611- )SV2#

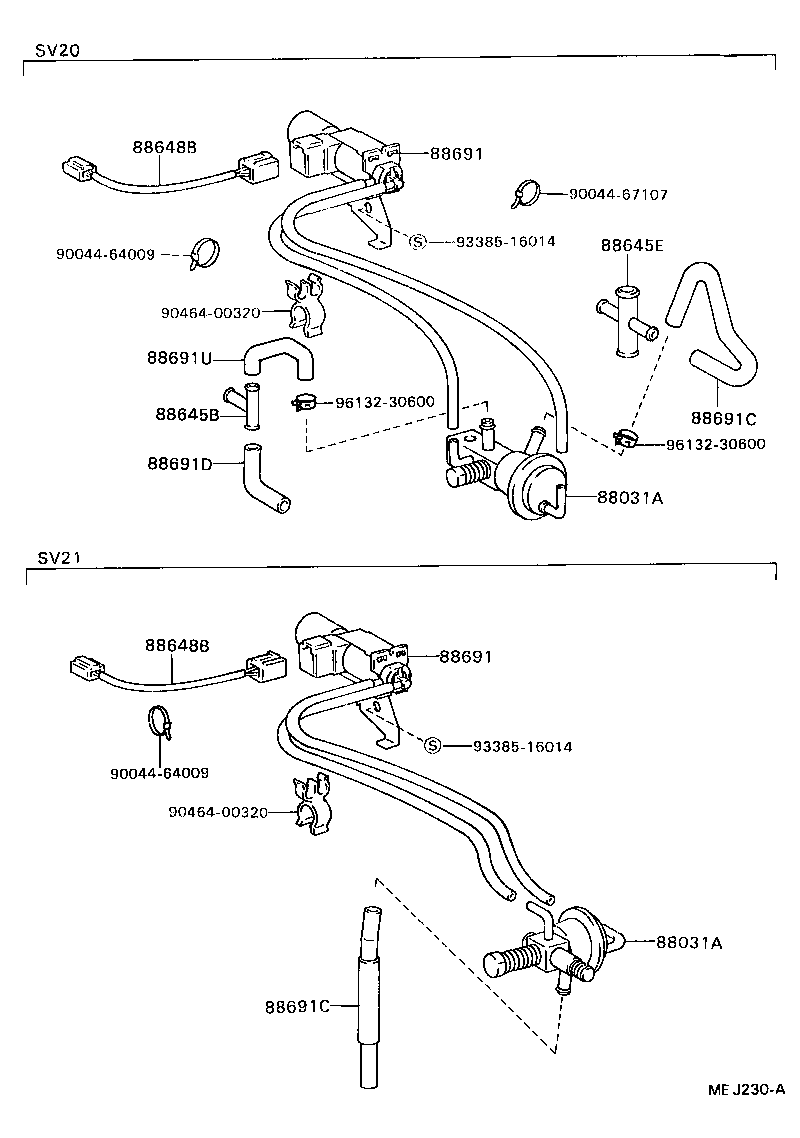

Click highlighted areas on diagram

diagram 88031A 88031A 88645B 88645E 88648B 88648B 88691 88691 88691C 88691C 88691D 88691U 9004464009 9004464009 9004467107 9046400320 9046400320 9338516014 9338516014 9613230600 9613230600
Part # Description Qty Price
88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
88606-32010

SV21

 1
88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
88606-32010

SV21

 1
88648B - WIRING, COOLER, NO.1
88648-32070

SV2#

 1
88648B - WIRING, COOLER, NO.1
88648-32070

SV2#

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-32310

SV21

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-32310

SV21

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
88689-32050

SV21

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
88689-32050

SV21

 1
Common parts
90044-64009
90044-67107
90464-00320
93385-16014
96132-30600
