SV21R-UEPDKQ (1986)

Toyota Camry

Production Nov 1986 - Apr 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

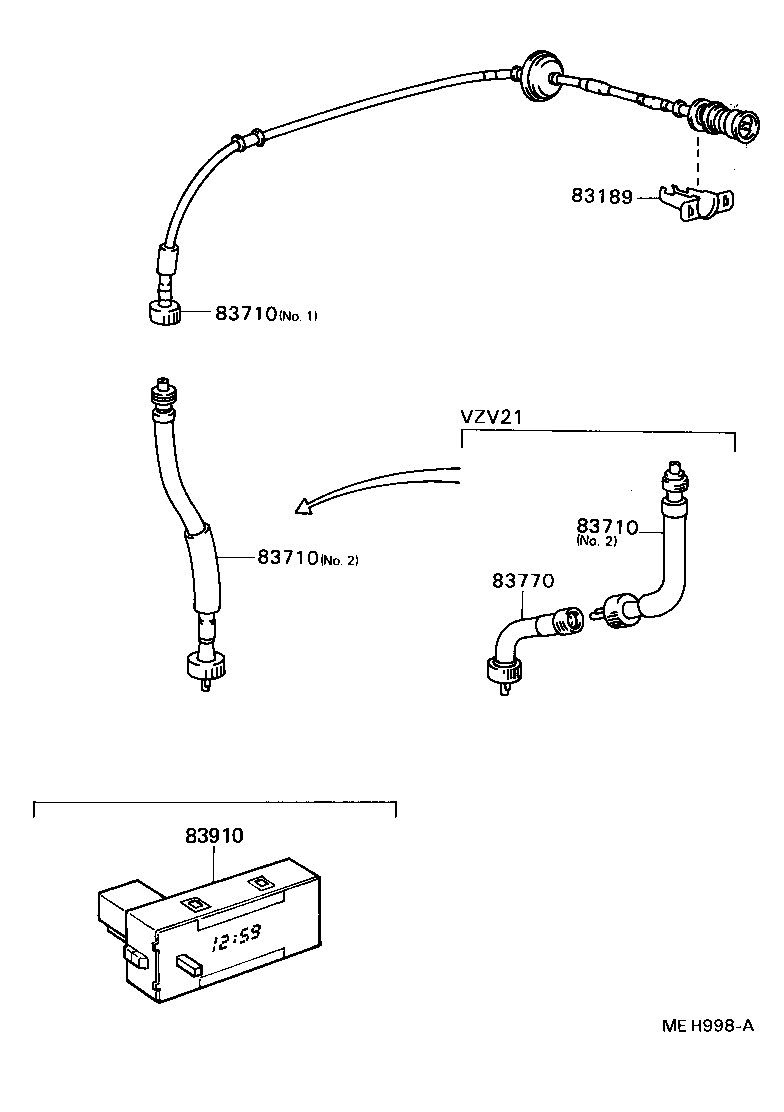

ILLUST NO. 3 OF 3(8611- )

Click highlighted areas on diagram

diagram 83189 83710 83710 83710 83770 83910
Part # Description Qty Price
83189 - BRACKET, METER
83189-20020

SV2#,VZV21

 1
83189-20020

SV2#

 1
83189-20020

SV2#

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-32110

SV2#

NO.1

 1
83710-32130

SV2#

NO.2

 1
83710-32110

SV2#

NO.1

 1
83710-32110

SV2#,VZV21

NO.1

 1
83710-32130

SV2#

NO.2

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-32110

SV2#

NO.1

 1
83710-32130

SV2#

NO.2

 1
83710-32110

SV2#

NO.1

 1
83710-32110

SV2#,VZV21

NO.1

 1
83710-32130

SV2#

NO.2

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-32110

SV2#

NO.1

 1
83710-32130

SV2#

NO.2

 1
83710-32110

SV2#

NO.1

 1
83710-32110

SV2#,VZV21

NO.1

 1
83710-32130

SV2#

NO.2

 1
83910 - CLOCK ASSY
83910-32060

SV2#,VZV21..CS,CSX,ULT

 1
83910-32060

SV2#..CS,CSX

 1
83910-32060

SV2#..CS,CSX

 1

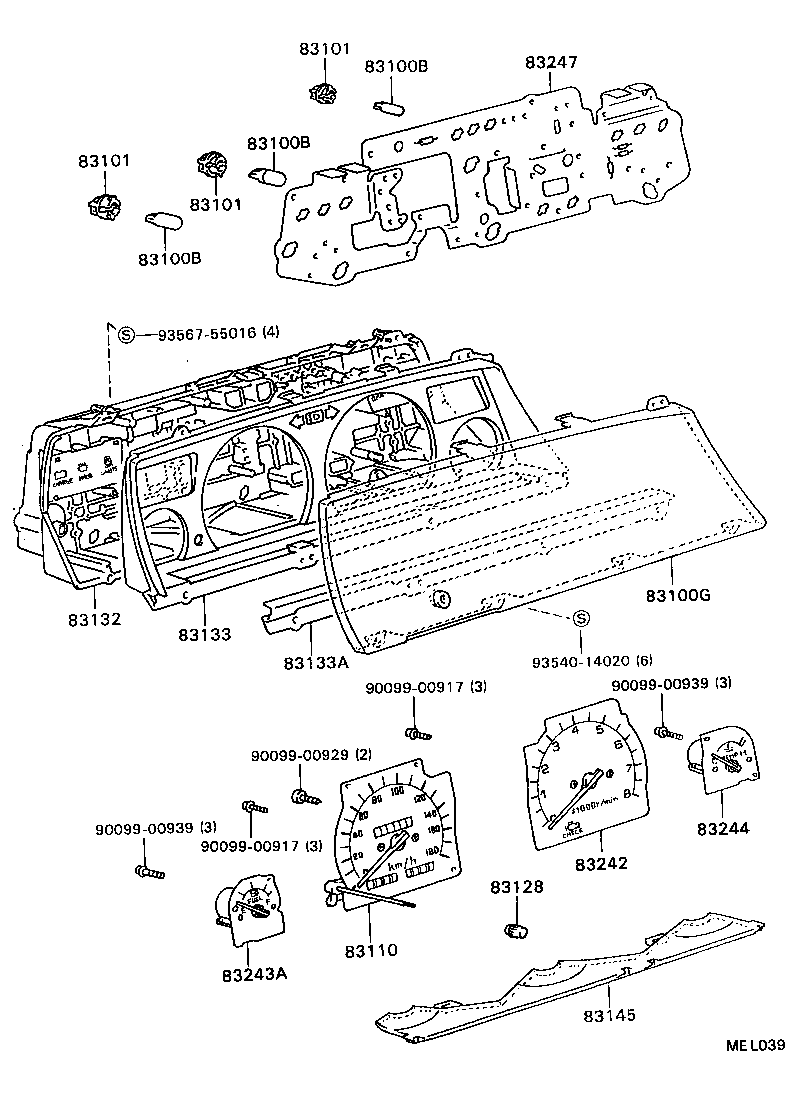

ILLUST NO. 1 OF 3(8808- )

Click highlighted areas on diagram

ANALOG

diagram 83100B 83100B 83100B 83100G 83101 83101 83101 83110 83128 83132 83133 83133A 83145 83242 83243A 83244 83247 9009900917 9009900917 9009900929 9009900939 9009900939 9354014020 9356755016
Part # Description Qty Price
Common parts
90099-00917
90099-00929
90099-00939
93540-14020
93567-55016

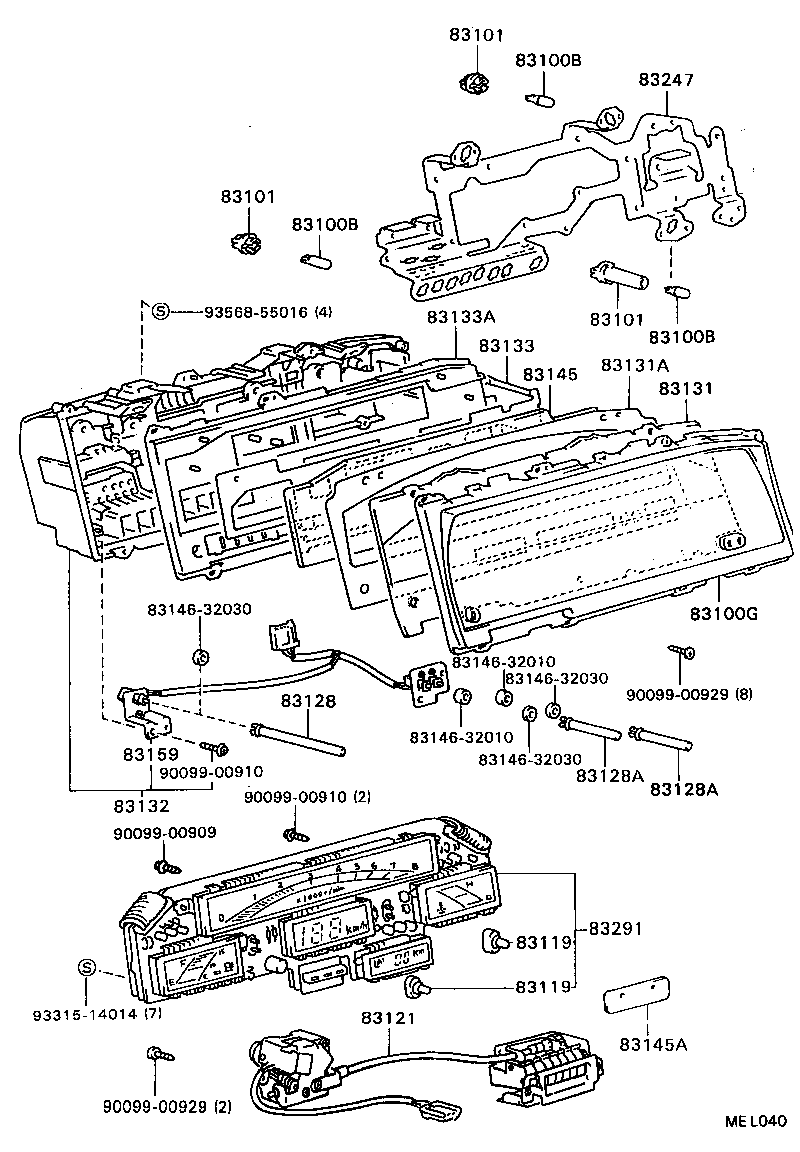

ILLUST NO. 1 OF 3(8808- )

Click highlighted areas on diagram

DIGITAL

diagram 83100B 83100B 83100B 83100G 83101 83101 83101 83119 83119 83121 83128 83128A 83128A 83131 83131A 83132 83133 83133A 83145 83145A 8314632010 8314632010 8314632030 8314632030 8314632030 83159 83247 83291 9009900909 9009900910 9009900910 9009900929 9009900929 9331514014 9356855016
Part # Description Qty Price
Common parts
83146-32010
83146-32030
90099-00909
90099-00910
90099-00929
93315-14014
93568-55016

ILLUST NO. 3 OF 3(8808- )

Click highlighted areas on diagram

diagram 83189 83710 83710A 83770 83910
Part # Description Qty Price

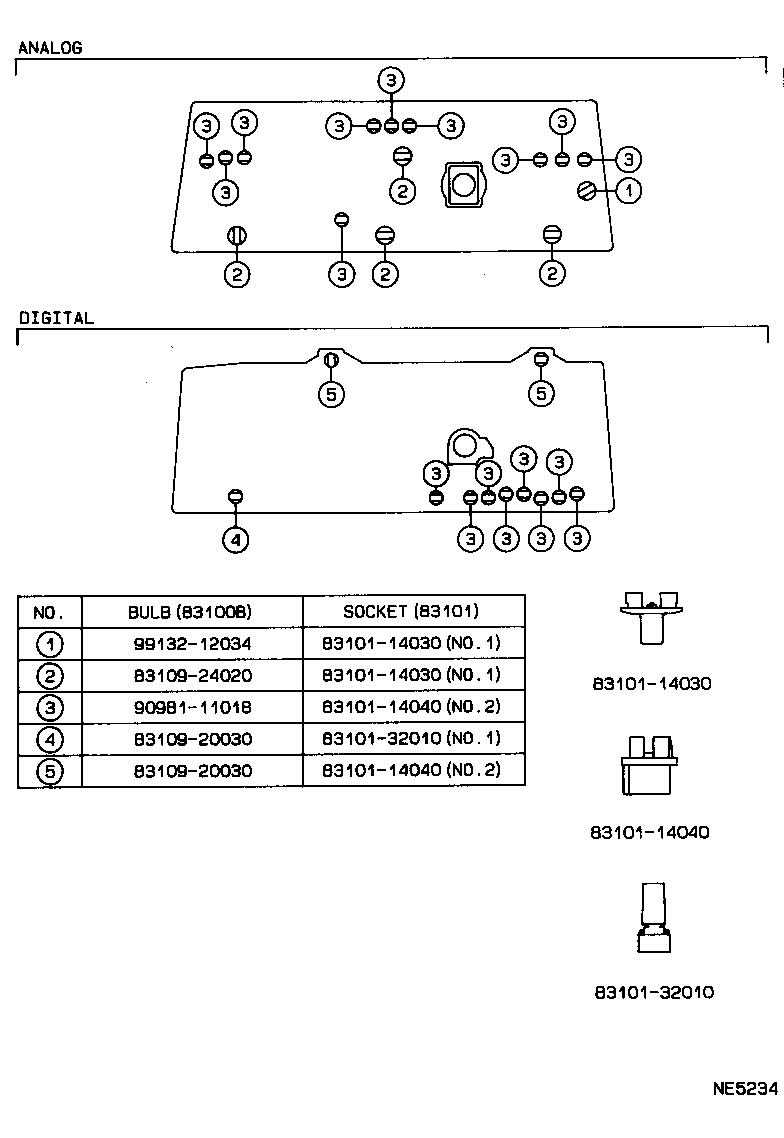

ILLUST NO. 2 OF 3(8808- )

Click highlighted areas on diagram

SOCKET & BULB

diagram 83100B 83101 8310114030 8310114030 8310114030 8310114040 8310114040 8310114040 8310132010 8310132010 8310920030 8310920030 8310924020 9098111018 9913212034
Part # Description Qty Price
Common parts
83101-14030
83101-14040
83101-32010
83109-20030
83109-24020
90981-11018
99132-12034
