SV21R-UEPDKQ (1986)
2211 - FUEL INJECTION SYSTEM

SV21R-UEPDKQ (1986)

Toyota Camry

Production Nov 1986 - Apr 1989

Engine 3SFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

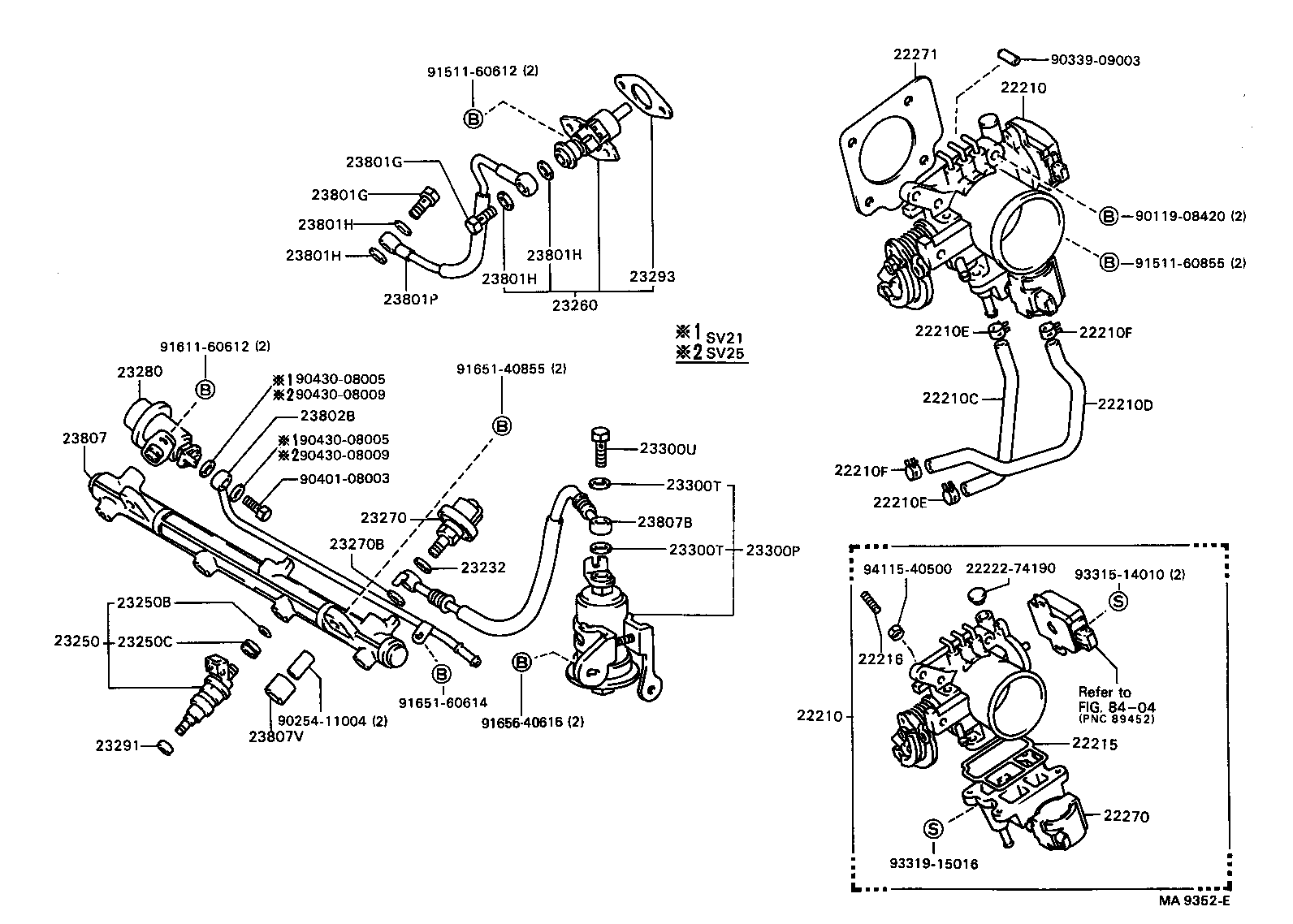

ILLUST NO. 1 OF 3(8611- )3SFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
22210 - BODY ASSY, THROTTLE
22210-74220	3SFE..SV21	11/1986 - 08/1987	1
22210-74220	3SFE..SV21..4FC	08/1987 - 04/1989	1
22210 - BODY ASSY, THROTTLE
22210-74220	3SFE..SV21	11/1986 - 08/1987	1
22210-74220	3SFE..SV21..4FC	08/1987 - 04/1989	1
22210C - HOSE, WATER BY-PASS, NO.1
99556-10280	3SFE..SV21 *H,L=280	11/1986 - 12/1987	1
16282-74030	3SFE..SV21	12/1987 - 04/1989	1
22210D - HOSE, WATER BY-PASS, NO.2
99556-10230	3SFE..SV21 *H,L=230	11/1986 - 12/1987	1
16282-74020	3SFE..SV21	12/1987 - 04/1989	1
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13001	1SI,3SFE..SV2#	11/1986 - 10/1987	2
90467-13001	1SI,3SFE..SV2#	10/1987 - 08/1988	2
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13001	1SI,3SFE..SV2#	11/1986 - 10/1987	2
90467-13001	1SI,3SFE..SV2#	10/1987 - 08/1988	2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13001	1SI,3SFE..SV2#	11/1986 - 10/1987	2
90467-13001	1SI,3SFE..SV2#	10/1987 - 08/1988	2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13001	1SI,3SFE..SV2#	11/1986 - 10/1987	2
90467-13001	1SI,3SFE..SV2#	10/1987 - 08/1988	2
22215 - GASKET, THROTTLE BODY COVER
22215-74210	3SFE..SV21	11/1986 - 04/1989	1
22216 - SCREW, DASH POT ADJUSTING
22216-74010	1SI,3SFE..SV2#	10/1987 - 04/1989	1
22216-74010	1SI,3SFE..SV2#	11/1986 - 10/1987	1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-74010	3SFE..SV21	11/1986 - 08/1987	1
22270-74010	3SFE..SV21..4FC	08/1987 - 04/1989	1
22271 - GASKET, THROTTLE BODY
22271-74020	3SFE..SV21	11/1986 - 10/1987	1
23232 - GASKET(FOR FUEL PUMP HOSE)
23232-28010	3SFE..SV21	11/1986 - 10/1987	1
23232-28010	3SFE..SV21	10/1987 - 08/1988	1
23250 - INJECTOR ASSY, FUEL
23209-74030	3SFE..SV21	11/1986 - 08/1987	4
23209-74060	3SFE..SV21	08/1987 - 04/1989	4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001	3SFE..SV21	11/1986 - 04/1989	4
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005	3SFE..SV21	11/1986 - 04/1989	4
23260 - INJECTOR ASSY, COLD START FUEL
23260-79105	3SFE..SV21	11/1986 - 04/1989	1
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23207-74010	3SFE..SV21	11/1986 - 04/1989	1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
90430-12005	3SFE..SV21	11/1986 - 04/1989	1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-74030	3SFE..SV21	11/1986 - 08/1987	1
23280-74031	3SFE..SV21	08/1987 - 04/1989	1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010	3SFE..SV21	11/1986 - 04/1989	4
23293 - GASKET, COLD START INJECTOR
23293-74010	1SI,3SFE..SV2#	10/1987 - 04/1989	1
23293-74010	1SI,3SFE..SV2#	11/1986 - 10/1987	1
23300P - FILTER, FUEL(FOR EFI)
23030-79025	1SI,3SFE..SV2#	10/1987 - 08/1988	1
23030-79025	1SI,3SFE..SV2#	11/1986 - 10/1987	1
23030-79025	1SI,3SFE..SV2#	08/1988 - 04/1989	1
23300T - GASKET(FOR FUEL FILTER)
90430-12005	1SI,3SFE..SV2#	11/1986 - 10/1987	2
90430-12005	1SI,3SFE..SV2#	10/1987 - 08/1988	2
90430-12005	1SI,3SFE..SV2#	08/1988 - 04/1989	2
23300T - GASKET(FOR FUEL FILTER)
90430-12005	1SI,3SFE..SV2#	11/1986 - 10/1987	2
90430-12005	1SI,3SFE..SV2#	10/1987 - 08/1988	2
90430-12005	1SI,3SFE..SV2#	08/1988 - 04/1989	2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097	1SI,3SFE..SV2#	11/1986 - 10/1987	1
90401-12097	1SI,3SFE..SV2#	08/1988 - 04/1989	1
90401-12097	1SI,3SFE..SV2#	10/1987 - 08/1988	1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-08004	3SFE..SV21	11/1986 - 04/1987	2
90401-08003	3SFE..SV21	04/1987 - 04/1989	2
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-08004	3SFE..SV21	11/1986 - 04/1987	2
90401-08003	3SFE..SV21	04/1987 - 04/1989	2
23801H - GASKET(FOR FUEL PIPE)
90430-08005	3SFE..SV21	11/1986 - 04/1989	4
23801H - GASKET(FOR FUEL PIPE)
90430-08005	3SFE..SV21	11/1986 - 04/1989	4
23801H - GASKET(FOR FUEL PIPE)
90430-08005	3SFE..SV21	11/1986 - 04/1989	4
23801H - GASKET(FOR FUEL PIPE)
90430-08005	3SFE..SV21	11/1986 - 04/1989	4
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-74021	3SFE..SV21	11/1986 - 04/1989	1
23802B - PIPE SUB-ASSY, FUEL, NO.2
23802-74020	3SFE..SV21	11/1986 - 08/1987	1
23802-74021	3SFE..SV21	08/1987 - 04/1989	1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-74030	3SFE..SV21	11/1986 - 04/1989	1
23807B - HOSE, FUEL DELIVERY PIPE
23271-74091	3SFE..SV21	03/1989 - 04/1989	1
23271-74090	3SFE..SV21	11/1986 - 03/1989	1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90560-11020	3SFE..SV21	11/1986 - 04/1989	2
Common parts
22222-74190
90119-08420
90254-11004
90339-09003
90401-08003
90430-08005
90430-08009
91511-60612
91511-60855
91611-60612
91651-40855
91651-60614
91656-40616
93315-14010
93319-15016
94115-40500
Linked diagrams
8404

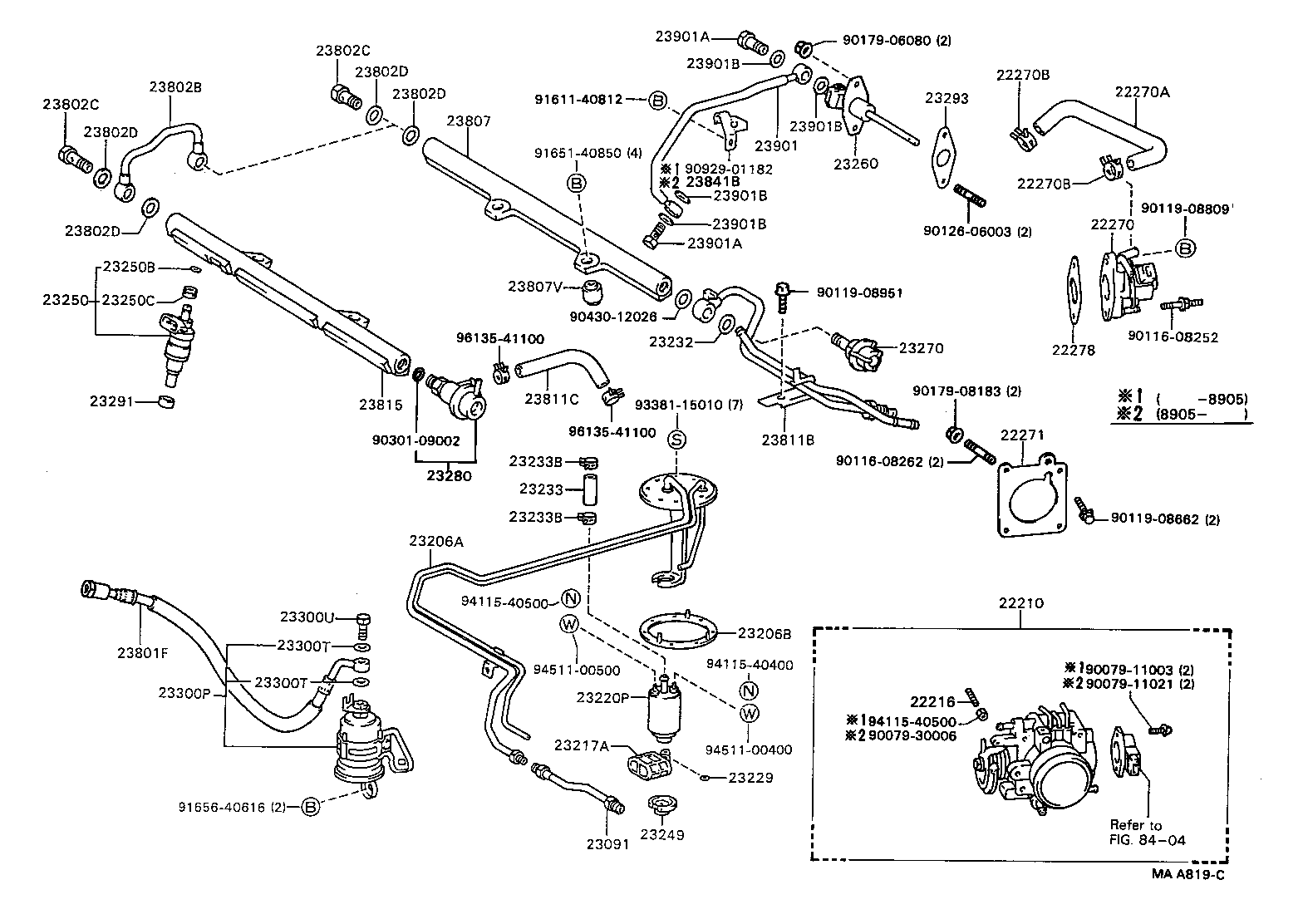

ILLUST NO. 3 OF 3(8611- )1SI,3SFE
