SV21R-UEPDKQ (1986)
Toyota Camry
Production
Nov 1986
-
Apr 1989
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8611- )3SFE

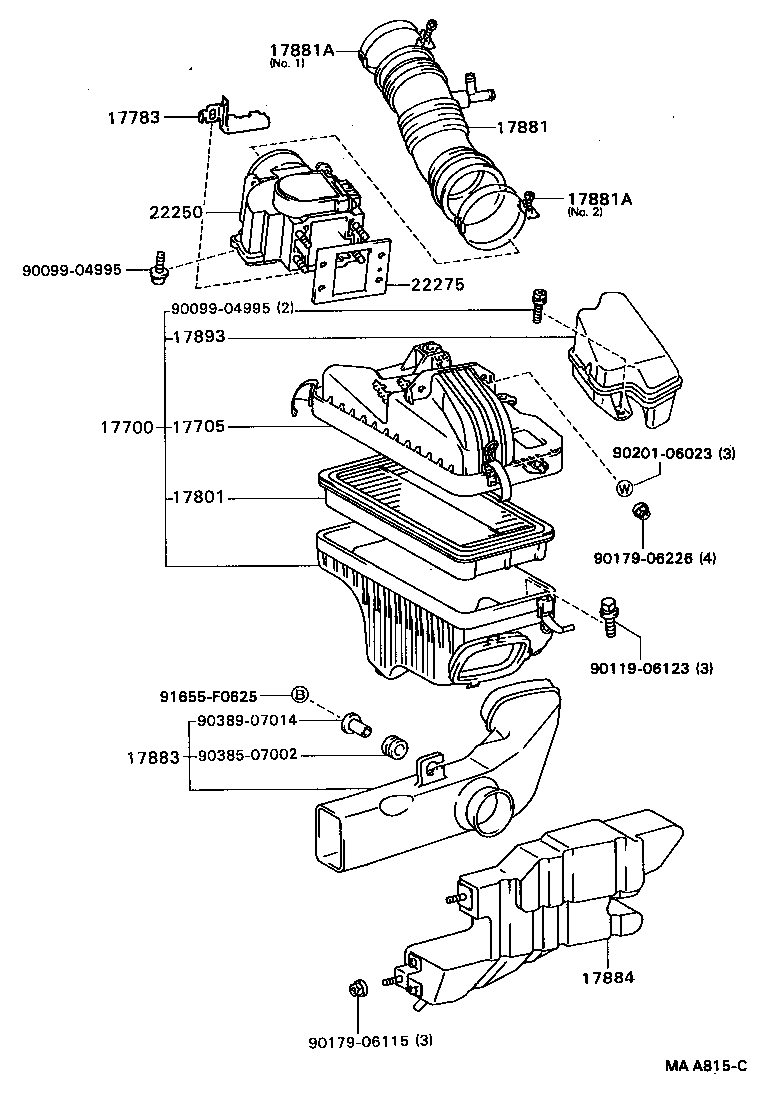

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-74100 |
3SFE..SV21 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-74070 |
3SFE..SV21 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-74010 |
1SI,3SFE..SV2# |
1 | ||
| 17801-74010 |
1SI,3SFE..SV2# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-74110 |
3SFE..SV21 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10730 |
3SFE..SV21 HOSE SIDE |
1 | ||
| 96111-10750 |
3SFE..SV21 THROTTLE BODY SIDE |
1 | ||
| 96111-10730 |
3SFE..SV21 HOSE SIDE |
1 | ||
| 96111-10750 |
3SFE..SV21 THROTTLE BODY SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10730 |
3SFE..SV21 HOSE SIDE |
1 | ||
| 96111-10750 |
3SFE..SV21 THROTTLE BODY SIDE |
1 | ||
| 96111-10730 |
3SFE..SV21 HOSE SIDE |
1 | ||
| 96111-10750 |
3SFE..SV21 THROTTLE BODY SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-74040 |
3SFE..SV21 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
3SFE..SV21 |
1 | ||
| 96111-10800 |
3SFE..SV21 AIR FLOW METER SIDE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17882-63110 |
1SI,3SFE..SV2# |
1 | ||
| 17882-63110 |
1SI,3SFE..SV2# |
1 | ||
| 17882-63110 |
1SI,3SFE..SV2# |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17882-63110 |
1SI,3SFE..SV2# |
1 | ||
| 17882-63110 |
1SI,3SFE..SV2# |
1 | ||
| 17882-63110 |
1SI,3SFE..SV2# |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-01046 |
1SI,3SFE..SV2# |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17883-63030 |
1SI,3SFE..SV2# |
1 | ||
| 17883-63030 |
1SI,3SFE..SV2# |
1 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-74140 |
3SFE..SV21 |
1 | ||
| 22275 - GASKET, AIR FLOW METER | ||||
| 22275-41010 |
3SFE..SV21 |
1 | ||
| Common parts | ||||
| 90119-06042 | ||||
| 90119-06123 | ||||
| 90179-06115 | ||||
| 90179-06158 | ||||
| 90385-07002 | ||||
| 90389-07014 | ||||
| 91655-40616 | ||||
| 91655-40625 | ||||
| 94612-10601 | ||||
(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-04995 | ||||
| 90119-06123 | ||||
| 90179-06115 | ||||
| 90179-06226 | ||||
| 90201-06023 | ||||
| 90385-07002 | ||||
| 90389-07014 | ||||
| 91655-F0625 | ||||
